Standard-sized SensorsZ4 Series
Easy integration in application with Field network and IO-Link
- IO-Link connection supported

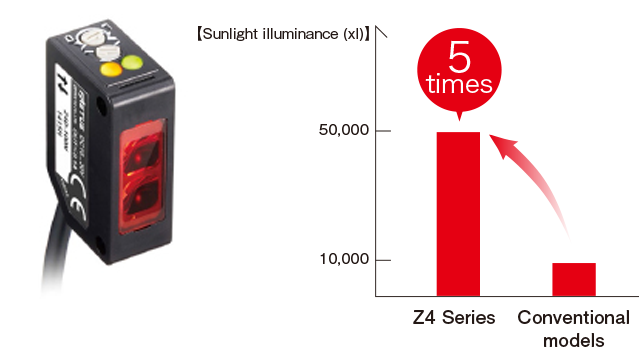

- Enhanced ambient illuminance resistance against sunlight, incandescent and LED lights
- Brighter status indicators for remote status monitoring
Lineup
| Optical system | Sensing range | Model | ||
|---|---|---|---|---|
| NPN type | PNP type | |||
| Through-beam |  |
 |
Z4T-2500N
Z4T-2500CN4 |
Z4T-2500P
Z4T-2500CP4 |
| Retro reflective |  |
 |
Z4R-400N
Z4R-400CN4 |
Z4R-400P
Z4R-400CP4 |
| Diffuse reflective |  |
 |
Z4D-100N Z4D-100CN4 |
Z4D-100P (Z4D-100CP4 |
| Limited diffuse reflective |
 |
 |
Z4D-L09N
Z4D-L09CN4 |
Z4D-L09P
Z4D-L09CP4 |
Specifications
| Through-beam | Retro reflective | Diffuse reflective | Limited diffuse reflective | |||
|---|---|---|---|---|---|---|
| Model | NPN | Cable type | Z4T-2500N | Z4R-400N | Z4D-100N | Z4D-L09N |
| M8 connector type | Z4T-2500CN4 | Z4R-400CN4 | Z4D-100CN4 | Z4D-L09CN4 | ||
| PNP | Cable type | Z4T-2500P | Z4R-400P | Z4D-100P | Z4D-L09P | |
| M8 connector type | Z4T-2500CP4 | Z4R-400CP4 | Z4D-100CP4 | Z4D-L09CP4 | ||

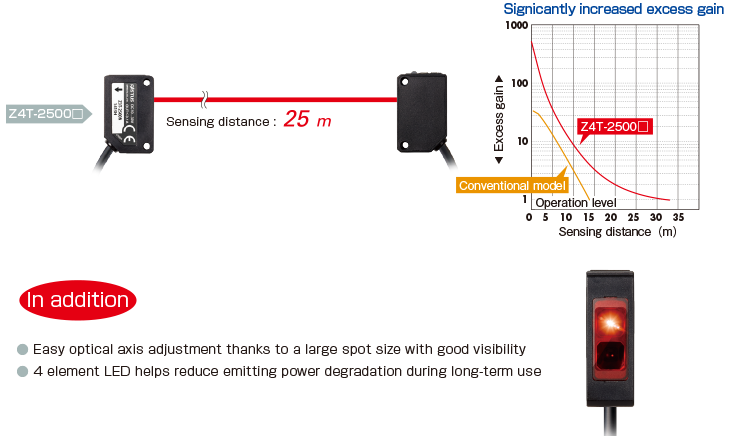

| Sensing distance | 25 m | 0.01 to 4 m*1 | 0 to 1 m*2 | 10 to 90 mm*3 | ||
| Light source | 4-element red LED, Wavelength: 632 nm | |||||
| Spot size | Approx. ø1800 mm （At distance of 25 m） |
Approx. ø280 mm （At distance of 4 m） |
Approx. ø75 mm （At distance of 1 m） |
Approx. ø8 mm （At distance of 90 mm） |
||
| Response time | 500 μs or less | 550 μs or less | ||||
| Hysteresis | - | - | 20 % Max. | 10 % Max. | ||
| Sensitivity adjustment | 1-turn potentiometer or via IO-Link network | |||||
| Indicators | Output indicator: Orange, Stability indicator: Green (No indicators equipped on through-beam type emitter) |
|||||
| Control output | NPN/PNP Open collector, Max. 100 mA / 30 VDC, Residual voltage 1.8 V Max. |
|||||
| Output mode | Light ON / Dark ON by selection switch or via IO-Link network | |||||
| IO-Link specification | Ver. 1.1, Transmission rate: COM 3 (230.4 kbps), Process data length: 2 bytes, Min. Cycle time: 0.5 ms |
|||||
| Timer function | ON delay / OFF delay /One-shot only via IO-Link network | |||||
| Cable connection | Cable: 2m, ø3.8 mm / Connector: M8 4-pin | |||||
| Protection circuit | Reverse connection protection, Overcurrent protection | |||||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||||
| Current consumption*4 |
Emitter: 14 mA or less Receiver: 20 mA or less |
20 mA or less | 20 mA or less | 20 mA or less | ||
| Applicable regulations |
EMC | EMC directive (2014/30/EU) | ||||
| RoHS | RoHS directive (2011/65/EU), China RoHS (Directive 32) | |||||
| Applicable standards | EN 60947-5-2 | |||||
| NRTL Certification | UL Recognized Components, Proximity Switch Certified for US and Canada | |||||
| Environmental resistance |
Ambient temperature | –25 to +55°C (No freezing) | ||||
| Ambient humidity | 35 to 85% RH (No condensation) | |||||
| Ambient illuminance | Sunlight: 50.000 lx or less, Incandescent lamp: 5,000 lx or less | |||||
| Vibration resistance | 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the XY and Z directions |
|||||
| Shock resistance | 1000 m/s2 (Approx. 100 G), 3 times in each of the XY and Z directions | |||||
| Protection category | IP67 | |||||
| Material | Housing: ABS, Front cover: PMMA | |||||
| Weight without cable | Approx. 10 g | |||||
| Included accessories | Instruction manual | |||||
*1. With the V-61 reflector.
*2. Using a 200 x 200 mm white sheet paper.
*3. Using a 100 x 100 mm white sheet paper.
*4. Not including control output load current.
