Fiber UnitLENS FOR THROUGH-BEAM Series
Lenses for through-beam type fiber units selectable from 6 models

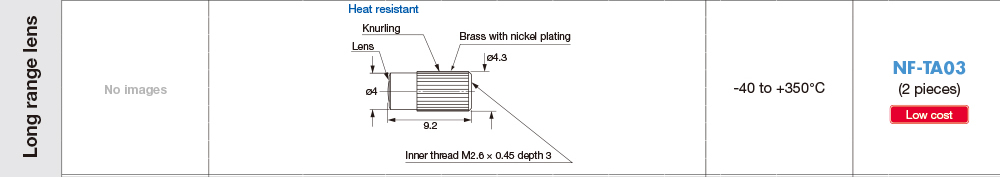

- Long distance lens for extending sensing distance
- Side-view lens for space saving

Lens for through-beam type fiber units (fiber amplifier: D3RF)
Click the image to enlarge.
Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
Lens for through-beam type fiber units (fiber amplifier: D2RF, BRF)
Click the image to enlarge.
Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
