IO-Link MasterUR Series

DOWNLOAD

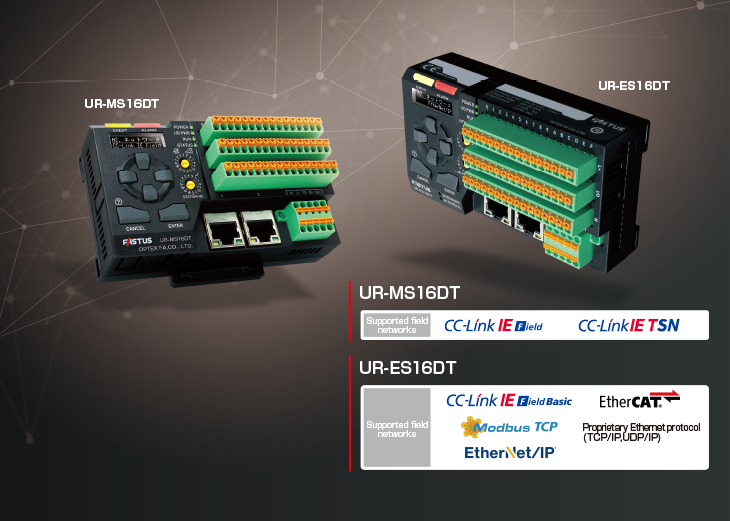

Highly functional IO-Link Master for various industrial Ethernet

  • First in industry* Mixed connection of digital Sink(NPN) / Source(PNP) I/O devices is realized with one unit
  • Largest no. in industry* 16 channels
  • Fastest in industry* Realized the minimum cycle time of 0.3 ms

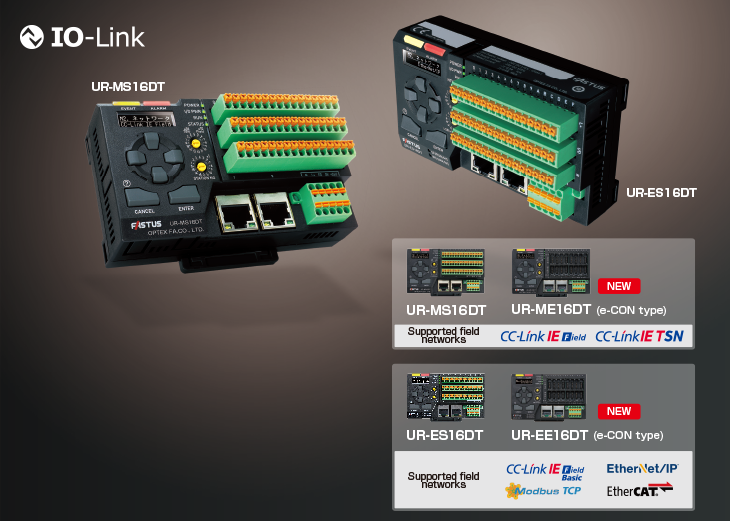

  • NEW MODELS

    e-CON type, UR-ME/EE16DT added to lineup
  • *Regarding IO-Link Master, surveyed by OPTEX FA in December, 2023.

UR Series

IO-Link Master


UR Series
First in industry FPGA-based IO-Link communication processing and unique design enable first in industry functions and performance.
The interface and compact body design give form to the true needs of the field.
The new standard IO-Link Master is now available.
  • First in industry*
    1. A single unit to connect digital Sink(NPN) and Source(PNP) I/O devices

A single unit to connect digital Sink(NPN) and Source(PNP) I/O devices.
Not only IO-Link devices, but also digital Sink(NPN) / Source(PNP) I/O devices can be connected together in one unit.

  • Largest no. in industry*
    1. 16 channels

Connects to more than twice as many I/O devices as standard IO-Link Master.
Save costs and space.

 Each channel can be utilized as a digital IO

  • Fastest in industry*

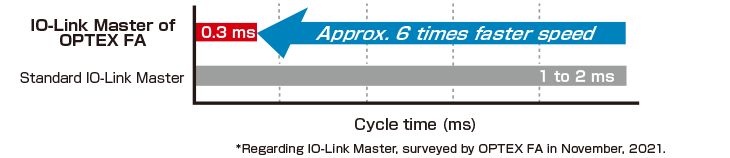

    1. Realized the minimum cycle time of 0.3 ms

The IO-Link minimum cycle time achieves the industry's fastest* high-speed response of 0.3 ms.
The response time issue of IO-Link communication has been resolved.

  • Smallest in class*
    1. Realization of palm size

Approx. 1/2 the size (W110 x D31.4 x H63 mm) of a standard IO-Link Master (8 channels).
In addition, the number of channels is doubled, which contributes to space saving in the equipment.

*In IO-Link Master with display and operation unit.
Surveyed by OPTEX FA in December, 2023.
  • Largest no. in industry*
    1. 10 languages supported

Ten languages can be easily selected in the system menu.
The global design allows for safe and reliable use even when equipment is moved overseas.

  • Shortcut function
    1. Automatic IODD download function
  • Using IO-Link Master and IO-Link devices of OPTEX FA eliminates the need to configure IODD files.

  • Largest no. in industry*
    1. Supports 7 field networks

The multi-protocol design of this unit can be easily switched industrial Ethernet in the system menu.

  • Useful functions

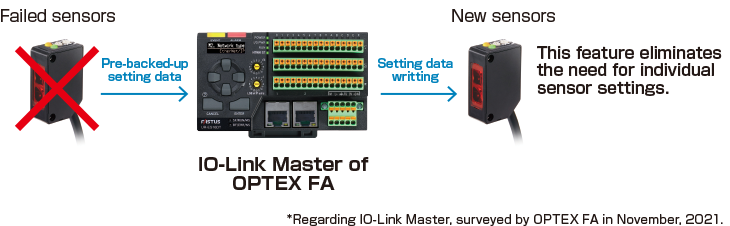

    1. backup / restore

When replacing a sensor, if a sensor of the same model is connected to the same terminal position, the settings before the replacement are automatically written.
No sensor reconfiguration is required, which saves downtime.

  • First in industry*
    1. Users want real ease of use

OPTEX FA's IO-Link Master is equipped with an OLED display and operation keys that allow users to check, set, and change IO-Link device parameters, maintenance information, and errors without using a PC or HMI.

 Easy configuration

Learn more about IO-Link
”IO-Link Complete Guide"
with basic and technical information on IO-Link
Click here for details
