Miniature TypeE Series

DOWNLOAD

Super Thin Size and Flexible Installation by Universal Mounting Holes

  • Super Side-sense Type projects the beam from the 5mm(0.19 inch) of wide edge of the sensor
  • M8 pig-tail connector types are available for all models
  • Tough mechanics. 100G Shock Resistance and IP67 Water tightness
  • Easily visible indicator LED can be seen even from the back
E Series
  • 2 type selection

    Super Side-Sense type

  • (Side or Flat)

    Flat type Front Sense

  • M8 pig-Tail connector for easy maintenance.

  • IP67 rating

  • Operating LED visible in the back

    It's convenient. Verifying the operation of the sensor is easy.

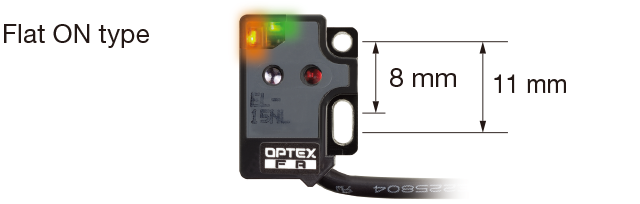

  • Universal mounting holes.

    Flexible mounting for easy installation.

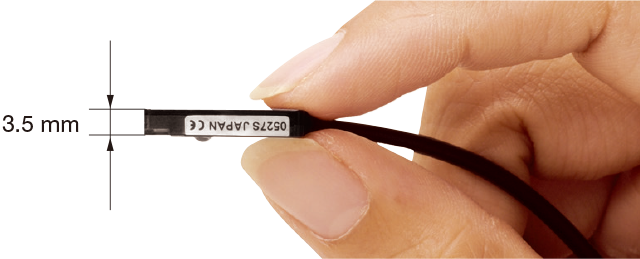

3.5mm thin dimensions (Flat type)

  • Leading edge of sensing functions are designed in this thin size. Ideal for space saving. (Side sense type : 5mm)

Super Side-Sense type

Unique Side-Sensing Type available in Diffuse,Convergent and Thru-Beam. M8 Pigtail models in both 3 and 4 pin types.

  • EL-S series Convergent Type

    15mm (0.6 inch) sensing distance. Light-On/Dark-On models available. +/-0.1mm (0.004 inch) repeat accuracy.
    2mm (0.07 inch) project spot diameter at 15mm distance. 0.5 msec. response speed.

  • ED-S series Diffuse Reflective Type

    30mm sensing distance. Light-On/Dark-On models available. +/-0.05mm (0.002 inch) repeat accuracy.
    30mm sensing distance with 10% Hysteresis.

  • ET-S series Thru-Beam Type

    500mm (19.7 inch) sensing distance. Light-On/Dark-On models available. +/-0.1mm (0.004 inch) repeat accuracy.
    0.25 msec. response speed.

Flat type - Front Sense

Thin and flat design for space saving. Three different models of Convergent models.

  • EL - series Convergent Type

    3 different sensing distance are available.
    30mm (1.18 inch),15mm (0.6 inch), and 8mm (0.31 inch) for close installation.
    Compact housing is ideal for space saving.

  • ED - series Diffuse Reflective Type

    Standard diffuse reflective type with 100mm (3.94 inch) sensing distance.

  • ET - series Thru-Beam Type

    0.5msec response speed and sharp optical system designed in 12 × 20 × 3.5 mm dimensions.
