Miniature SensorsE Series

DOWNLOAD

An ultra-thin type that can be mounted anywhere thanks to its angled cable and flexible mounting hole.

  • Flexible mounting hole: Hole pitch of 8 to 11 mm
  • Visible indicators even from back of the housing (Flat ON type)
  • Angled cable
E Series

Output circuit diagram

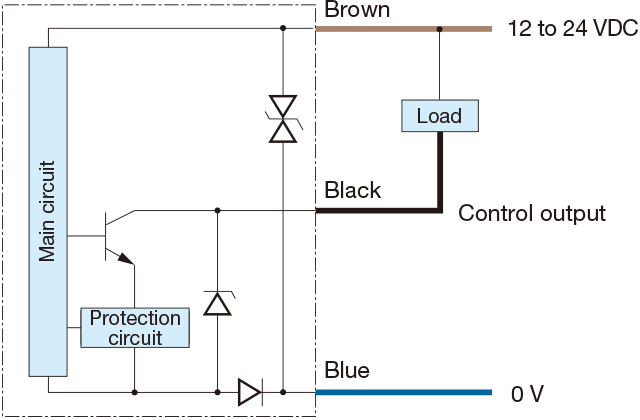

  • NPN output type

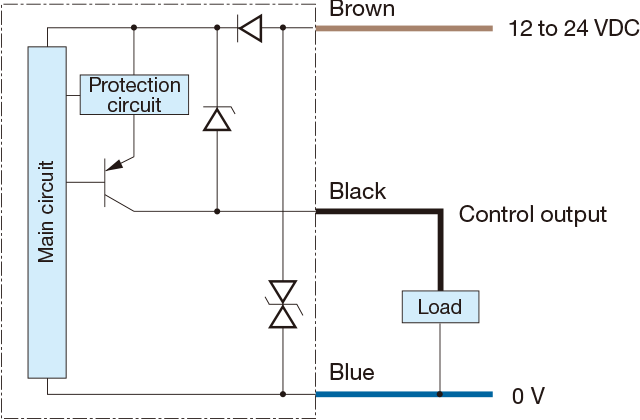

  • PNP output type

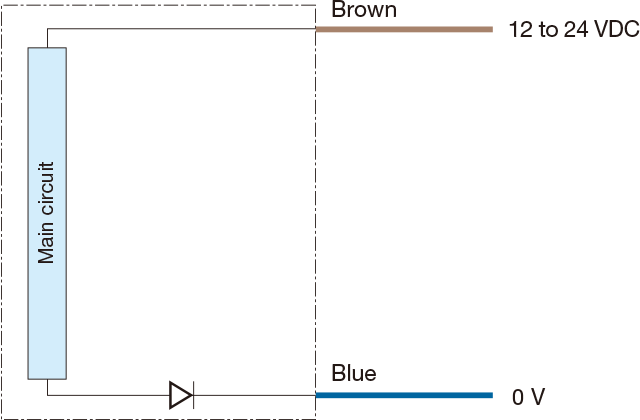

  • Through-beam type emitter

  • Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

Dimensions

Unit : mm

Flat ON type

Through-beam type emitter

Through-beam type receiver

Diffuse-reflective type/limited diffuse reflective type

Side ON type

Through-beam type emitter

Through-beam type receiver

Diffuse-reflective type/limited diffuse reflective type

Slit mask (Flat ON through-beam type for ET-500☐☐)

BL-W2F-1.5

BL-W2F-1
