Standard Elongated Hole, Small TypeBGS-S/BGS-2S Series

DOWNLOAD

Standard elongated hole type and small type BGS sensors

  • For locations with small mounting space
  • For accurate detection of small workpieces
  • High-speed response: 0.5 ms
BGS-S/BGS-2S Series

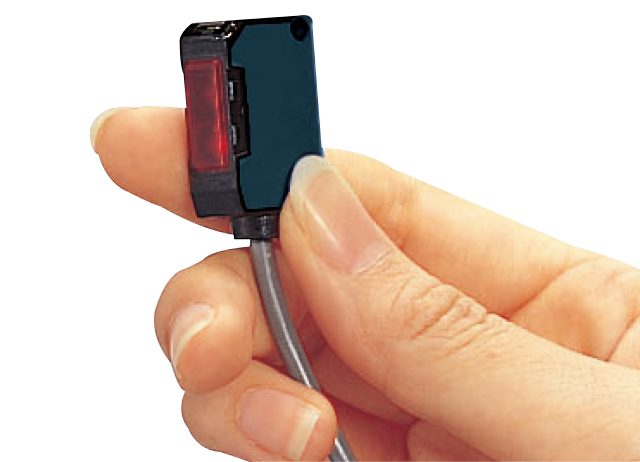

  • Can be safely used in locations with small mounting space

    Small type

    BGS-S series is one of the smallest distance setting type photoelectric sensors.
    BGS sensors can now be used in locations where only small-sized diffuse-reflective type
    photoelectric sensors could be used up to now.

  • For accurate detection of small workpieces

    Small spot type (BGS-S03N)

    BGS-S03N is equipped a very small light spot which helps to detect small objects like electronic components.
    (at distance of 30 mm)

  • Prevention of chattering

    Type with timer functions

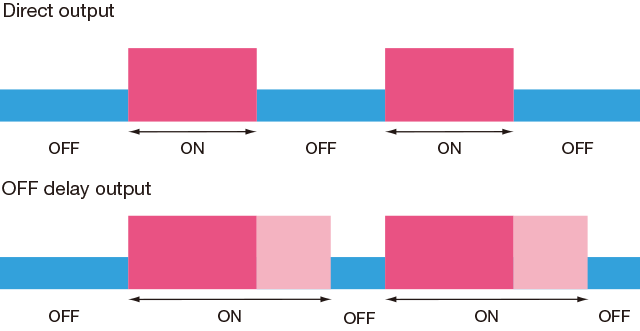

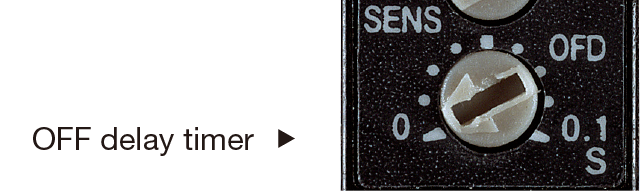

    The BGS-2S30NT is equipped with an OFF delay timer which can delay the time in which output is shut off by 0 to 100 ms. It is also effective when inputting to devices in which detecting signal slow.

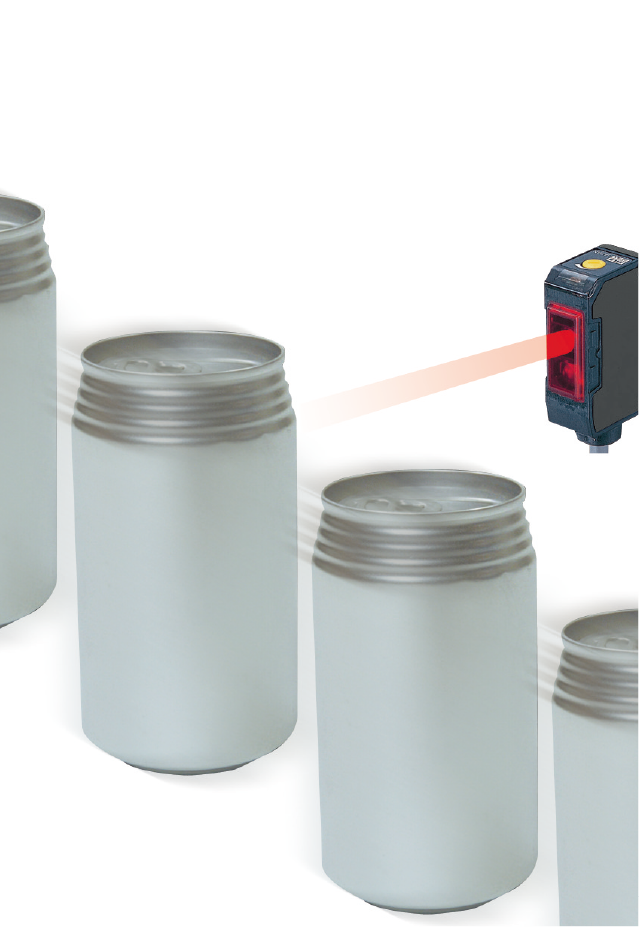

  • High-speed response

    • 0.5 ms high-speed response type

      This photoelectric sensor with built-in amplifier features a top level response time of 0.5 ms or less. This feature makes its use on high speed production lines possible.

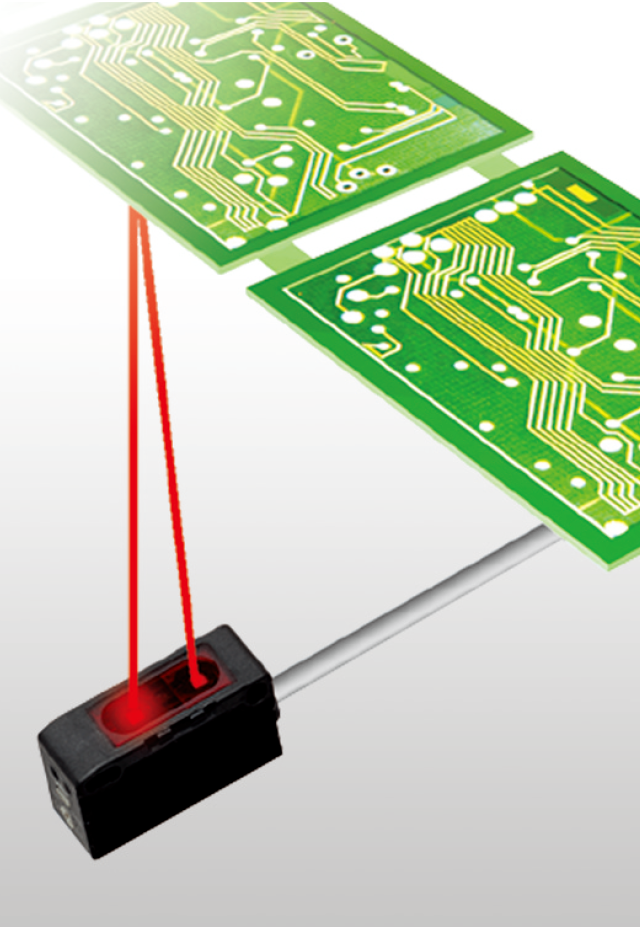

  • For accurate detection of substrates

    • Substrate detection type (BGS-2S10N)

      Features of this type include stable detection even if the substrate type is changed, as well as high repeat accuracy, even among models in the series.

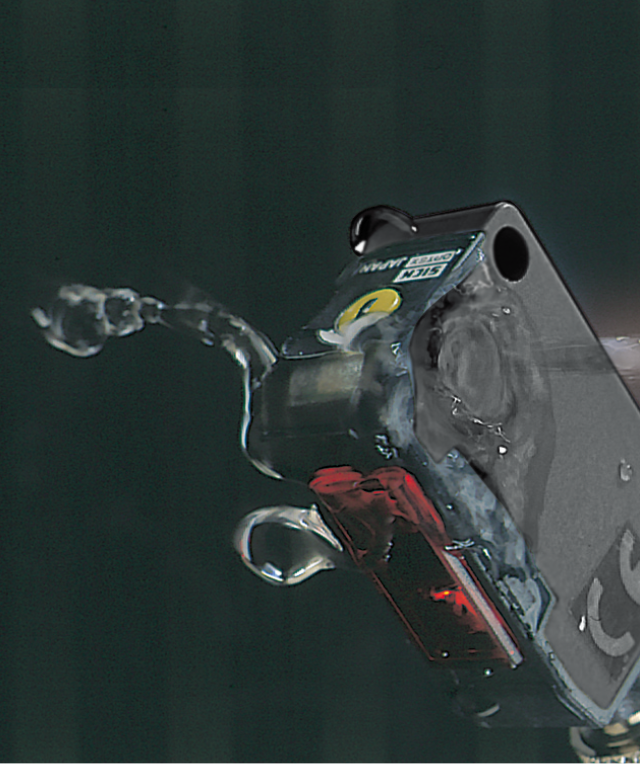

  • Water resistant structure

    • Degree of protection on IP67

      All models in the BGS series conform to IP67 (protective resistance standard) and feature excellent dust and water resistance. It also conforms to CE standards and can be used in a wide range of locations.
