Fiber-Optic CablesNF Series Attachment lens
Mountable lenses for Fiber-Optic Cables
- Choose from long range, side view, and small spot lens
- Lineup includes spot lenses and fine sleeves for small object detection

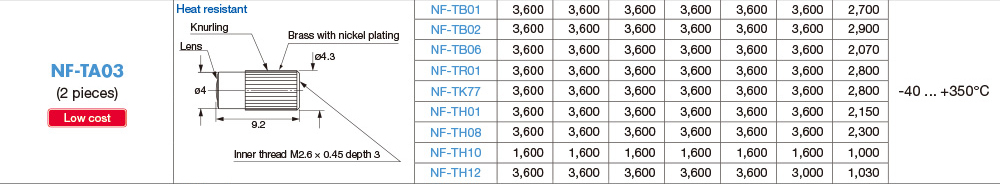

Long range lens for through-beam type Fiber-Optic Sensors (Fiber-Optic Sensors: D4RF)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.

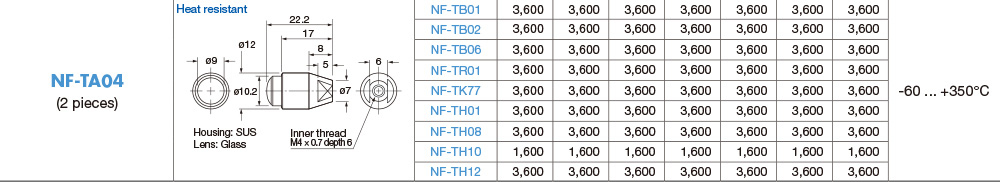

Utra-long range lens for through-beam type Fiber-Optic Sensors (Fiber-Optic Sensors: D4RF)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.

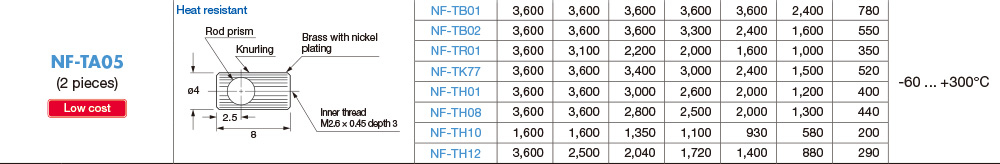

Side-view lens for through-beam type Fiber-Optic Sensors (Fiber-Optic Sensors: D4RF)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
