TOF-DL Series

The FASTUS TOF-DL Series is the smallest TOF sensor^*1.
This ultra-compact laser distance sensor is capable of detecting at distances of up to 2.5 m.
With a built-in digital display, configuring settings is simple.
Notably, the TOF-DL Series is most useful with applications requiring height and target distance control, such as level and position detection and loop control at a manufacturing site.
*1 Among devices equipped with displays. Optex FA examination performed December 2018.

The TOF principle measures the time it takes a pulse-emitted laser to hit a target and return, and the measurement is then converted into distance. With strong resistance to influences from the target’s surface conditions, this principle is capable of producing stable detection.

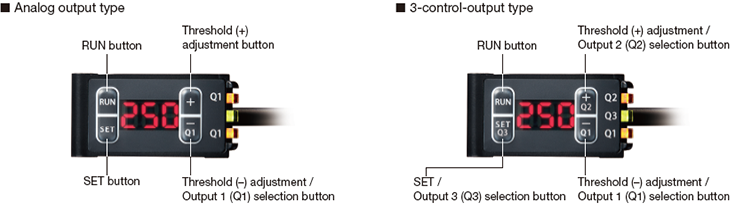

With its ultra-compact size, the TOF-DL Series is equipped with a three-digit, easy-to-see digital display.
The display allows users to check the distance showing numerical values.
This digital display also makes threshold adjustments easy.

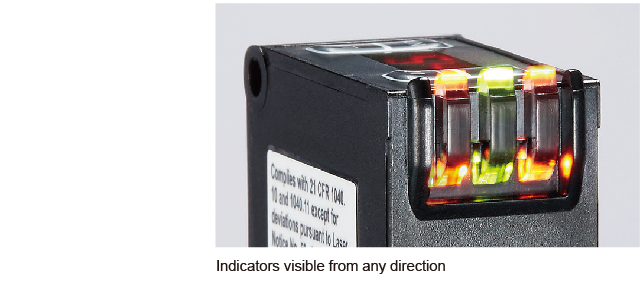

• The indicators used on the TOF-DL Series allow for easy visibility from any angle.
  In addition, users are able to switch output 1 to Stability Output.
  Stability Output turns ON (Central indicator = Green) when detection is stable and turns OFF (Central indicator = Red) when detection is not possible.

•

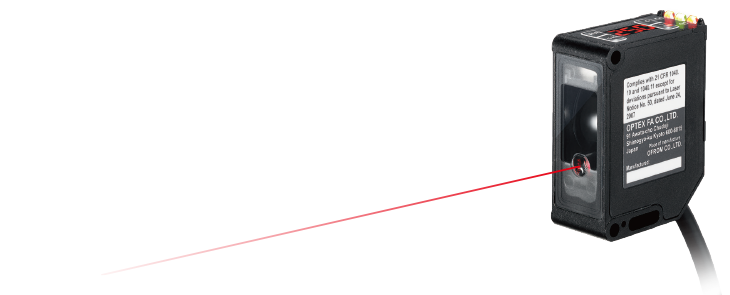

The Class 1 laser used in the TOF-DL Series opens the door to long-distance measuring at up to 2.5 m without sacrificing eye safety.
In addition, the spot is clearly visible, making light axis alignments easy.
