Circuit Diagram
-

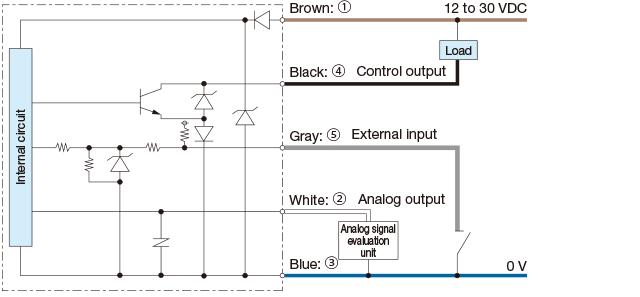

Analog output type: With the NPN setting
-

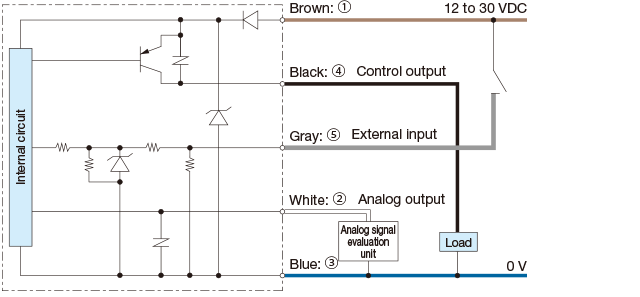

Analog output type: With the PNP setting
-

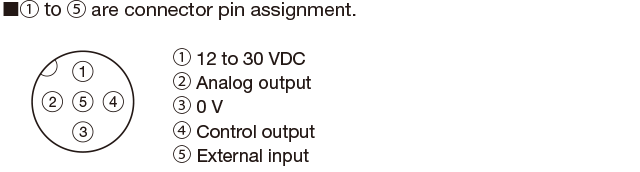

M12 5-pin pigtail cable type pin assignment
-
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Wring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
- Avoid using the transient state while the power is on (approx. 800 ms).
-

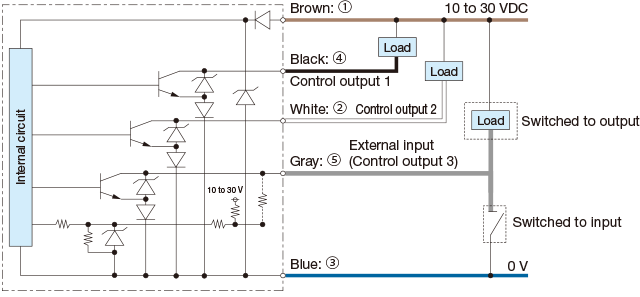

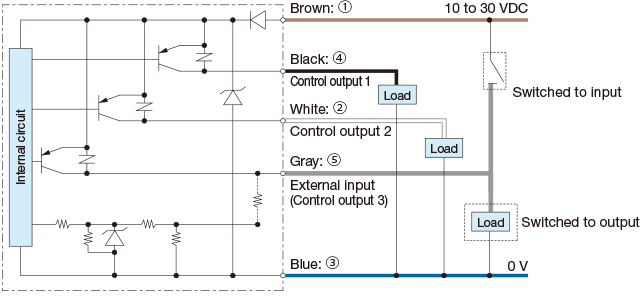

3-control-output type: With the NPN setting
-
3-control-output type: With the PNP setting
-

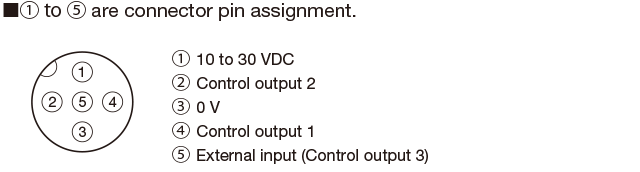

M12 5-pin pigtail cable type pin assignment
-
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Wring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
- Avoid using the transient state while the power is on (approx. 800 ms).
-

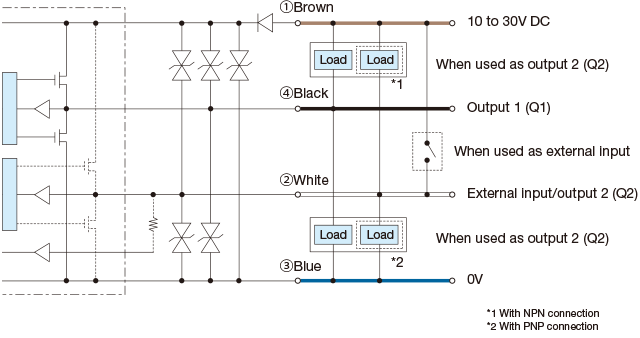

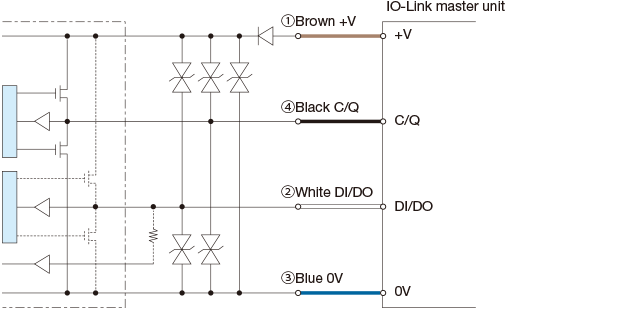

IO-Link model: IO-Link mode
-

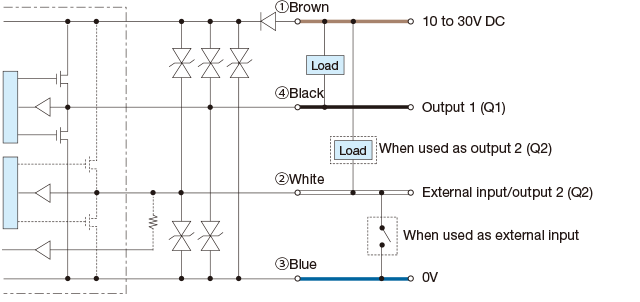

IO-Link model: SIO mode (Standard I/O mode) with Push-Pull/PNP setting
-
IO-Link model: SIO mode (Standard I/O mode) with NPN setting
-

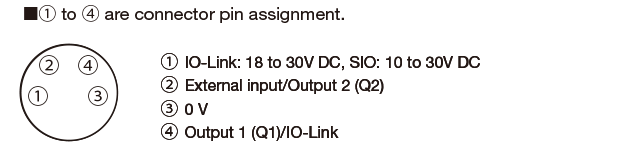

M8 connector type pin assignment
-
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Wring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
- Avoid using the transient state while the power is on (approx. 800 ms).
