CVS2-RA Series

Inspection of shape and direction of the object is available by pattern matching mode. You can use CVS2-RA as simple Color inspection sensor as well. Sorting by color is also available.

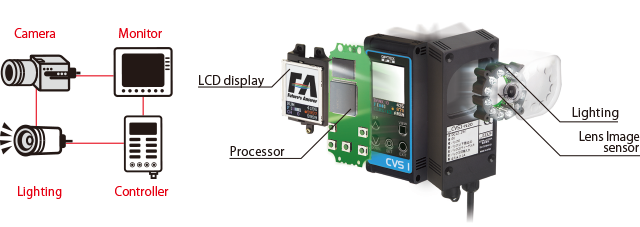

The sensor has a built-in Camera, LED Lighting, Display monitor and Controller. This structure enables water resistance IP67.

• Correct background brightness

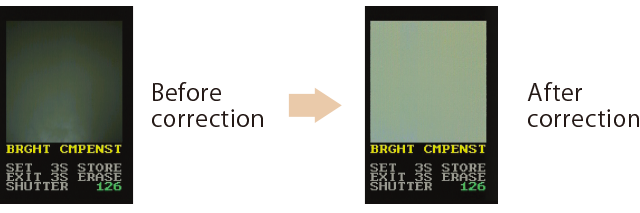

  CVS2-RA has a function that corrects evenness of background brightness. You register just the background for reference.



• Wide coverage line-up

  You can choose from 4 inspection range/field of view according to inspection target condition.

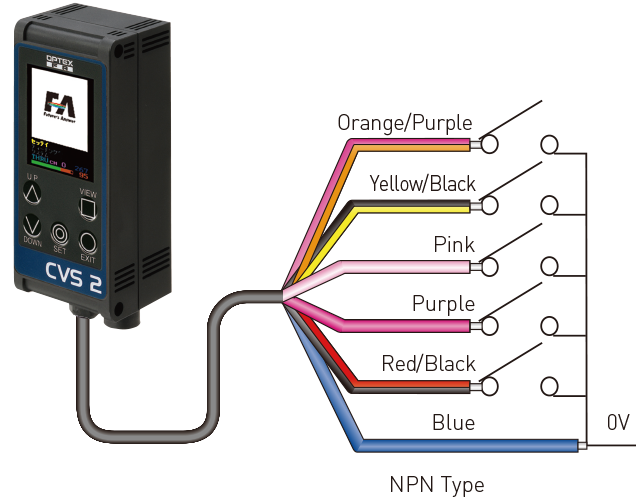

• Up to 15 Bank

  15 Banks are available in small all in one package.

•

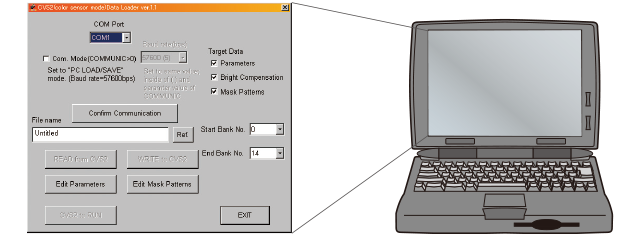

• You can download setup data and image data into PC. You can use the image data on PC and can copy setup to other CVS2-RA. Please use I/F cable CVS-C2C.

•

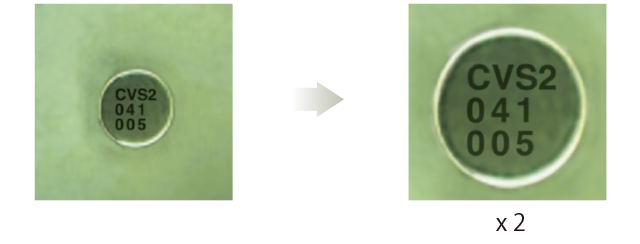

• CVS2-RA has Zoom function so you can zoom in up to twice size.

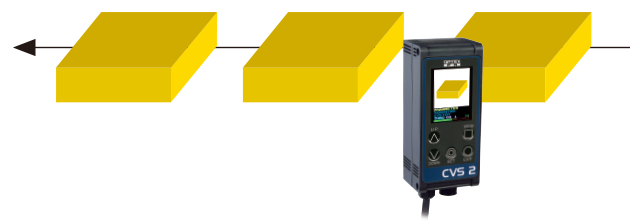

CVS2-R provides output with the setup parameters given even while you are adjusting setup. You don't have to stop the line.

•

•

  CVS2-RA has two processing unit individually so it can change parameters while vision processing is running without delay.

•

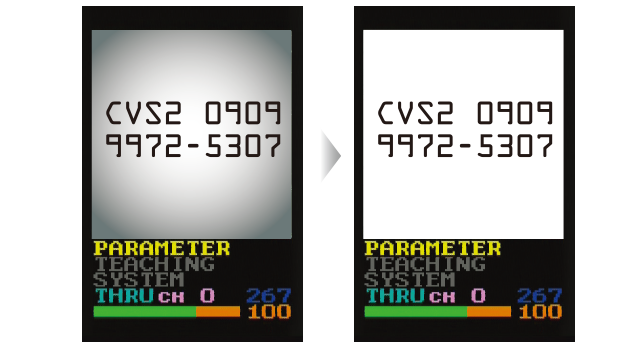

• CVS2-RA has a function that corrects evenness of background brightness. You register just the background for reference.

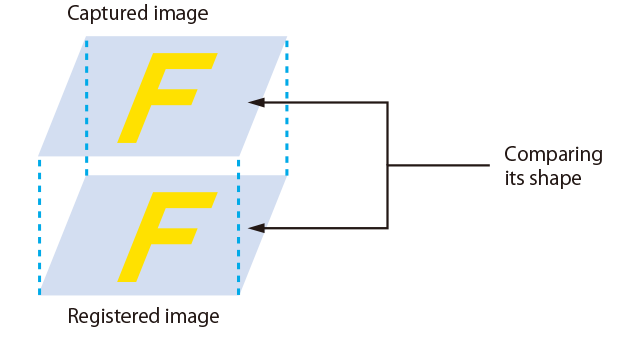

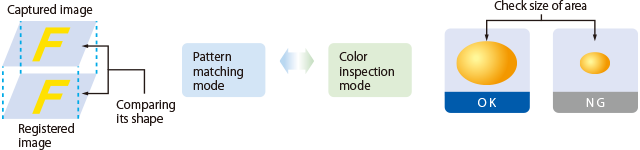

• CVS2-RA detects up to 65,536 colors and checks its shape to compare with registered image.

•

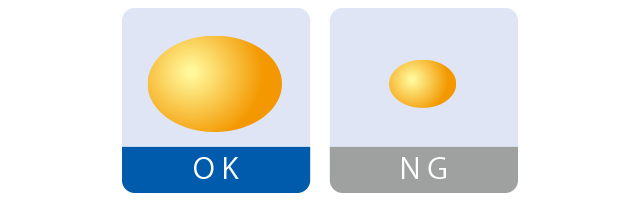

• Determine OK when the area that the color matches exceeds the threshold

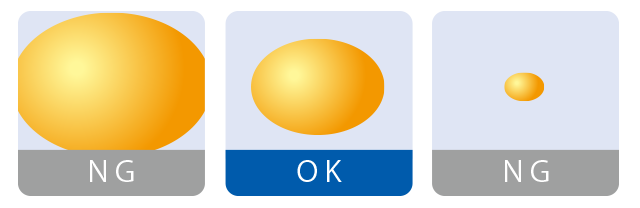

• Determine OK when the area that the color matches is in two thresholds.

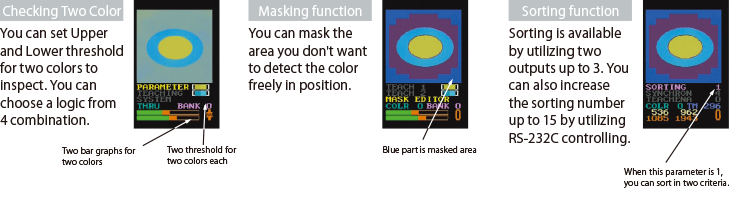

CVS2-RA can inspect two colors for one application at a time.

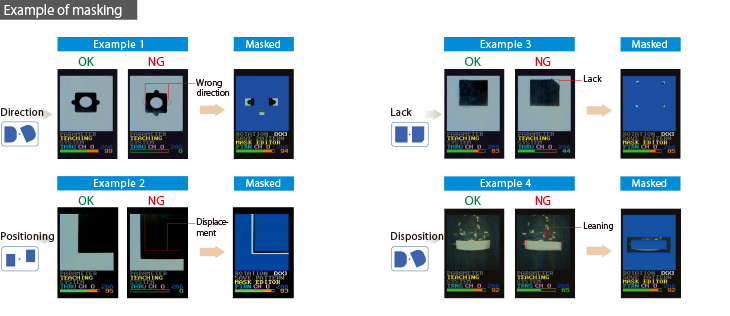

You can mask the area that doesn't have to be checked so that you can get better sensitivity of color inspection.

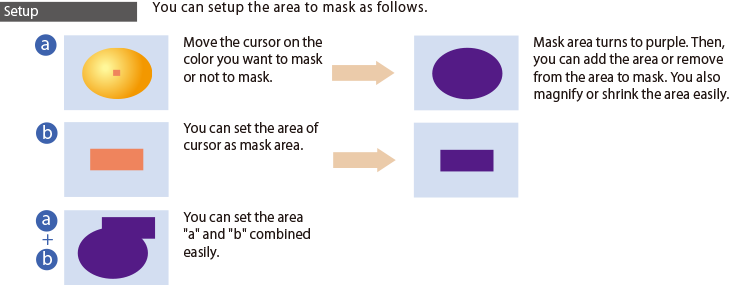

You can setup the area to mask as follows.

•

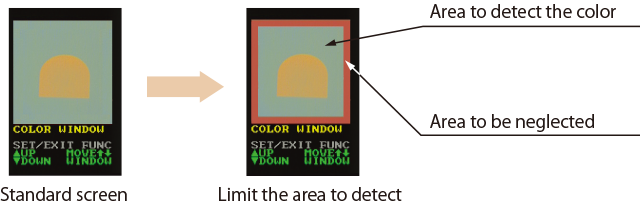

• You can limit the area to inspect color from. This prevents miss-detection of color at the edge of the FOV.

You can get better result by masking the area that doesn't show characteristics of the target object.
