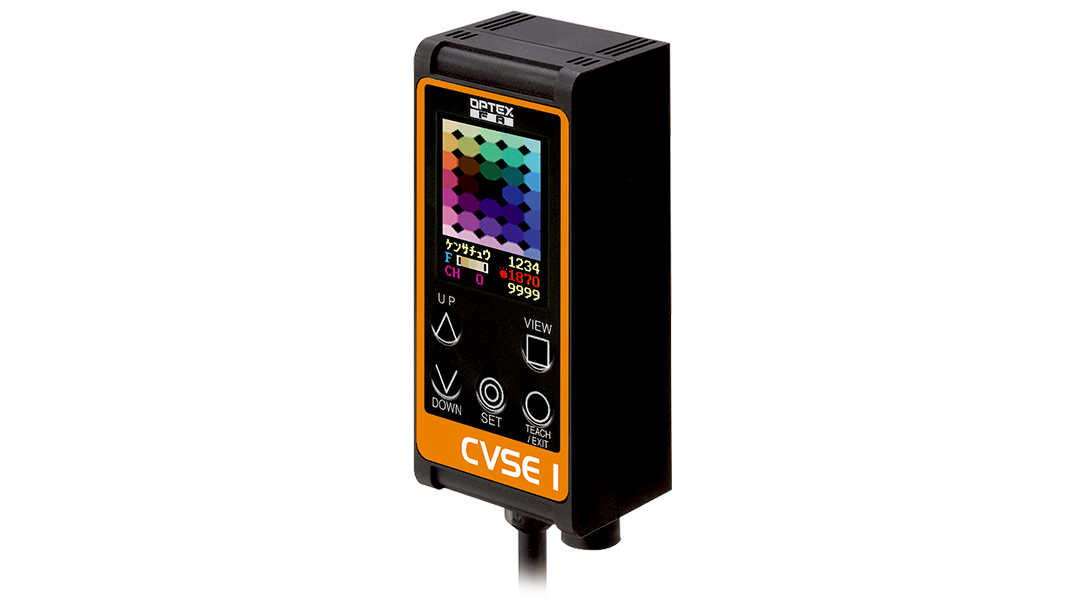

CVSE1-RA Series

All in one

•

• The sensor has a built-in Camera, LED Lighting, Display monitor and Controller. This structure enables water resistance IP67.

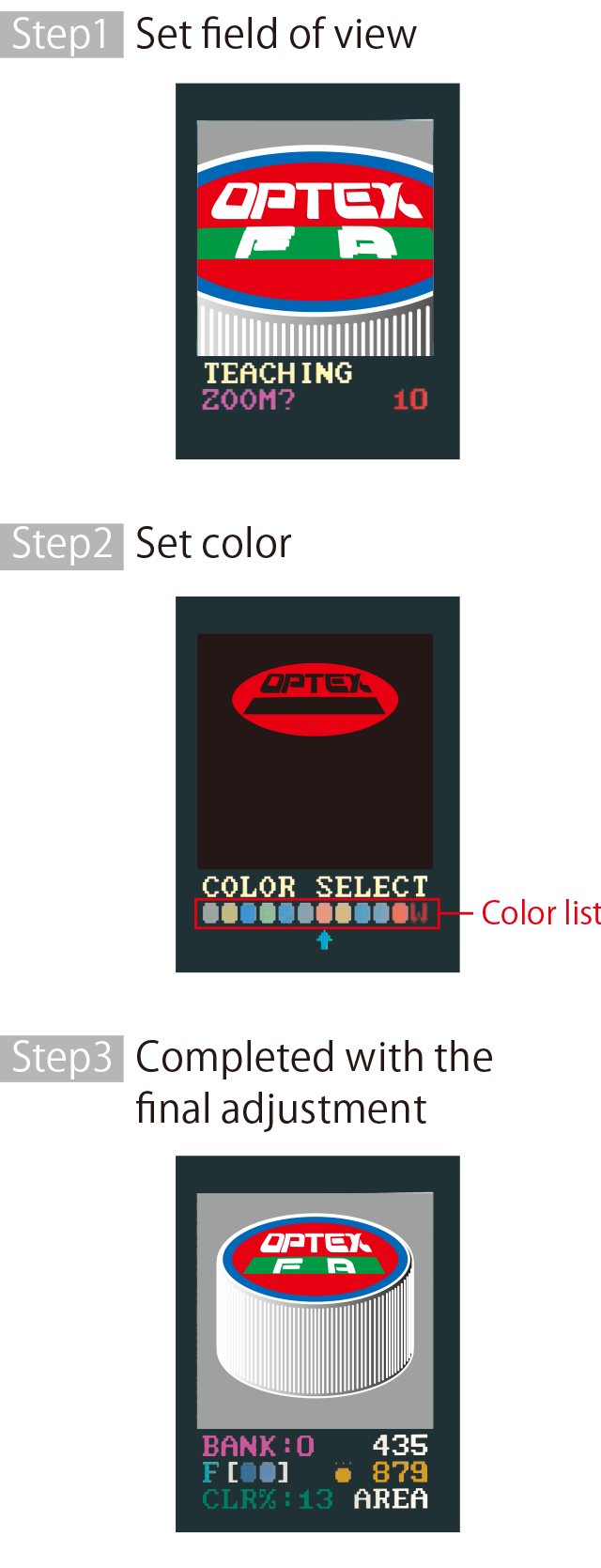

• Three-Step-Teaching

  Teaching is easily done by three steps even in 30 seconds just like a color sensor.

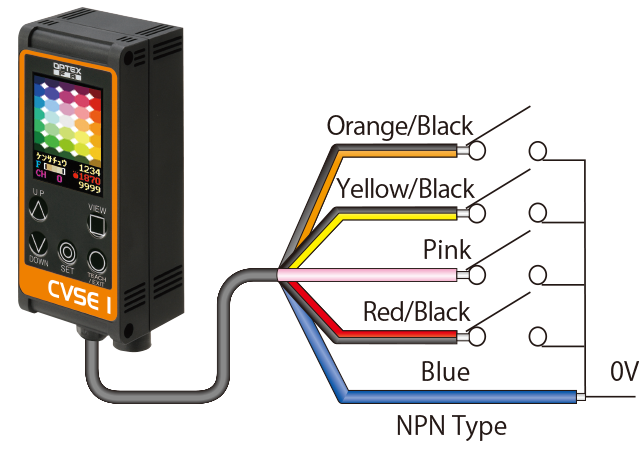

• Quick change over

  16 Banks are available. You can
  remotely select the bank to use by
  PLC or other equipments.



  Color Resolution

  Up to 15,000 colors are available to detect.

  Stable inspection

  It calculates color hue of each pixel so stable inspection is available.

  Wide coverage line-up

  You can choose from 4 inspection range/field of view according to inspection target condition.

• One threshold mode

  Determine OK when the area that the color matches exceeds the threshold.

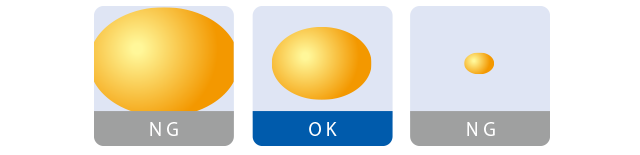

• Two threshold mode

  Determine OK when the area that the color matches is in two thresholds.



High performance by dedicated ASIC

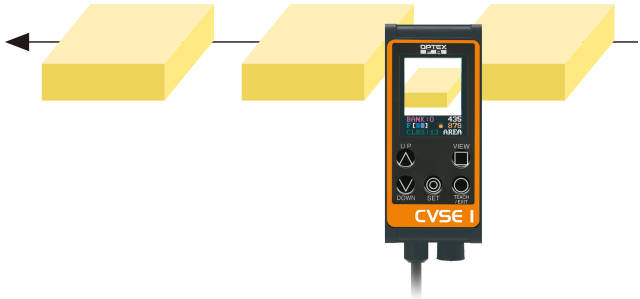

Setup Adjustable while line is running

• CVSE1-RA provides output with the setup parameters given even while you are adjusting setup. You don't have to stop the line.



•

  CVSE1-RA has two processing unit individually so it can change parameters while vision processing is running without delay.

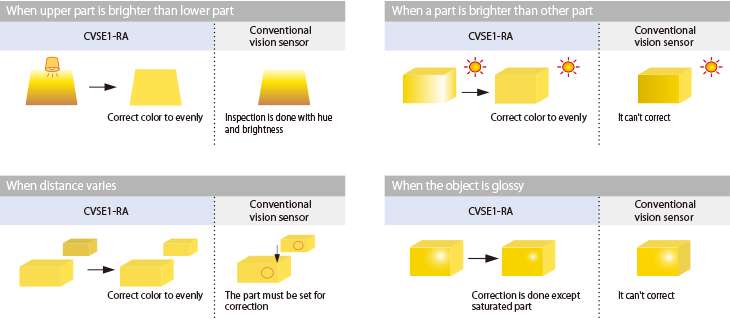

Stable inspection

It calculates color hue of each pixel that prevents miss-inspection affected by external light and brightness changes of lighting. Stable inspection is available and you can setup CVSE1-RA just like you do for photoelectric sensor.
