Long-range TOF Sensors
TOF-3V Series
Long Sensing Distance Sensor
- TOF, Time Of Flight, method forms the technical basis for maximum reliability and high precision

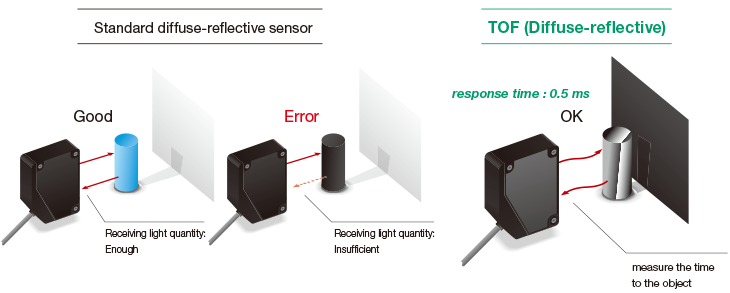

- Immune to object color and angle
-

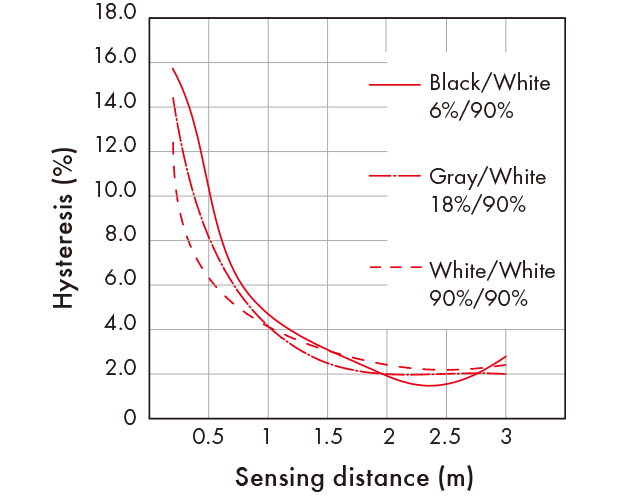

Super tight hysteresis (Diffuse-reflective)
Optex FA’s skill in TOF technology design provides super tight hysteresis between black and white objects (2% at 3 m distance)
-

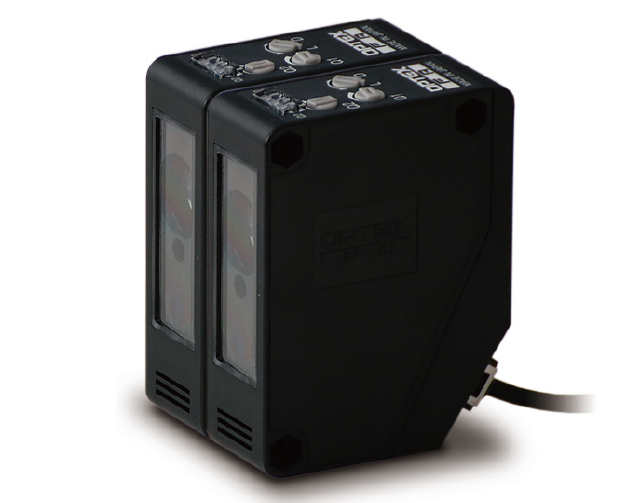

Crosstalk prevention-2pcs MAX.
Up to 2pcs can be mounted side by side.

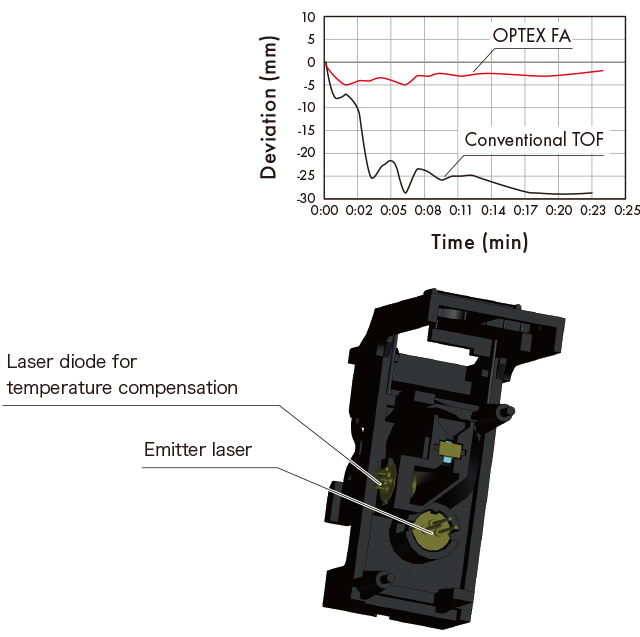

Dual laser system
-
The sensor uses two laser diodes in order to compensate for temperature drift of the laser pulse rise time. One laser diode is inside the case and emits directly to a receiver element. The other emits on the outside of the case. By compensating for the time difference between the two laser pulses , the time measurement remains consistent regardless of temperature changes.
-
