Circuit Diagram

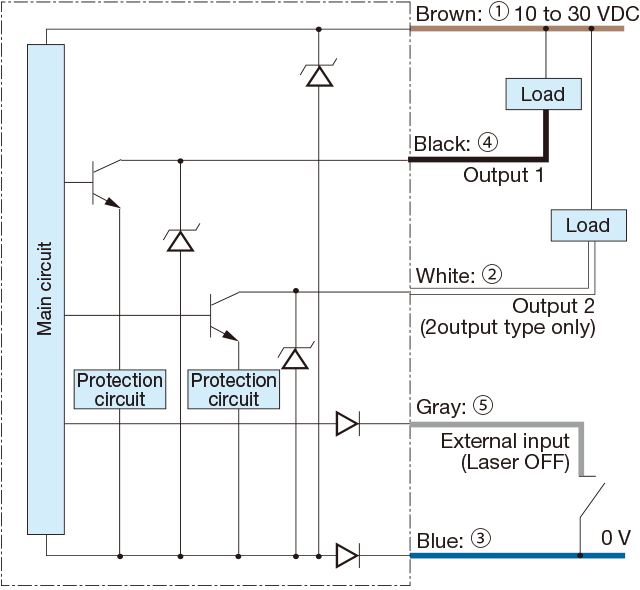

NPN output type

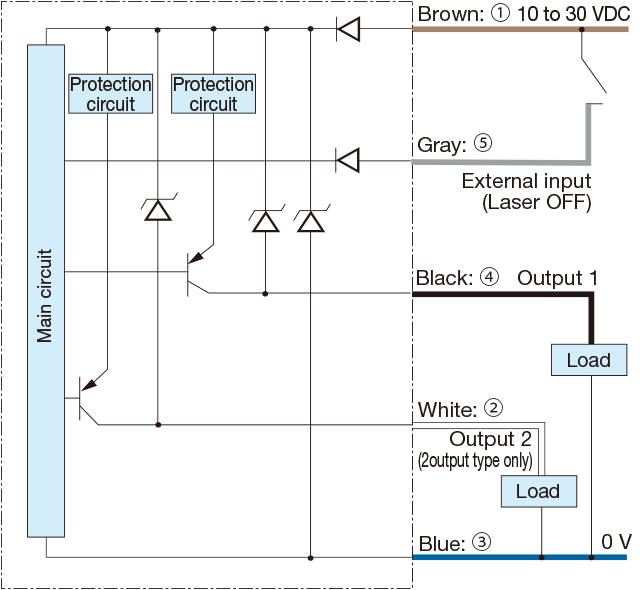

PNP output type

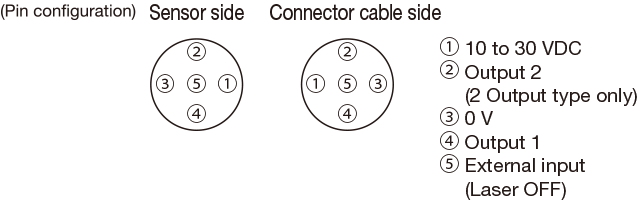

Connector type

Connecting

• When not used for control output 2 or external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.
• 1 to 5 correspond to connector pin No.

Notes

• When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
• Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
• Avoid using the transient state while the power is on (approx. 300 ms).
