Built-in Amplifier CMOS Laser Sensor

ZA-B Series

Micron-level repeat accuracy with background suppression CMOS laser sensors

  • IO-Link support: Connects to various field networks via IO-Link Master
  • Clear OLED display

  • Micron-level repeat accuracy with background suppression (BGS) CMOS laser sensors

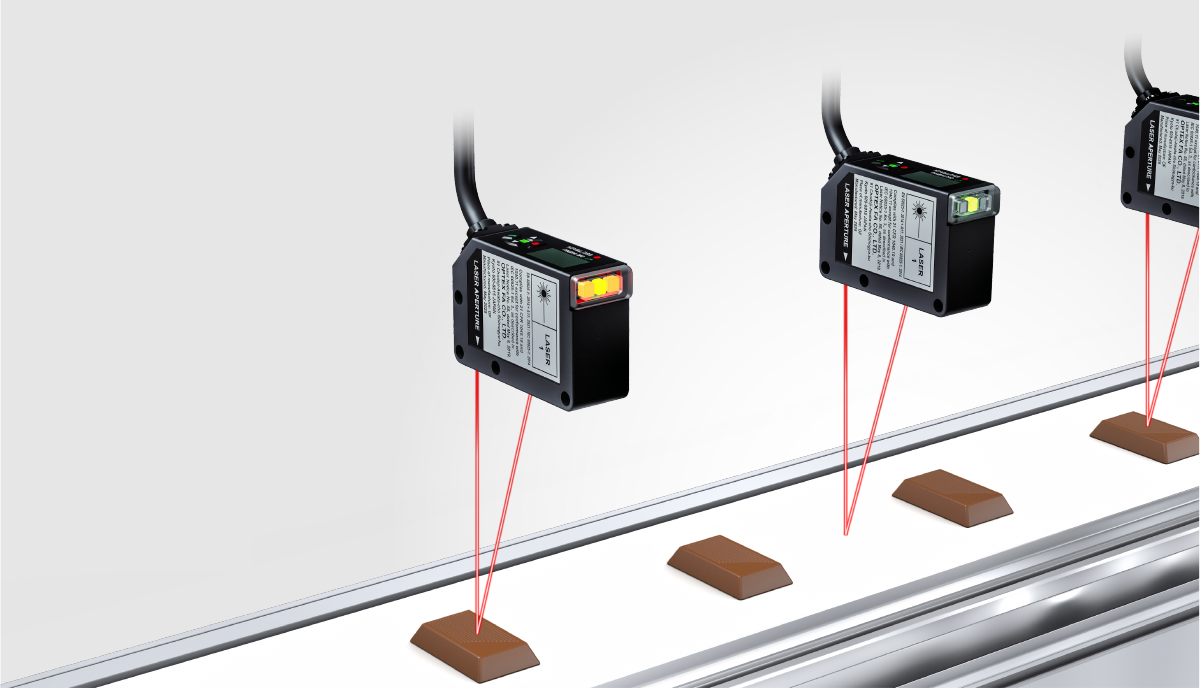

    The ZA-B Series is a background suppression (BGS) laser sensor designed for high-accuracy detection.
    It provides a cost-effective alternative to laser displacement sensors, enabling reliable detection of thin and transparent objects.
    With micron-level repeat accuracy, improved detection performance, and enhanced operability, the ZA-B Series enables easy high-accuracy detection.

Industry-first* photoelectric sensor with guaranteed linearity

The ZA-B Series ensures high repeat accuracy and linearity.
With linear output, the OLED display directly represents distance.
Thresholds are set in distance units for accurate detection.

*Investigated by OPTEX FA in April 2026

  • The OLED display directly represents distance, making it easy for users to understand

Repeat accuracy, Linearity, and Minimum detectable step

  ZA-BL60 ZA-BL150 ZA-BL300 ZA-BL500 ZA-BL1000
Repeat accuracy*1
〈Response time: 50 ms〉		 0.01 mm 0.05 mm 0.2 mm 0.5 mm 2.0mm
Linearity
(Converted value of linearity)		 ±0.1% of F.S.
(±0.03 mm)		 ±0.2% of F.S.
(±0.23 mm)		 ±0.3% of F.S.
(±0.8 mm)		 ±0.7% of F.S.
(±3.3 mm)		 ±1.6% of F.S.
(±15.2 mm)
Minimum detectable step*2
〈Response time: 50 ms〉		 0.08 mm 0.６ mm 2.0 mm 7.6 mm 36.0mm

*1. Peak to peak value of measurement in stationary state.
*2. Minimum detectable step equivalent to twice the hysteresis. Hysteresis equivalent to (linearity/2) + repeat accuracy.
     For the ZA-BL60, the hysteresis is 0.04 mm, calculated as: ±0.1% of F.S. (±0.03 mm)/2 + 0.01

Reliable detection across various materials

Automatic adjustment of light intensity and exposure ensures reliable detection across a wide range of materials, including black, metal, and transparent objects.
It also maintains stable performance under short-range installation conditions and varying ambient light.

Advanced usability

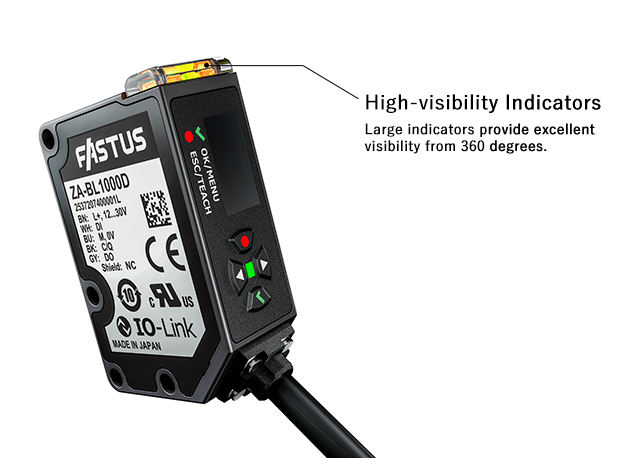

  • Clear display

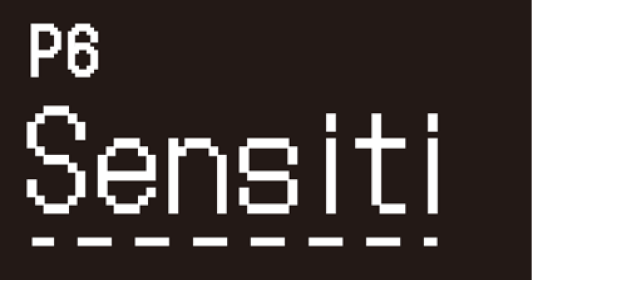

    The high-visibility OLED display makes it easy to read text in any language.

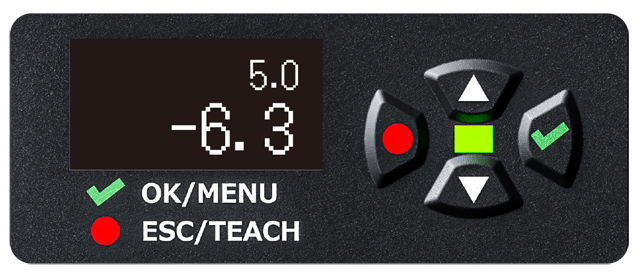

    Meanwhile, the intuitive menu structure makes settings easy to understand at a glance even without a manual, minimizing setup time.

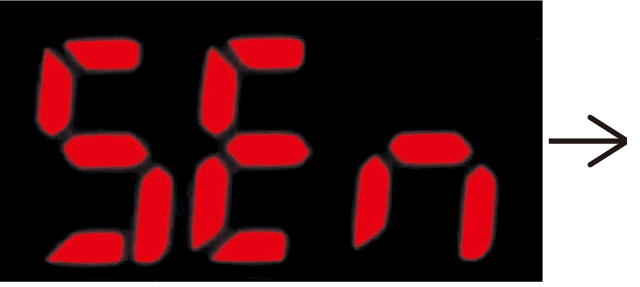

    Conventional model:
    7-segment display

    ZA-B: OLED display

  • Easy-to-read clear OLED display

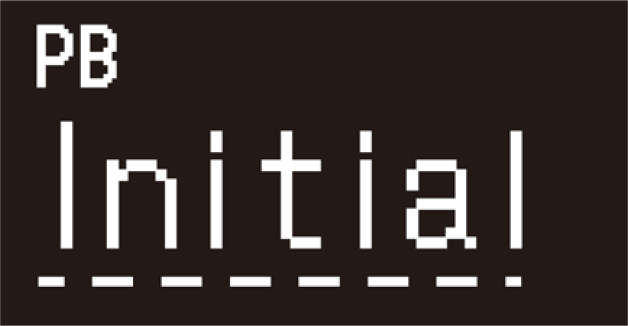

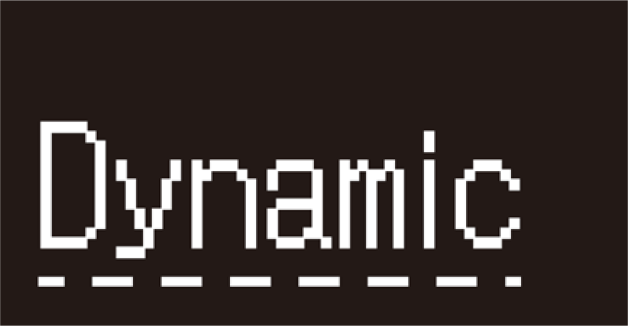

    English

    Simplified Chinese

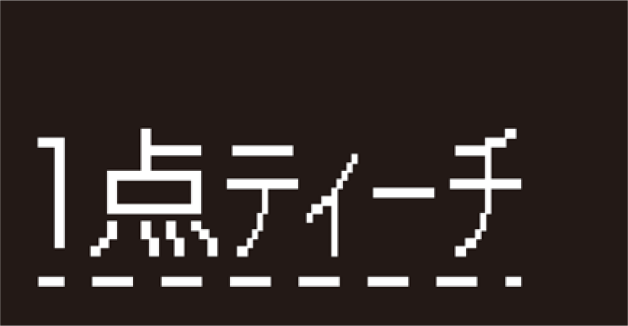

    Japanese

    Menu languages: English, Simplified Chinese, Japanese

Wide range of teach modes

Multiple teach modes, including Dynamic, 1-point, FGS 1-point, and 3-point are available for various detection needs.
Thresholds can be changed simply with a button.

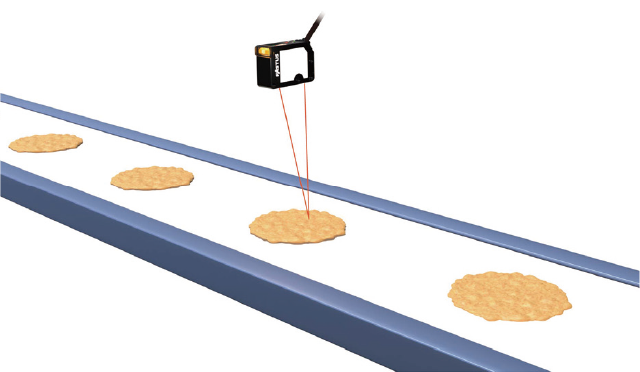

  • Rice cracker passage detection

3-point mode

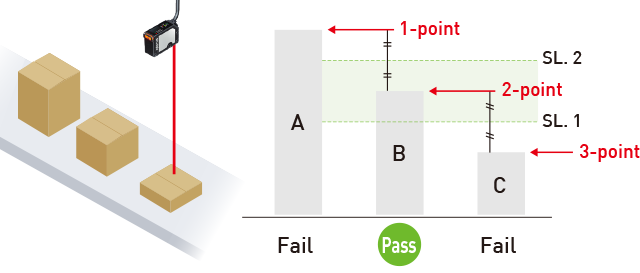

Three teach points (A, B, and C) are set, and thresholds (SL. 1 and SL. 2) are automatically defined at the midpoints between A and B and between B and C, enabling detection of B only.

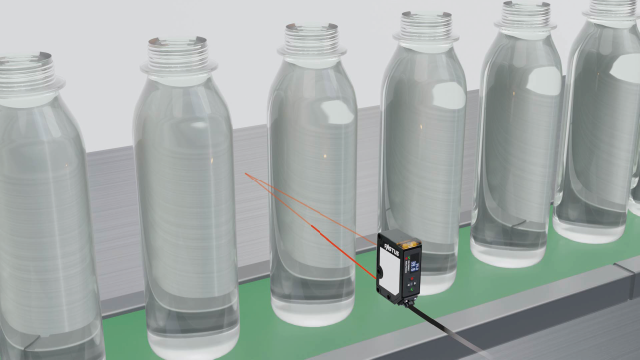

Transparent bottle detection (Transparent 1-point teach mode)

By teaching the distance to the background and the light intensity, detection is performed based on changes in received light.

Selectable mounting pitch

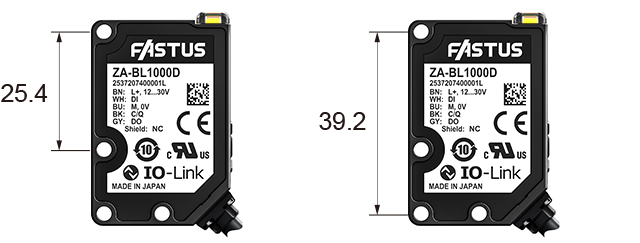

  • Two mounting pitch options are available, including a 25.4 mm pitch compatible with standard photoelectric sensors.

  • Unit: mm

  • IO-Link support

    IO-Link is one of technology that connects sensors and actuators to Industrial Ethernet using digital signals to promote smart factories.
    Measurement data is transferred as digital values, eliminating the need for analog input.
    This provides improved noise immunity, reduces wiring and system costs, and enables predictive maintenance.

    [System overview]

  • Data for predictive maintenance

    Measurement data is transferred as digital values, eliminating the need for analog input.
    This improves noise immunity, reduces wiring and system costs, and enables predictive maintenance.

  • Internal temperature

    Received light amount

    Maintenance timing

IO-Link software tool

  • Setup tool for IO-Link Master UR Series

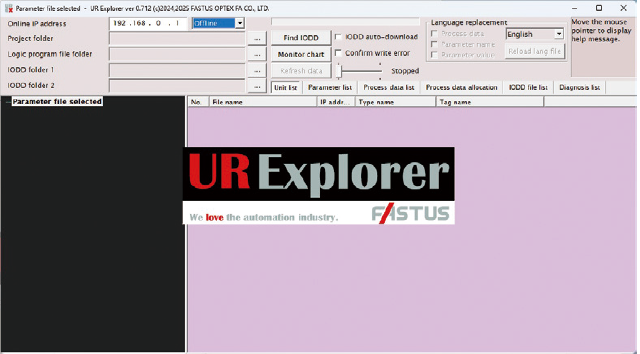

    UR Explorer
    Configure and manage IO-Link devices with UR Explorer.
    Download it for free from the OPTEX FA website

    • Monitor IO-Link device settings and process data
    • Search and install of IODD files from IO-Link device manufacturers
    • Backup and restore IO-Link device settings

    UR Explorer can be downloaded free of charge from the OPTEX FA website.

Learn more about IO-Link

”IO-Link Complete Guide" with basic and technical information on IO-Link

Click here for details
