Dimensions
[Unit: mm]

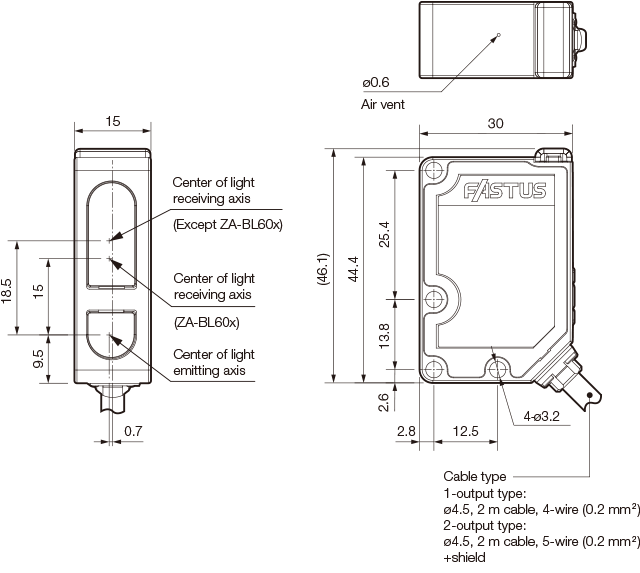

Cable type

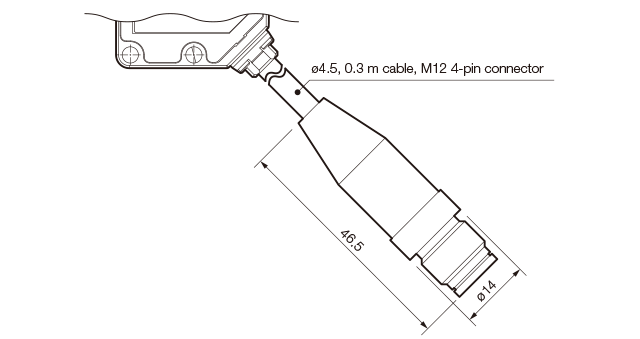

Pigtail type
Connector cables (Option)

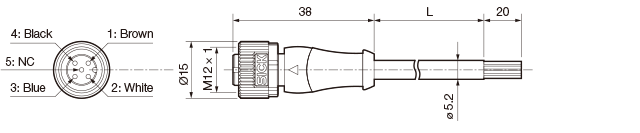

Standard cables
YF2A14-xxVB3XLEAX
Cable material: PVC
Lead wire nominal cross-section area: 4-wire x 0.34 mm2
L = 2000 (YF2A14-020VB3XLEAX)
= 5000 (YF2A14-050VB3XLEAX)
= 10000 (YF2A14-100VB3XLEAX)

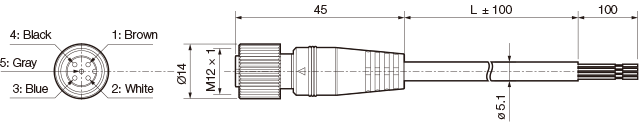

Bend-resistant cables
DOL-1205-G0xM-R
Cable material: PVC
Lead wire nominal cross-section area: 5-wire x 0.3 mm2
L ＝ 2000 (DOL-1205-G02M-R)
＝ 5000 (DOL-1205-G05M-R)
Mounting bracket (Option)
BEF-ZA-001
