Z4 Series

IO-Link support

• Connectable to various field networks via IO-Link Master.
  Monitoring data of received light amount and output status can be communicated with PLC via IO-Link Master.
  In addition, sensitivity, output mode and timer settings can be made via the field network.

•

Industry-standard size, built-in amplifier photoelectric sensors that support IO-Link

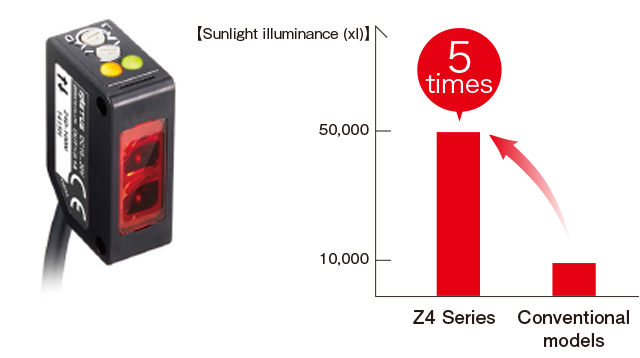

Enhanced ambient illuminance resistance

• Compared to the conventional models, the ambient illuminance (sunlight) has been improved by approximately 5 times, making it less susceptible to ambient light, which can cause malfunctions.

  Conventional models
  Sunlight: 10,000 lx Max.,
  Incandescent lamp: 3,000 lx Max.
  Z4 Series
  Sunlight: 50,000 lx Max.,
  Incandescent lamp: 5,000 lx Max.

•

5 times more resistant to ambient light than conventional models

Stability indicator for quick status confirmation

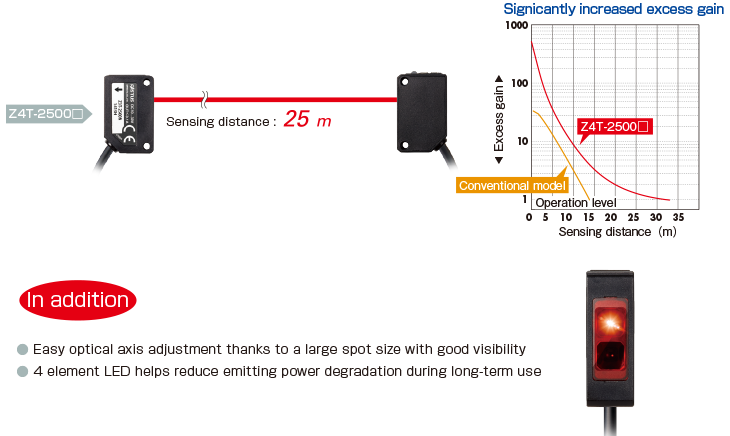

High-power LED provides stable detection

• The Z4 Series through-beam type sensors have a 25 m sensing distance, the longest in their class.
  The excess gain has been increased significantly, helping the sensors overcome interference from dust or other fine particles.

•
