NF Series Heat resistant type

Because the cables of NF25-DH and NF25-TH heat resistant nut type Fiber-Optic Cables do not protrude even when mounted to the conveyer side, no extra space is needed. Also, they eliminate worries regarding cable breakage caused by snagging on tools during work.

• ^{Low cost nut type Thread type}

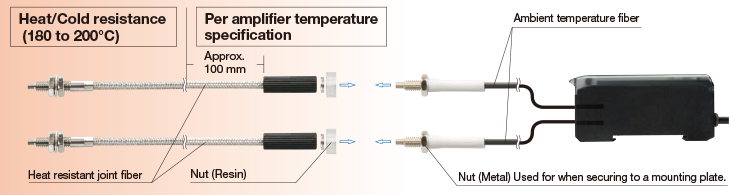

By using joints for the free cut ordinary temperature fiber and heat resistant fiber, it is easy to attach/remove the fibers, and makes it possible to adjust the fiber length.

• Refer to the mounting instructions when installing the fiber.

Through-beam types are available in standard and new joint types.
The lineup of heat-resistant Fiber-Optic Cables also includes diffuse-reflective types usable in a variety of situations, and limited diffuse-reflective types for glass substrate detection.
