BGS-HL/BGS-HDL Series

• BGS-HL series : 1output type
  BGS-HDL series : 2output type

Super precision BGS sensor detects 0.08 mm height difference (BGS-HL05☐☐ BGS-HDL05☐☐ )

FASTUS BGS-HL/-HDL Series achieves precise height difference detection regardless of Object color and material.

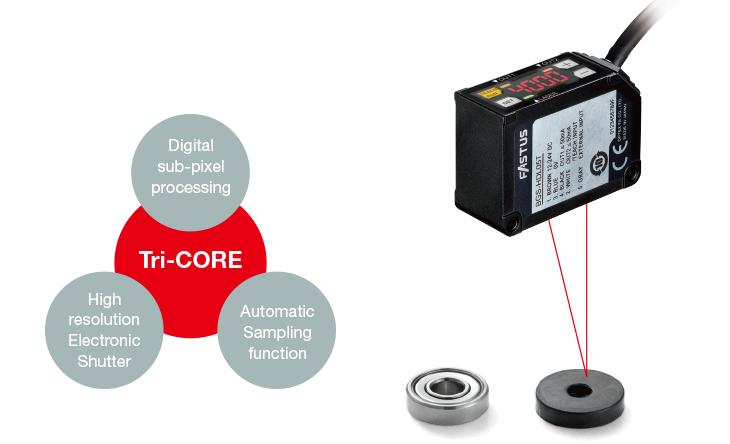

This is accomplished by utilizing original “TRI-CORE” Technology found in our high-end displacement sensors.
This Technology enables the highest level of performance in the industry at an economical price.

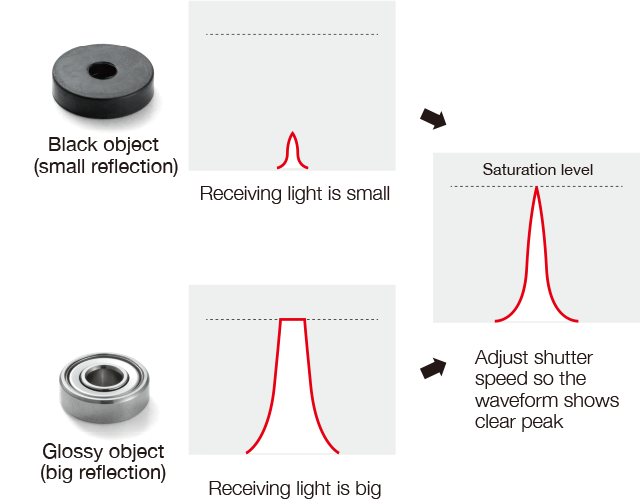

• High resolution electronic shutter

  Thanks to an automatic shutter speed adjustment function, the BGS-HL/-HDL series has the advantage of accurately detecting Black non-refl ective surfaces as well as shiny refl ective surfaces.
  The Automatic shutter speed adjustment function minimizes the error caused by differences in refl ectivity of object color and material.

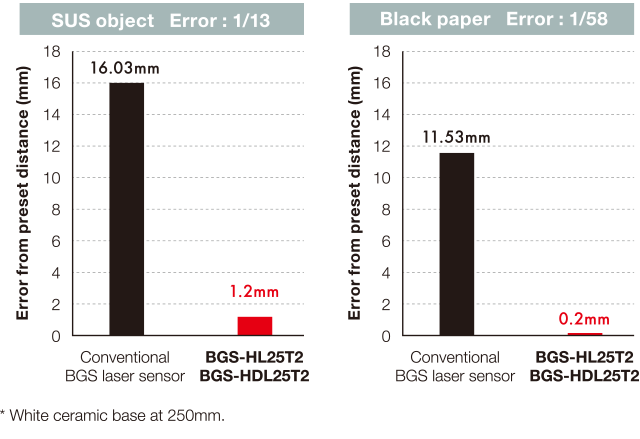

• Material response is improved incredibly

  The error of BGS-HL25T2/BGS-HDL25T2 is improved to 1/13 (SUS object) and 1/58 (Black paper) compared with conventional BGS laser sensor.

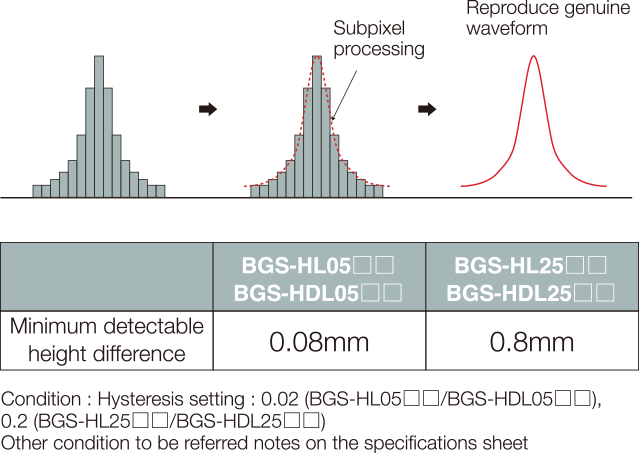

• Digital subpixel processing

  Subpixel processing divides one pixel into sub pixels and enables accurate detection of peak.



• Automatic sampling function

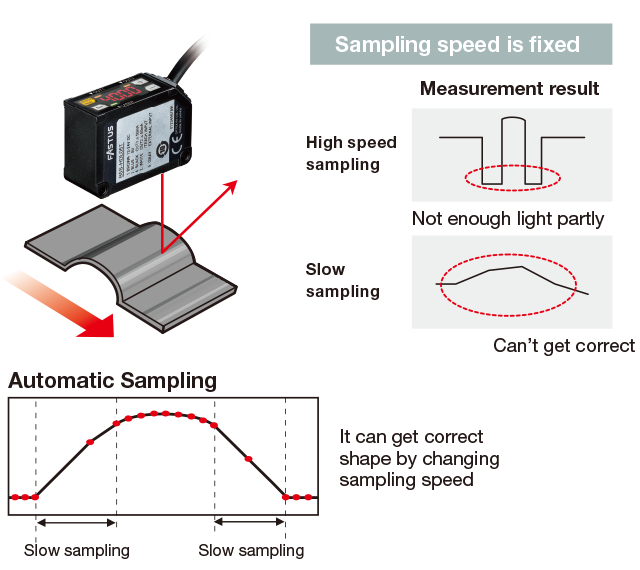

  In addition to standard feedback, received light to laser power, BGS-HL/-HDL has Automatic Sampling function which enables stable detection of metal surface and also black material by adjusting sampling speed.

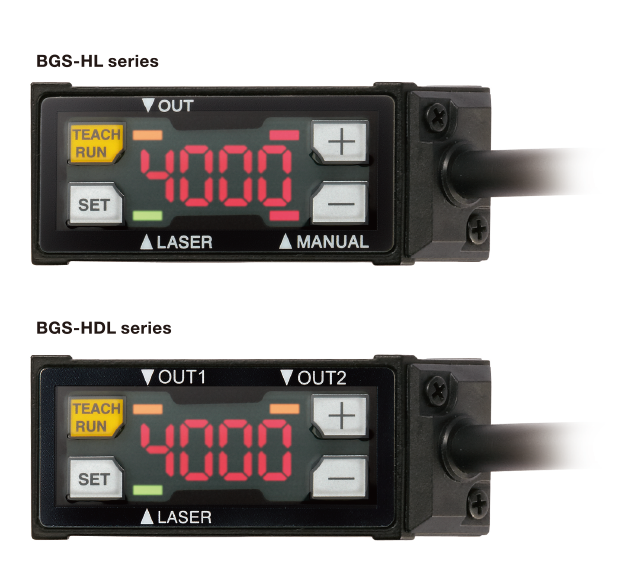

• Easy to see digital panel

  ・ 4-digit display in small case
  ・ Easy setup by 4 buttons
  ・ High-end functionality



• Ideal for robot mounting

  Ideal for mounting on robot cylinder thanks to compact dimensions and the light weight. IP67 water tightness is also secured.



The minimum detectable height difference of 0.08 mm (BGS-HL05☐☐/BGS-HDL05☐☐)

•

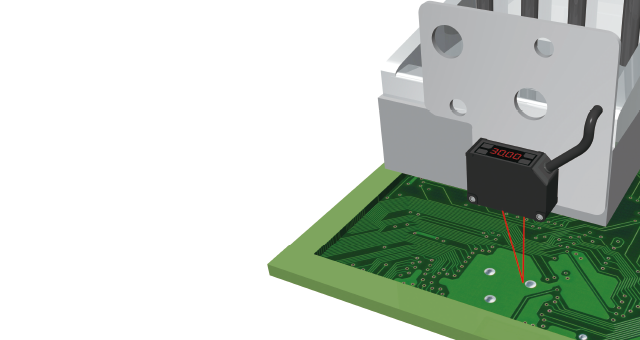

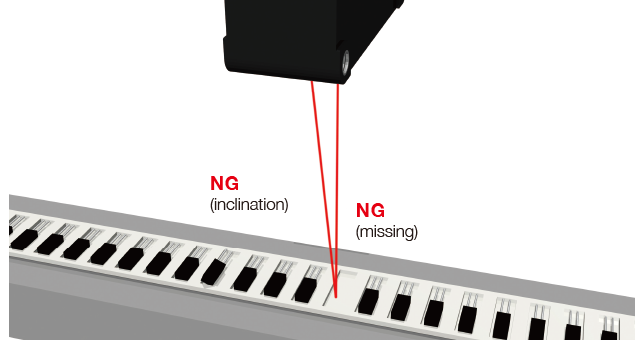

• Perfect for applications that require sensing the height difference of very thin parts, inclination, and overlap (seam) detection.

Introducing the dual-output BGS-HDL - the newest addition to
Optex FA's best-in-class lineup of height difference sensors

The newly added BGS-HDL model is equipped with two control outputs.
With support for upper and lower limit output or two-step output, applications that call for two sensors can now be covered with just a single sensor.

Two selectable distance display patterns (BGS-HDL function)

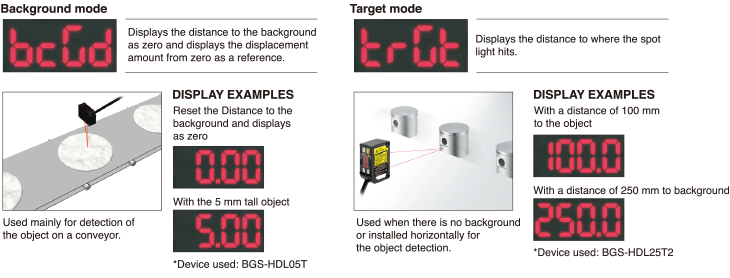

The digital panel for displaying distance on the sensor can be set to either Background mode (bcGd) or Target mode (trGt).
Select the display mode that makes seeing changes in distance easiest according to the application.

Switchable between Output 2 and Teach Input (BGS-HDL function)

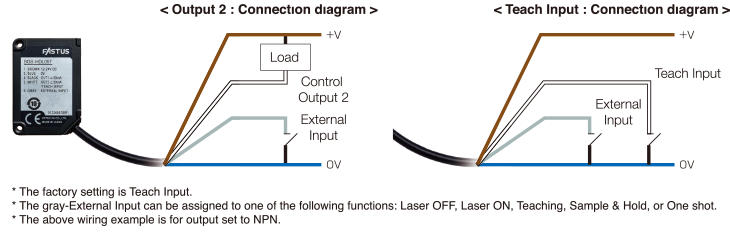

For BGS-HDL, it is possible to choose from Output 2 or Teach Input by changing the setting and wiring connection (White wire).
With this function, it enables dual input operations such as “Laser OFF” or “Sample & Hold”, in addition to Teaching at the same time.
