IO-Link Gateway

Some Fiber-Optic Sensors and displacement sensors have communication functions, but they cannot be connected to IO-Link as they are because of different communication standards and methods.

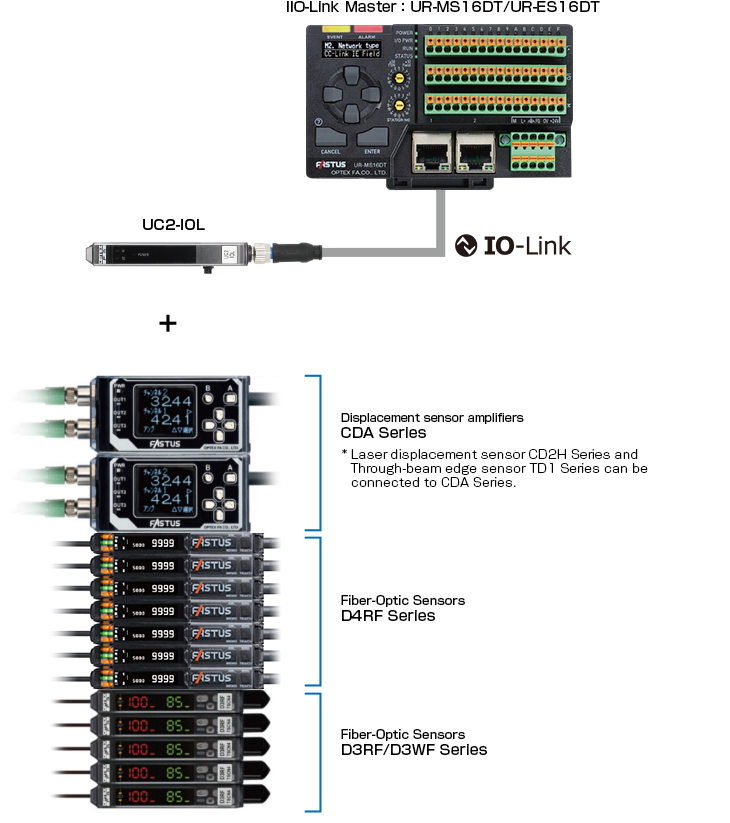

Using IO-Link gateway UC2-IOL, Fiber-Optic Sensors and displacement sensors that cannot communicate via IO-Link can be connected to IO-Link Master.

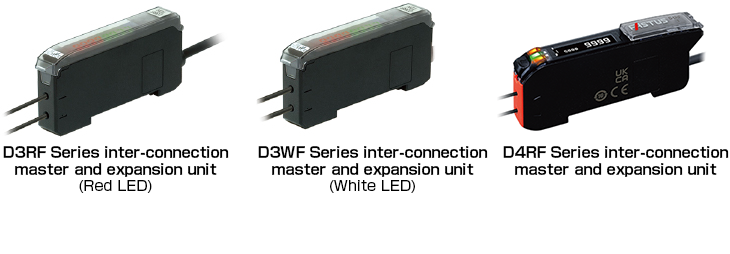

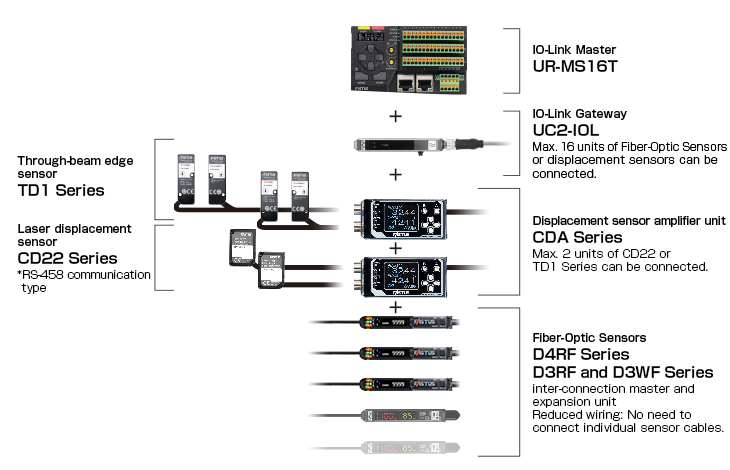

Connecting UC2 to CDA Series and D3RF/D3WF/D4RF Series

When inter-connection the UC2 to displacement sensor amplifiers CDA Series and D3RF/D3WF/D4RF Series Fiber-Optic Sensors, connect CDA, D4RF, D3WF, and D3RF in this order from the side closer to the UC2.
(It is possible to connect D4RF, CDA, D3WF, and D3RF in that order as well.)

• Compact design, same size as Fiber-Optic Sensors

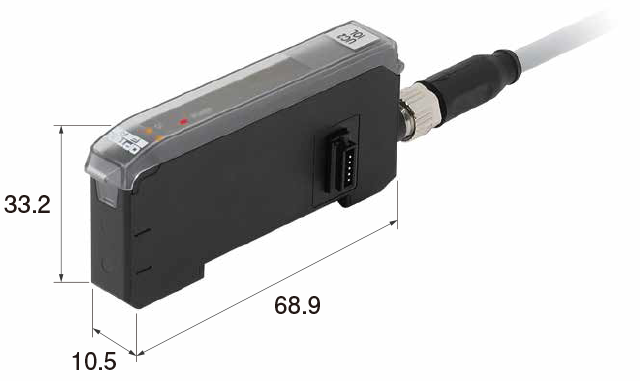

  Compact design: W10.5 x D68.9 x H33.2 mm
  It can be installed in a control panel in a space-saving manner.

•
