Discontinued Products
- This model has been discontinued.
For suitable alternatives, please feel free to contact us.
Sensing Bar Lighting
OPB-S Series
FALUX sensing” enables monitoring of brightness and feedback control
- Easily adjust multiple lighting elements at the same brightness using default brightness data and standard brightness data stored internally.
(diffuse-reflective type) - Adopts brightness fluctuation correction and high optical quality of the popular OPB Series.
Built-in “FALUX sensing” technology
-

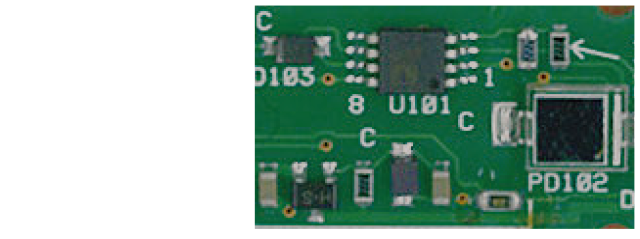

The built-in photodiodes make it possible to detect LED brightness. This allows for accurate measurement of LED brightness not only during continuous illumination but also with short period illumination. “FALUX sensing” also makes it possible to measure both the LED brightness of lighting and the internal temperature, and then to monitor those measurements on the power supply side.
Based on the monitored values, feedback control can also be performed from the OPPF Series controller.
-
-
Absolute brightness for simple instrumental error adjustment of multiple lighting elements
The factory default brightness and model-specific absolute brightness is stored in the internal memory and can be referenced from OPPF Series products.
This not only allows monitoring of changes in brightness but also enables easy instrumental error adjustment of multiple lighting elements by comparing the absolute brightness.
Succeeding the popular OPB Series in performance
Even with built-in sensor circuitry, the OPB-S Series adds only 3.5 mm in height. In addition to excellent optical properties,
users will appreciate brightness fluctuation correction made possible by “FALUX sensing” technology.
-
Structure
