Accessories

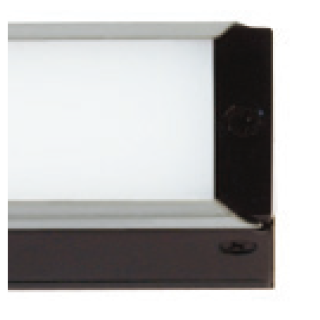

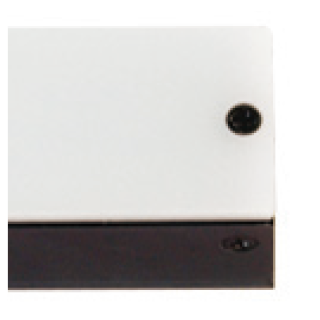

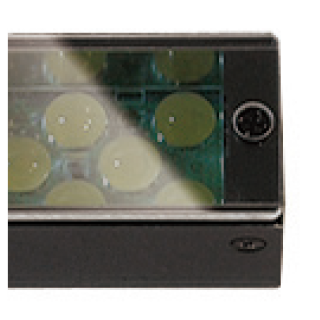

Diffusion plate(transmittance:60%)[for backlight]

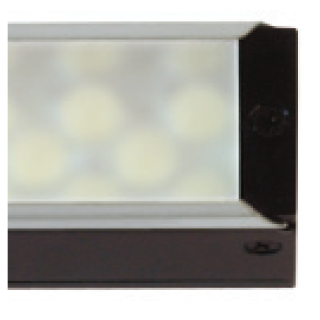

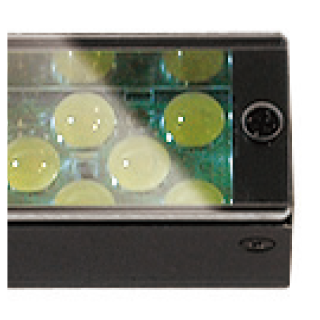

Diffusion plate(transmittance:80%)[For wide-area illumination]

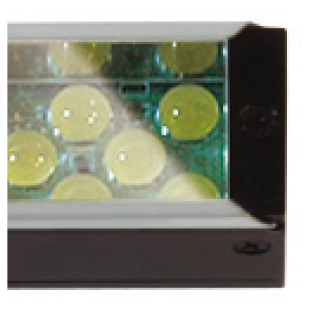

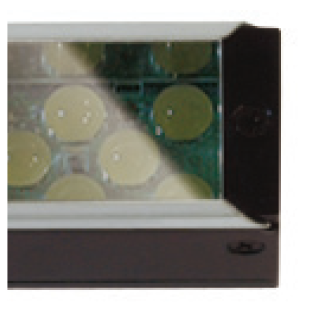

Transparent cover

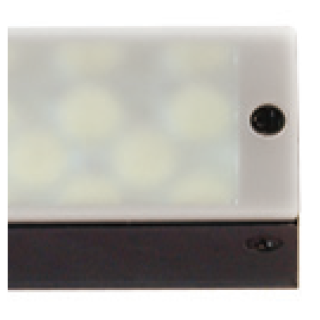

Polarizing plate

Remarks

  • The direction of polarization is parallel to the notches on the corners.

    When using multiple lighting units, refer to the figure to the right and mount the polarizing plates so that the notches are all parallel.

    Attach the included transparent covers so that they overlap on the polarizing plates during use.

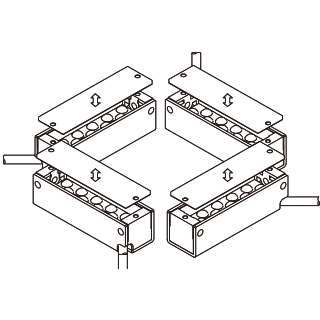

  • Reference diagram for mounting polarizing plates

Bracket

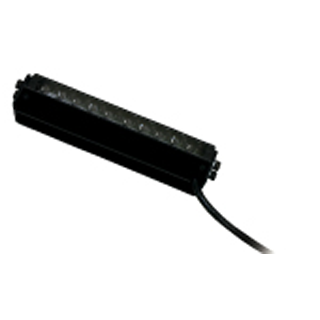

  • BKT-OPB-L

    Applicable Lighting: All OPB Series models

    Weight[g]: 20

    BKT-OPB-C50

    Applicable Lighting: OPB-5015

    Weight[g]: 20

    BKT-OPB-C100

    Applicable Lighting: OPB-10015

    Weight[g]: 30

    BKT-OPB-C150

    Applicable Lighting: OPB-15015

    Weight[g]: 40

    BKT-OPB-C200

    Applicable Lighting: OPB-20015

    Weight[g]: 50

Lighting angles can also be adjusted between 0 and 90°.
Mounting bolts are included.

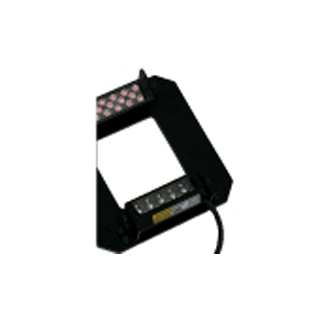

  • BKT-OPB-Q50

    Applicable Lighting: OPB-5015

    Weight[g]: 180

    BKT-OPB-Q100

    Applicable Lighting: OPB-10015

    Weight[g]: 200

Can be used for mounting up to four lighting devices.
Please prepare the same number of BKT-OPB-L brackets as the lighting devices to mount.
