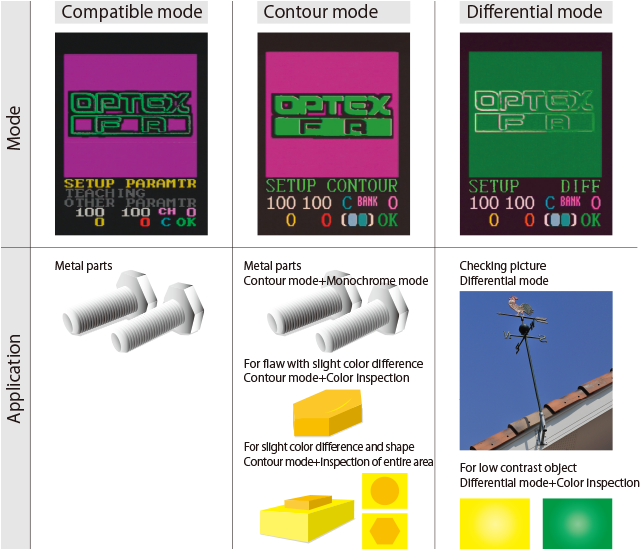

New inspection mode: Contour mode, Differential mode

New inspection mode, Contour mode and Differential mode have been added up on conventional CVS3-RA compatible mode. It has improved search function and improved color/contrast correct function.

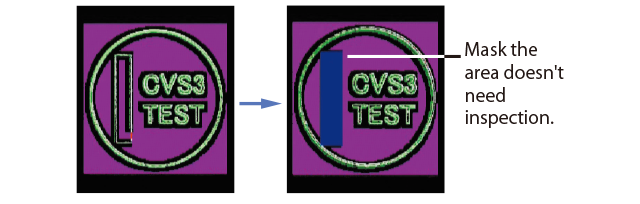

• Masking function

  You can mask the area that doesn't have to be checked so that you can get better sensitivity of inspection.

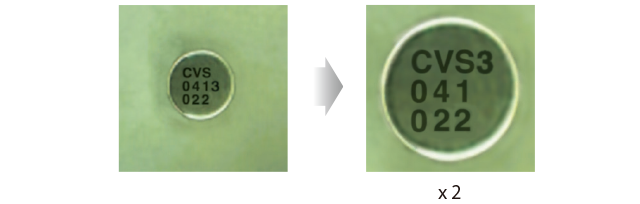

• Zoom function

  CVS3-RA has Zoom function so you can zoom in up to twice size.



• Downloading setup
  parameters to PC

  You can download setup data and reference image data into PC. You can copy the reference image data and the setup data to other CVS3-RA. Please use I/F cable CVS-C2C.

• Up to 15 Bank

  15 Banks are available in small all in one package.

• Other FOV type is available

  In case you need other FOV type like CVS1-RA or CVS2-RA, please contact our distributor.

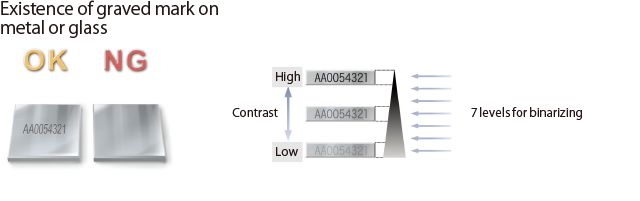

7 binarize level

•

• When it compares binarized image between registered image and captured image, it chooses best binarize level to get best image automatically. This is effective when the lighting is not stable.

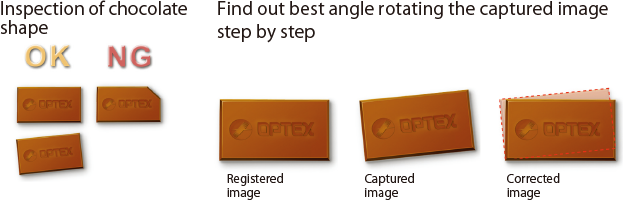

Rotate correction

•

• Correction of rotation is available up to +/- 6.2 degree.

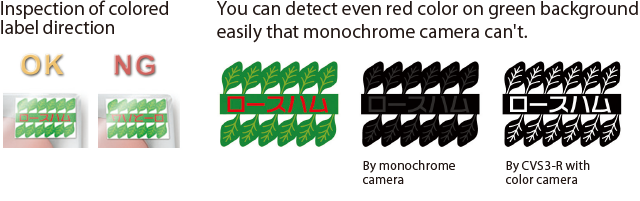

Detecting Color edge

•

• Detect edge between different colors and get clear image to inspect.

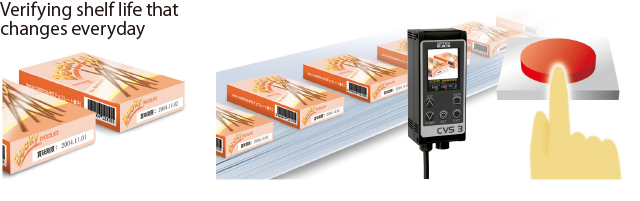

Easy Teaching

•

• You can externally teach CVS3-R just by inputting single Teaching signal.

  Then, CVS3-RA updates its image for reference automatically.
