Discontinued Products
- Some models in this product series have been discontinued.
Fiber-Optic Cables
NF Series Liquid/Water detection type
Fiber-Optic Cables for detecting liquid
- Lineup of liquid level detection and water detection devices
- A liquid accumulation prevention structure is used for all liquid level contact type models
Liquid level detection: Liquid level contact type
A liquid accumulation prevention structure is used for all liquid level contact type models.
Multi step tip design prevents accumulation of liquid at the tip of the sensor head. This design is useful for preventing malfunctions.

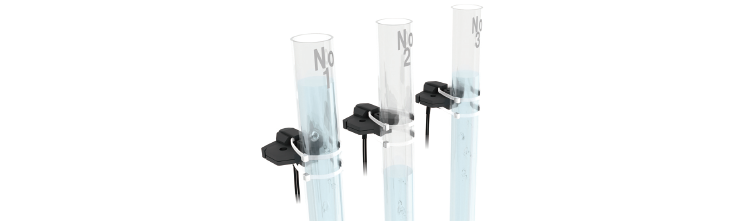

Liquid level detection: Pipe-mounted type
Mountable on transparent piping with an outer diameter of 6 to 26 mm and a wall thickness of 1 to 3 mm for detecting the upper level of the internal water surface. Offers heat resistance up to 100°C.
Equipped with a mounting position adjusting lever for easy installation.

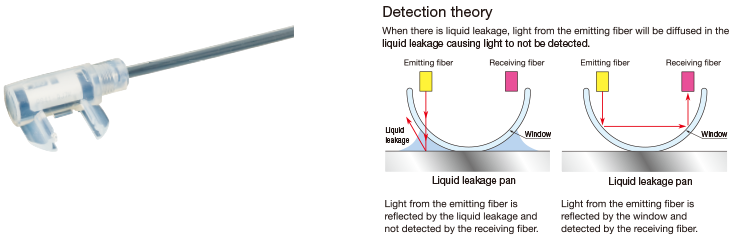

Liquid leakage detection
Detects leakage (liquid leakage) to liquid leakage pan: NF-DW02
Water detection fiber
-
Fiber-Optic cables specialized for D4IF Fiber-Optic Sensors for detection water. The detection of contents (through-beam type) or adhesives inside transparent bottles, as well as detection of colorless water or chemicals on the production is now possible.
-
