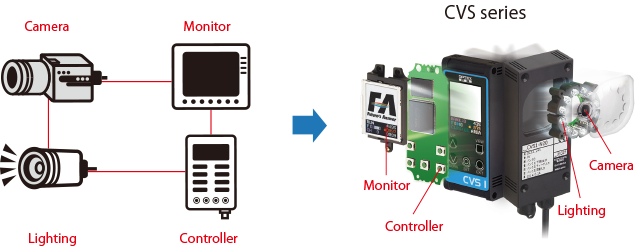

All in one

•

• The sensor has a built-in Camera, LED Lighting, Display monitor and Controller. This structure enables water resistance IP67.

• One threshold mode

  Determine OK when the area that the color matches exceeds the threshold.

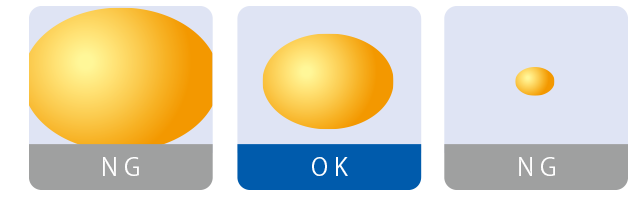

• Two threshold mode

  Determine OK when the area that the color matches is in two thresholds.



• Easy Teaching

  Teaching is easily done by moving the teaching cursor on the part that you want to teach the color and just set it.

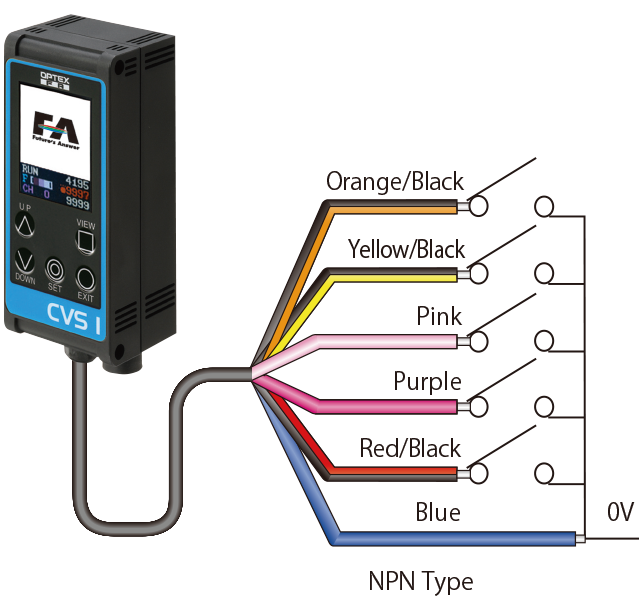

• Up to 16 Bank

  16 Banks are available in small all in one package.



• High Speed

  Newly developed vision processor enables high speed inspection

• Zoom function

  You can zoom in a part of the object. You can inspect 16 parts of the object changing Bank efficiently.

• Stable inspection

  It calculates color hue of each pixel that prevent miss-inspection.

• Wide coverage line-up

  You can choose from 4 inspection range/field of view according to inspection target condition

High performance by dedicated ASIC

• Setup Adjustable while line is running

  CVSE1-RA provides output with the setup parameters given even while you are adjusting setup. You don't have to stop the line.



• Lower Limit output

  You can see which the NG output is lower than lower threshold or higher than upper threshold.

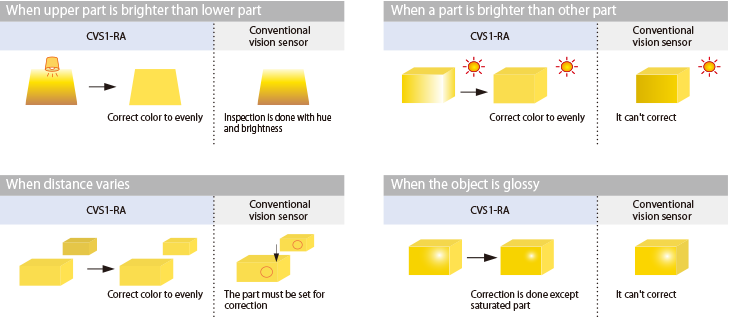

Stable inspection

It calculates color hue of each pixel that prevent miss-inspection affected by external light and brightness changes of lighting. Stable inspection is available and you can setup CVS1-RA just like you do for photoelectric sensor.
