Circuit Diagram

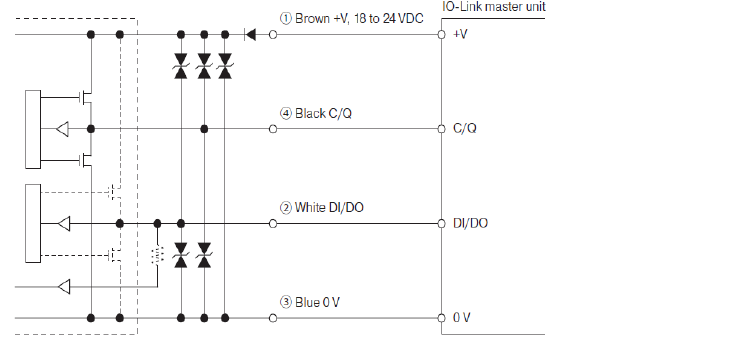

IO-Link mode

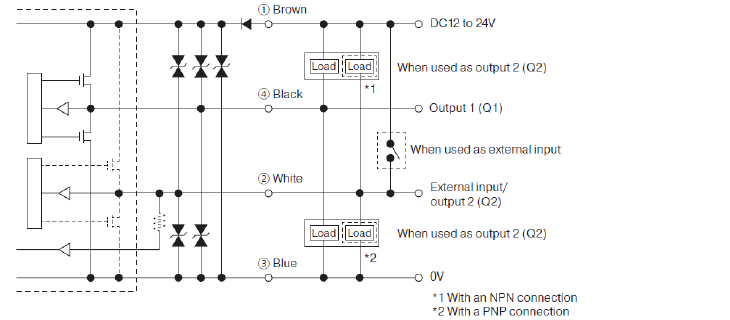

SIO mode (standard I/O mode) with push-pull

M8 connector cable

Connecting
■ Cut lead wires that are not used, wrap them individually with insulating tape, and do not allow them to come into contact with other terminals.
■ 1 to 4 are connector pin No..

Notes
■ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
■ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
■ Avoid using the transient state (Max. 2.5 s depending on the connected model) while the power is on.
