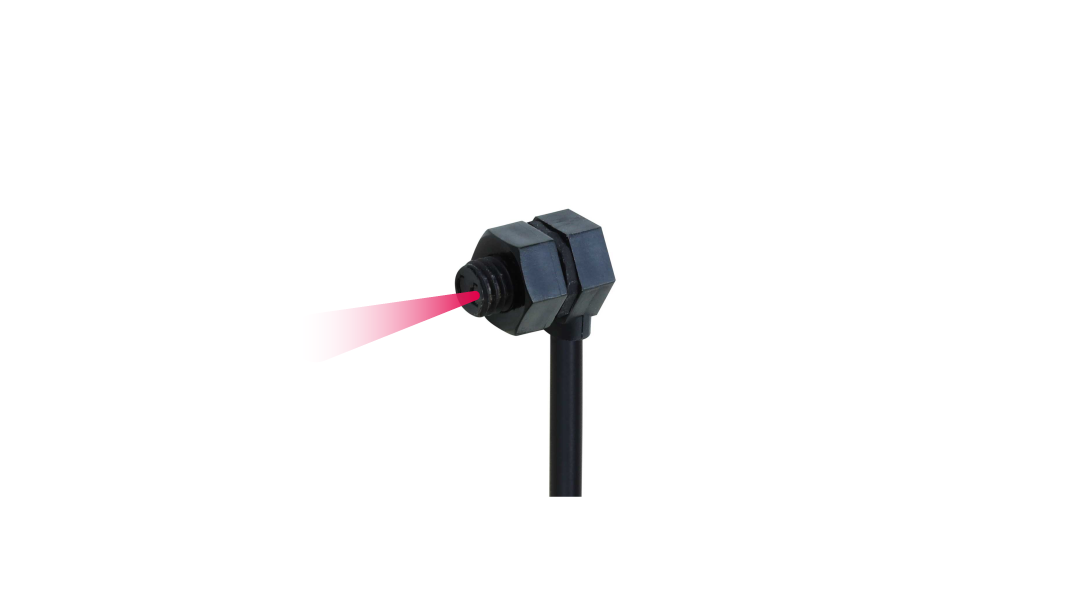

Specifications
| Part No. | 50967 |
|---|---|
| Model | NF25-DH |
| Category | Heat resistant type |
| Type | M6 Nut type |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Side view |
| Shape of fiber head | M6 14.4 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature | -40 ... +105°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 30.0 g |
| Included items | Fiber cutter |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
 |
540 (8 ms) 360 (2 ms) 255 (1 ms) 215 (500 μs) 175 (250 μs) 105 (70 μs) 35 (16 μs/22 μs) |
 |
450 (4 ms) 255 (1 ms) 160 (250 μs) 50 (50 μs) |
● The values on 1,000 x 1,000 mm white paper

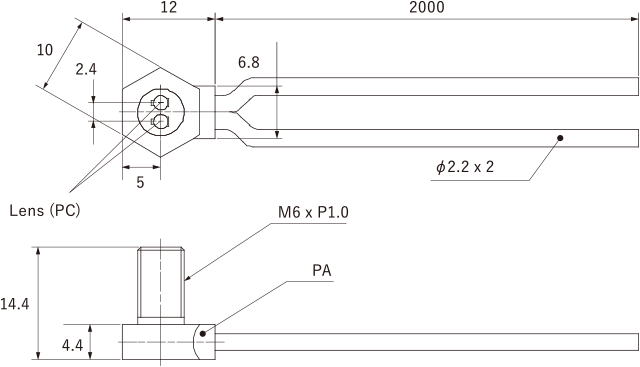

Dimensions
Unit: mm
Mounting Method
Usage notes
-

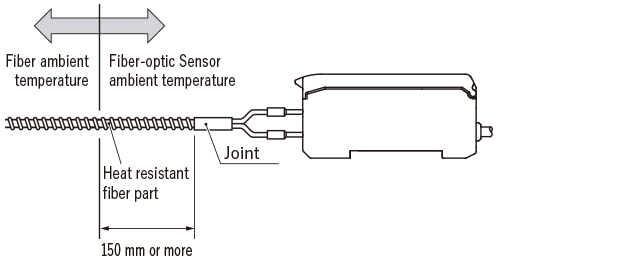

- In order to protect Fiber-Optic Sensor, keep the heat resistant fiber part at least 150 mm from the boundary of the ambient temperature as shown in the diagram below.
- Do not directly expose Fiber-Optic Sensor to radiation heat or hot air.
- The tip bracket of the heat resistant fiber (up to 350°C) and stainless steel sheath may change color when used at high temperatures, but this does not affect their detection capability.
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
