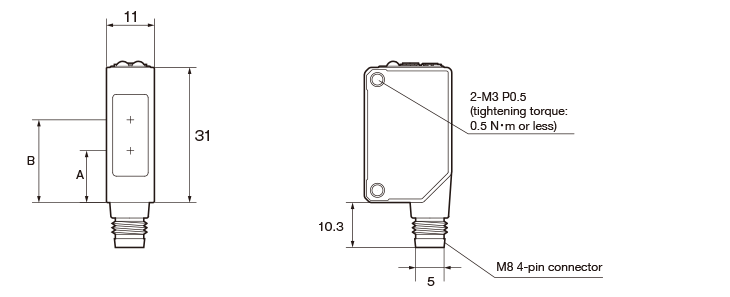

Dimensions

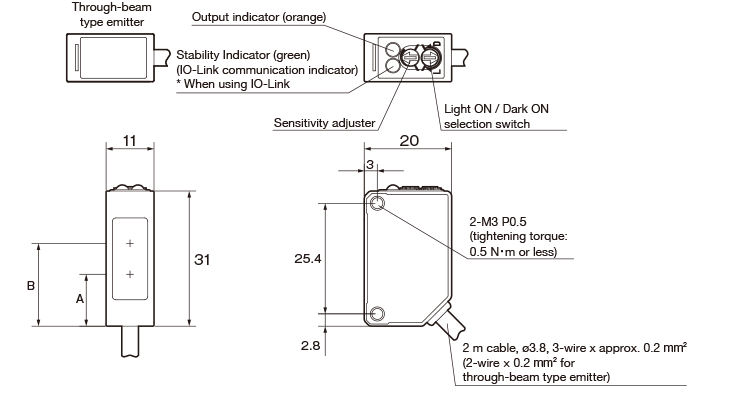

Cable type

• Type	A:Emitter optical axis	B:Receiver optical axis
  Through-beam	-	19(Emitter & Receiver)
  Retro-reflective	11.9	19
  Diffuse-reflective
  Limited diffuse-reflective		18.8
  Wide-angle diffuse-reflective

Reflector

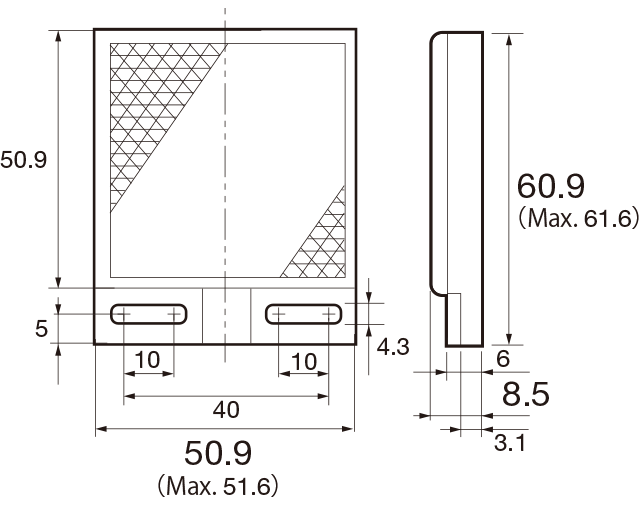

• V-61: Standard type reflector

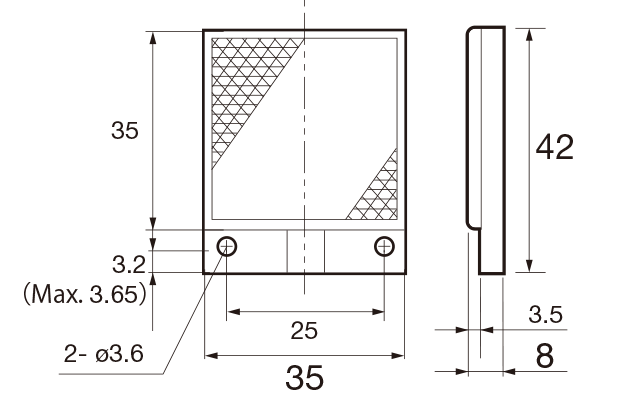

• V-42: Small reflector

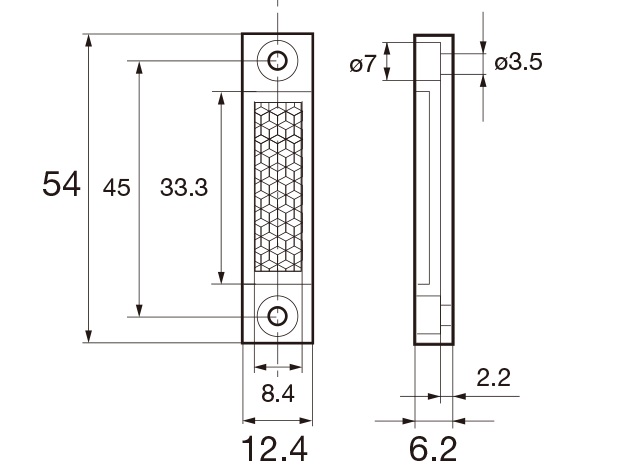

• P45A: Vertical type reflector

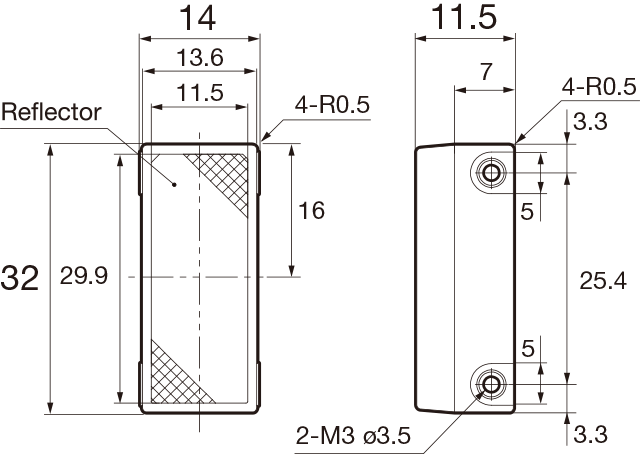

• P25: Side mount reflector

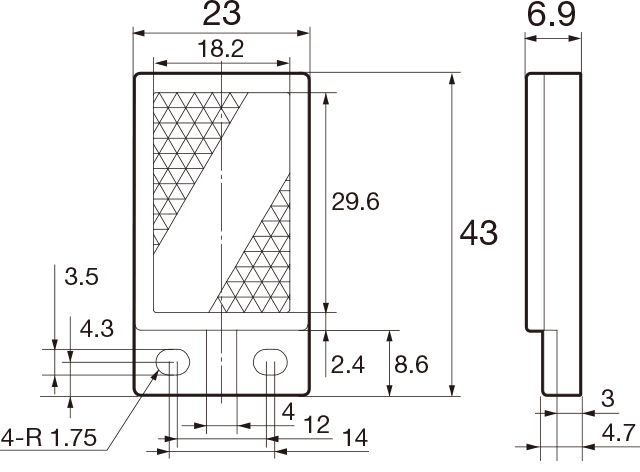

• V-30: Ultra-small reflector



Protective mounting bracket

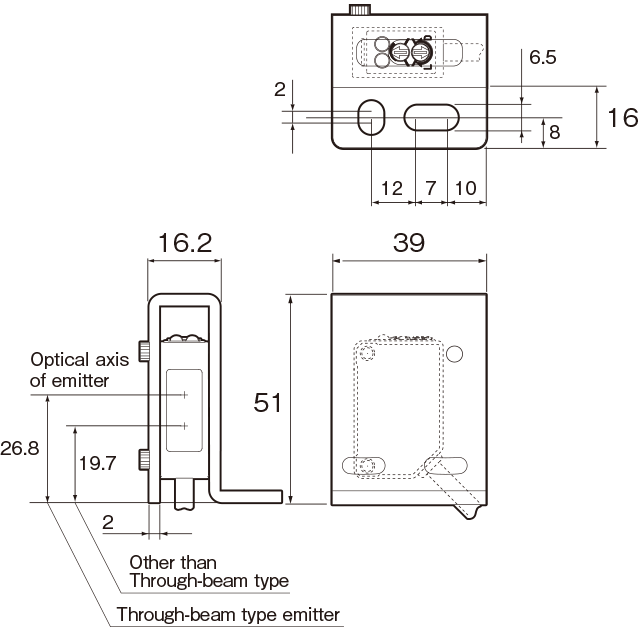

• LK-S01

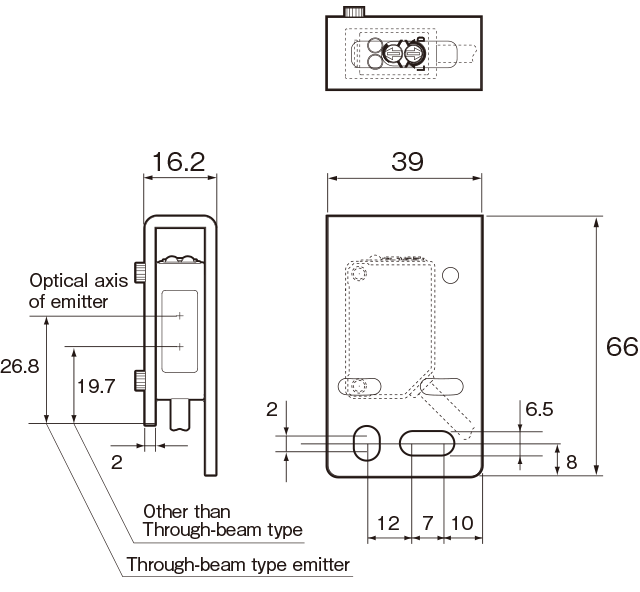

• LK-S02



Connector cable

• M84CN-2S
  M84CN-5S
  M84CN-10S



  Cable material: PVC
  Lead wire: 4 wires x 0.25 mm²
  L = 2000 (M84CN-2S)
     = 5000 (M84CN-5S)
     = 10000 (M84CN-10S)
  Minimum bending radius: R24 mm (when fixed in place)

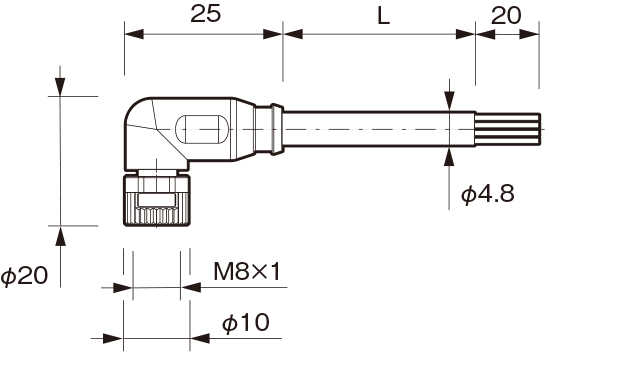

• M84CN-2L
  M84CN-5L
  M84CN-10L



  Cable material: PVC
  Lead wire: 4 wires x 0.25 mm²
  L = 2000 (M84CN-2L)
     = 5000 (M84CN-5L)
     = 10000 (M84CN-10L)
  Minimum bending radius: R24 mm (when fixed in place)

Slit mask

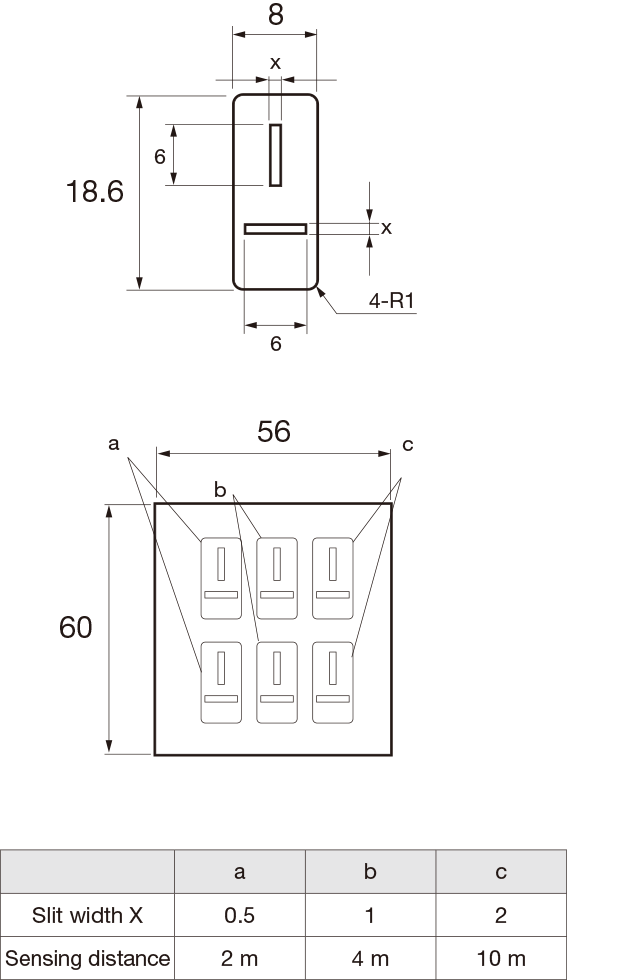

• BL-W100: Slit mask for through-beam type (adhesive type)

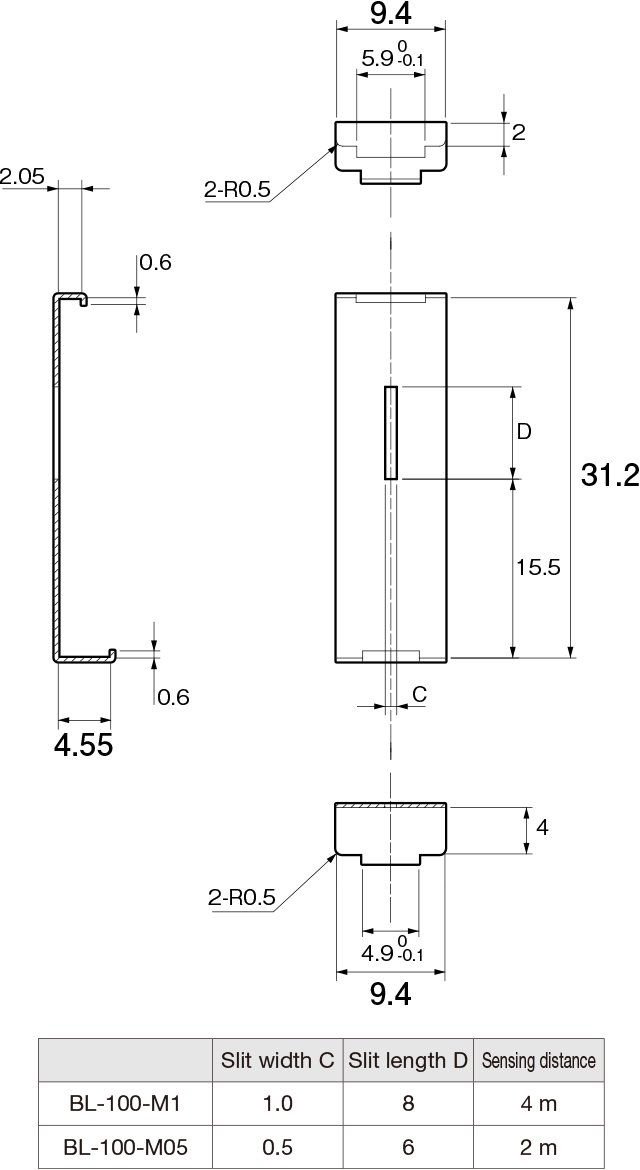

• BL-100-M1
  BL-100-M05: Stainless steel slit mask for through-beam type
