Circuit Diagram

I/O Circuit Diagrams

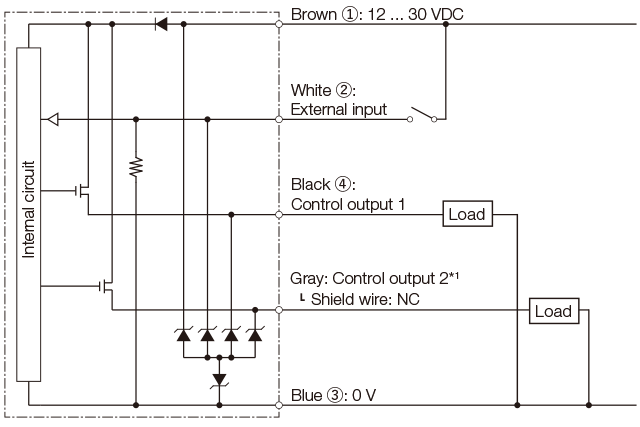

PNP setting

*1. Only for the 2-output type (ZA-BLxD)

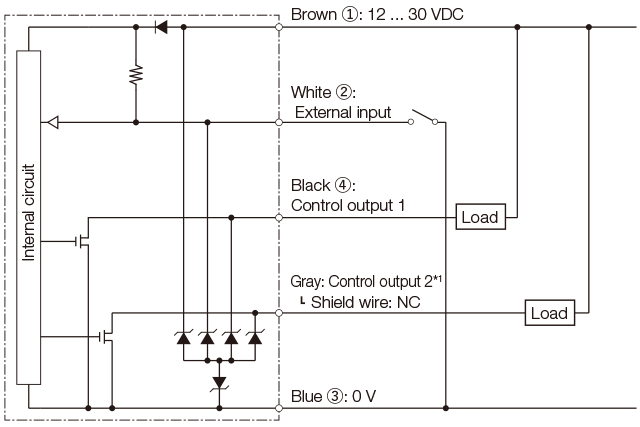

NPN setting

*1. Only for the 2-output type (ZA-BLxD)

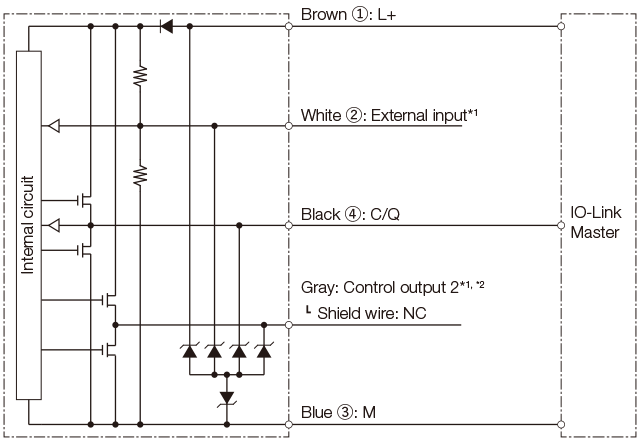

IO-Link setting

*1. For NPN/PNP settings, refer to NPN setting for NPN, and PNP setting for PNP.
*2. Only for the 2-output type (ZA-BLxD)
M12 connector pin assignments

① 12 ... 30 VDC ±10%
② External input
③ 0 V
④ Control output 1/IO-Link
