Specifications

Click here for the characteristic data.

Model Specifications

Model	1-output type	Cable type	ZA-BL60	ZA-BL150	ZA-BL300	ZA-BL500	ZA-BL1000
	1-output type	Pigtail type	ZA-BL60M	ZA-BL150M	ZA-BL300M	ZA-BL500M	ZA-BL1000M
	2-output type	Cable type	ZA-BL60D	ZA-BL150D	ZA-BL300D	ZA-BL500D	ZA-BL1000D
Sensing distance^*1			30 ... 60 mm	35 ... 150 mm	35 ... 300 mm	35 ... 500 mm	50 ... 1,000 mm
Distance display range			27 ... 70 mm	32 ... 170 mm	32 ... 330 mm	32 ... 550 mm	40 ... 1,100 mm
Display resolution			0.01 mm	0.1 mm	0.1 mm	0.1 mm	1 mm
Light source		Medium	Red semiconductor laser
		Wavelength	663 nm
		Maximum output	0.39 mW				1 mW
		Pulse duration	180 μs Max.
Laser class		JIS/IEC/FDA^*2	CLASS 1				CLASS 2
Spot size (Typical value)^*3			Approx. 1.7 x 0.7 mm at 60 mm	Approx. 2.1 x 0.8 mm at 150 mm	Approx. 5.1 x 1.8 mm at 300 mm	Approx. 5.8 x 2.1 mm at 500 mm	Approx. 7.6 x 2.7 mm at 1,000 mm
Repeat accuracy^*4 (Response time: 50 ms)			0.01 mm	0.05 mm	0.2 mm	0.5 mm	2.0 mm

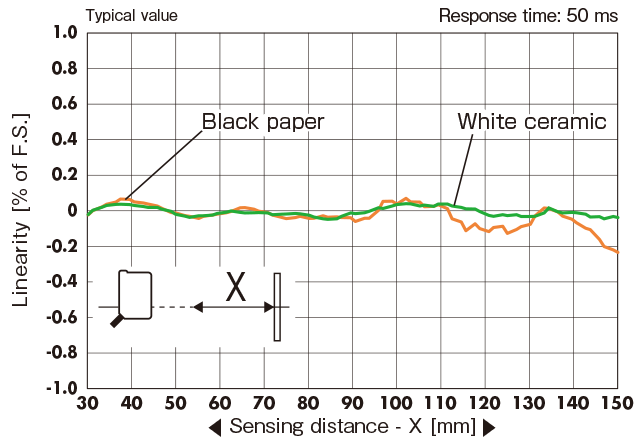

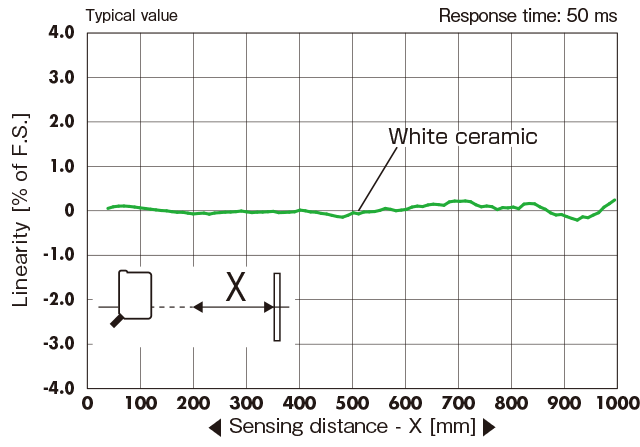

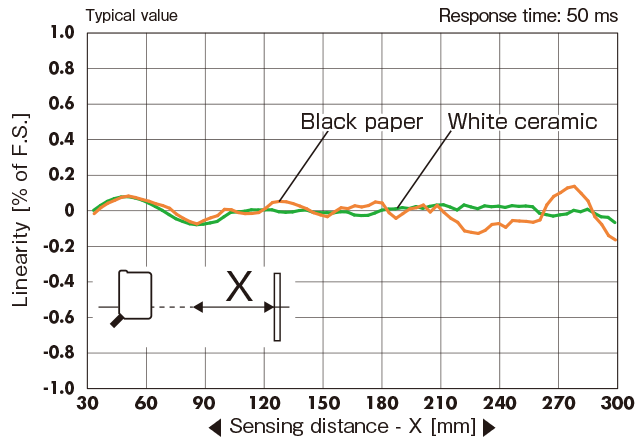

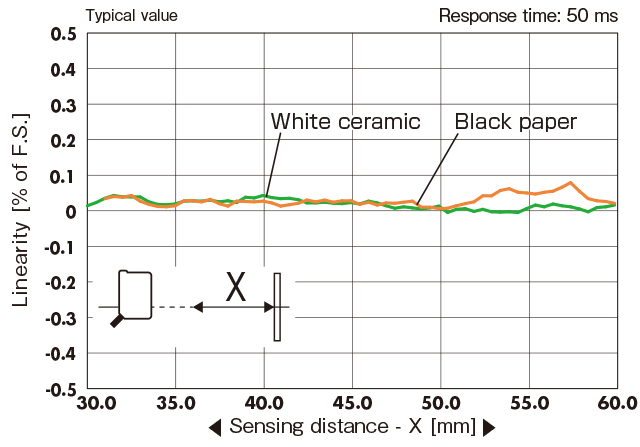

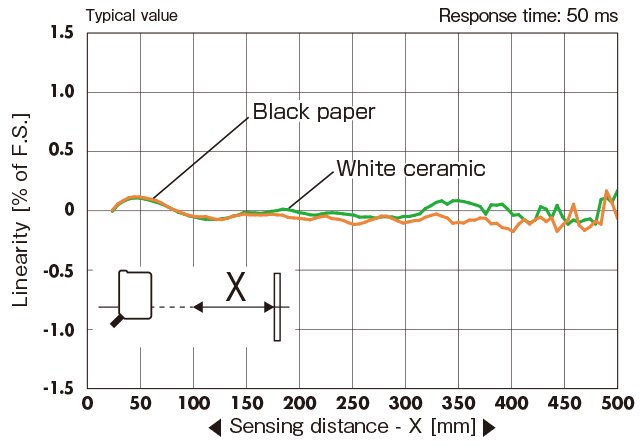

Linearity			±0.1 % of F.S.	±0.2 % of F.S.	±0.3 % of F.S.	±0.7 % of F.S.	±1.6 % of F.S.
Converted value of linearity			±0.03 mm	±0.23 mm	±0.8 mm	±3.3 mm	±15.2 mm
Minimum detectable step^*5			0.08 mm	0.6 mm	2.0 mm	7.6 mm	36.0 mm

*1: Using our standard measured object (white ceramic).
*2: In accordance with the FDA provisions of Laser Notice No. 56, the laser is classified per the IEC 60825-1:2014 standard.
*3: Defined with center strength 1/e² (13.5 %) at the center of the measurement range. There may be leak light other than the specified spot size.
The sensor may be affected when there is a highly reflective object close to the detection area.
*4: Peak to peak value of measurement in stationary state.
*5: Minimum detectable step equivalent to twice the hysteresis. Hysteresis equivalent to (linearity/2) + repeat accuracy.
For the ZA-BL60, the hysteresis is 0.04 mm, calculated as: ±0.1 % of F.S. (±0.03 mm)/2 + 0.01.

Common Specifications

Supply voltage		12 ... 30 VDC ±10 % (including ripple), IO-Link mode: 18 ... 30 VDC ±10 % (including ripple)
Current consumption		40 mA or less at 24 VDC
IO-Link	Revision	1.1.4
	Baud rate	COM 3 (230.4 kbps)
	Process data length	Input: 4 bytes, Output: 1 byte
	Minimum cycle time	0.6 ms
Control output		1 output or 2 outputs (model dependent); Output 1 can be switched to IO-Link. NPN/PNP open collector (selectable by setting) Max. 50 mA/30 VDC, Residual voltage 1.8 V or less
Output mode		NO/NC (selectable by setting)
Timer function		ON Delay/OFF Delay/One-shot (selectable by setting) adjustable 0 ... 9,999 ms
Sensitivity adjustment		Various teaching and manual adjustments Teach mode: 1-point/Window/2-point/Dynamic/1-window/3-point/FGS 1-point^1/Transparent 1-point^1
Response time		1 ms/10 ms/20 ms/50 ms
External input		Laser OFF/Laser ON/Teach/Zero Set/Count Reset/Synchronous (selectable by setting)
Display	Digital display	OLED display 60 x 32 pixels, Menu languages: English, Japanese, Simplified Chinese
Display	Indicators	Laser emission indicator (lit green), Output indicator (lit orange/blinking orange), Status indicator (lit green/blinking green/lit orange/blinking red)
Connection	1-output type	Cable type: ø4.5 mm 2 m cable, Pigtail type: ø4.5 mm 300 mm cable with M12 4-pin connector Minimum bending radius: cable diameter x 8 (when fixed in place and movable)
Connection	2-output type	Cable type: ø4.5 mm 2 m cable, Minimum bending radius: cable diameter x 8 (when fixed in place and movable)
Protection circuit		Reverse connection protection, overcurrent protection
Environmental resistance	Degree of protection	IP67 (IEC 60529)
	Ambient temperature/humidity	-10 ... +55°C/35 ... 85%RH (no freezing or condensation)
	Storage temperature/humidity	-20 ... +60°C/35 ... 85%RH (no freezing or condensation)
	Ambient illuminance	Color temperature: 2,750K, Incandescent light: 30,000 lx
	Vibration resistance	10 ... 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, Z directions
	Shock resistance	500 m/s² (Approx. 50 G), 3 times in each of the X, Y, Z directions
Applicable regulations	EMC	EMC Directive (2014/30/EU), UK EMC (Electromagnetic Compatibility Regulations 2016), FCC Part 15 subpart B
	Environment	RoHS Directive (2011/65/EU), China RoHS (MIIT Order No. 32) UK RoHS (The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012)
	Safety	FDA Regulations (21 CFR 1040.10 and 1040.11) Excluding differences per Laser Notice No. 56
Protection against electric shock		Class III (IEC 61140)
Applicable standards		EN 60947-5-2, IEC 60825-1
NRTL certification		UL Recognized Component certification for the US and Canada
Warm-up time		Approx. 30 minutes
Material		Housing: PC, Front cover: PC
Weight		1-output type; Cable type: Approx. 75 g, Pigtail type: Approx. 35 g, 2-output type; Cable type: Approx. 80 g

*1. Only output 1 can be set.

● Specifications are subject to change without prior notice.

Precautions for Laser Use

● This product emits a Class 1 or Class 2 visible laser beam that is compliant with IEC 60825-1 laser product safety standards.
Labels for applicable standards are affixed to the product.
● If this product will be exported to the United States, approval must first be obtained from the FDA (Food and Drug Administration), the laser regulating body of the United States.
● A report for this product has been submitted to the CDRH (Center for Devices and Radiological Health).
● Use of controls or adjustments or performance of procedures other than those specified in the instruction manual may result in hazardous radiation exposure.

Type of laser used in this product
