Standard-sized Amplifier Built-in SensorsZ4 Series

DOWNLOAD

Industry standard sensors with IO-Link supported

  • Industry standard-sized amplifier built-in sensors
  • IO-Link supported: Connectable to various field networks via IO-Link Master
  • Enhanced ambient illuminance resistance against sunlight, incandescent and LED lights

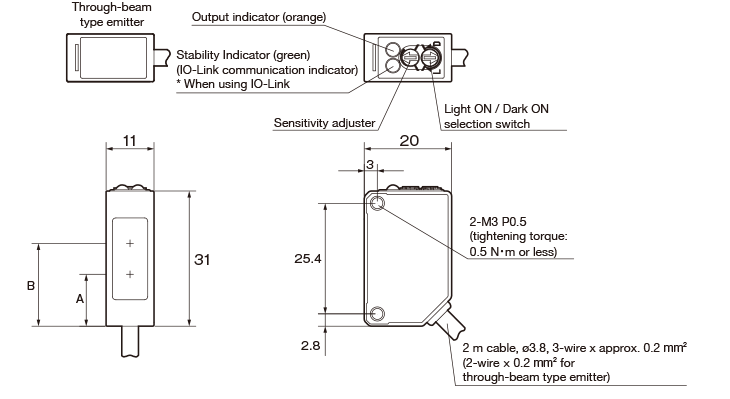

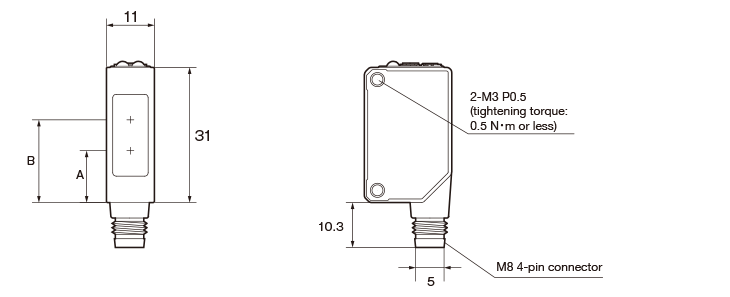

Z4 Series

Options/Accessories

Reflector

  • Standard

    V-61

    60.9 x 50.9 mm
    Sensing distance:
    Z4R-400□
    0.01 to 4 m

  • Small type

    V-42

    42 x 35 mm
    Sensing distance:
    Z4R-400□
    0.01 to 2.4 m

  • Vertical type

    P45A

    54 x 12.4 mm
    Sensing distance:
    Z4R-400□
    0.01 to 1.4 m

  • Side-mounted

    P25

    32 x 14 mm
    Sensing distance:
    Z4R-400□
    0.01 to 1.6 m

  • Ultra-small

    V-30

    42 x 23 mm
    Sensing distance:
    Z4R-400□
    0.01 to 2.2 m

Reflective sheet

  • Diamond grade
    sheet

    Sensing distance: Z4R-400□ 0.1 to 1 m
    100 x 100 mm
    (adhesive type)

Connector cables

  • Straight

    M84CN-2S

    Cable length: 2 m

    M84CN-5S

    Cable length: 5 m

    M84CN-10S

    Cable length: 10 m

    Minimum bending radius: 24 mm
    (When fixed in place)
  • L-shaped

    M84CN-2L

    Cable length: 2 m

    M84CN-5L

    Cable length: 5 m

    M84CN-10L

    Cable length: 10 m

    Minimum bending radius: 24 mm
    (When fixed in place)

Mounting bracket

  • For cable type
    Floor-mounted

    BEF-W100-B

  • For connector type
    Back-mounted

    BEF-W100-A

    Cannot be used with
    connector M84CN-□L

  • For cable type
    Floor-mounted

    BEF-W100-C

Protective mounting bracket LK series

  • LK-S01

    • Ultra-durable 2 mm thick type
    • Rust-resistant stainless steel
    • Sensor is firmly secured using M3
    Hex socket head cap screws
    •The bracket is also firmly secured using M6 screws

  • LK-S02

    • Ultra-durable 2 mm thick type
    • Rust-resistant stainless steel
    • Sensor is firmly secured using M3
    Hex socket head cap screws
    •The bracket is also firmly secured using M6 screws

Slit/filter

  • Slit mask

    Slit mask for through-beam type (adhesive type)

    BL-W100

    Shipped with two of each slit width (0.5 mm, 1 mm, 2 mm).

  • Stainless steel slit mask

    Stainless steel slit mask for through-beam type

    BL-100-M1-10pcs BL-100-M05

    10 pieces of slit masks are shipped for M1 with a slit width of 1 mm, and 2 piece of slit mask is shipped for M05 with a slit width of 0.5 mm.

  • Anti-interference filter for through-beam type

    BL-100-POLF

    POL filter, vertical and horizontal, 2 sets of each
    Max. sensing distance: 12 m
