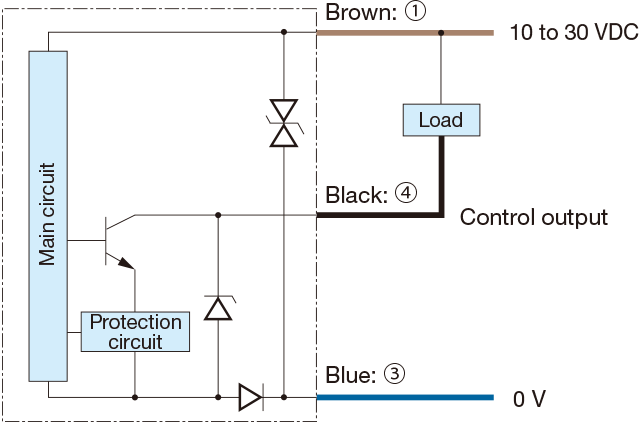

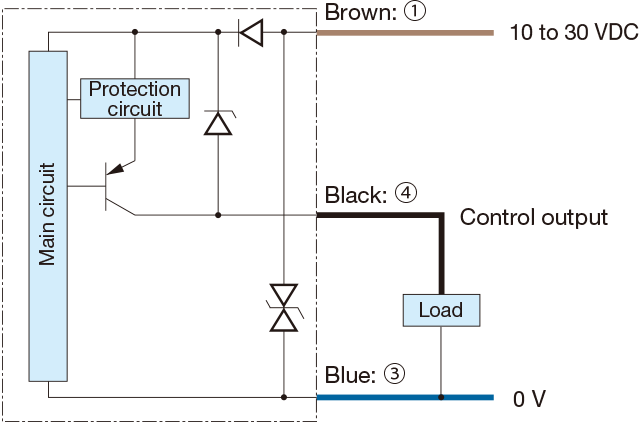

Output circuit diagram

Z3R-Q200☐

• NPN output type



• PNP output type



ZR-QX200☐

• NPN output type



• PNP output type



• Connector type

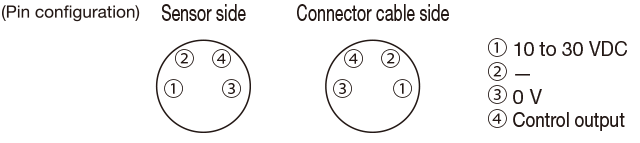

• Connecting

  ▪1 to 4 are connector pin No.

  Notes

  ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  ▪ Avoid using the transient state while the power is on (approx. 100 ms).

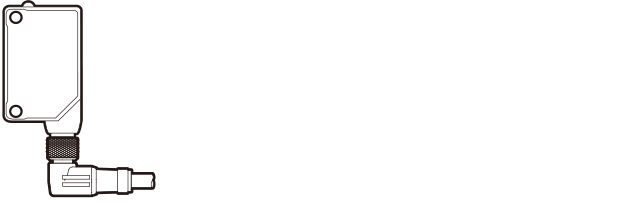

  ▪ The connector direction is fixed as in the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.



Sensor

Connector cable (optional)

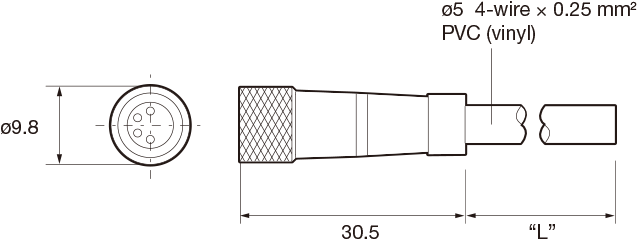

• JCN-S, JCN-5S, JCN-10S

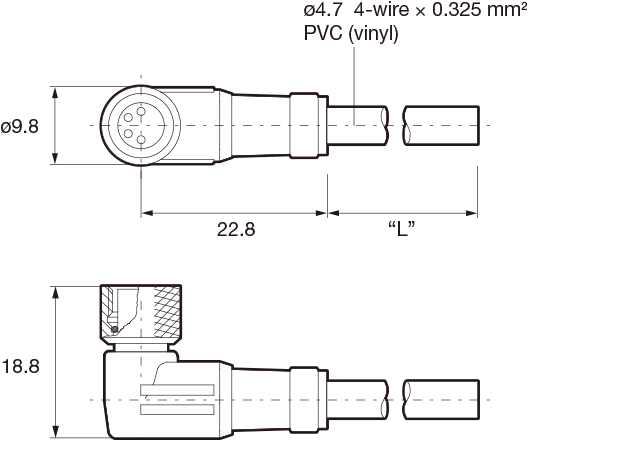

• JCN-L, JCN-5L, JCN-10L



Successor models

• M84CN-2S, M84CN-5S, M84CN-10S



• M84CN-2L, M84CN-5L, M84CN-10L



Mounting bracket

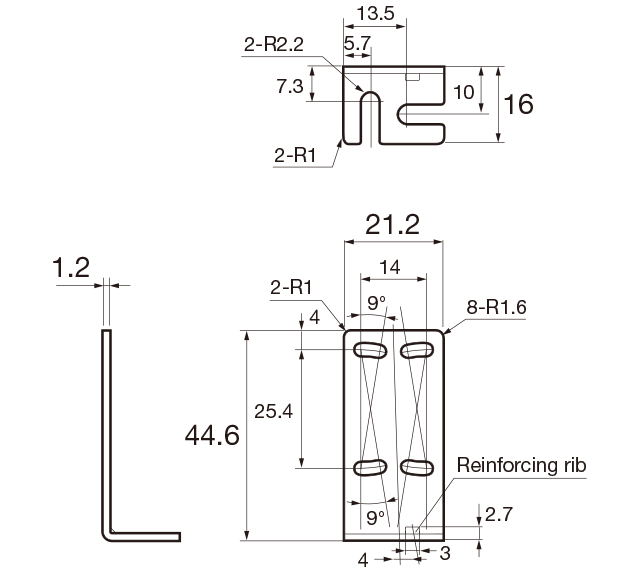

• BEF-W100-B

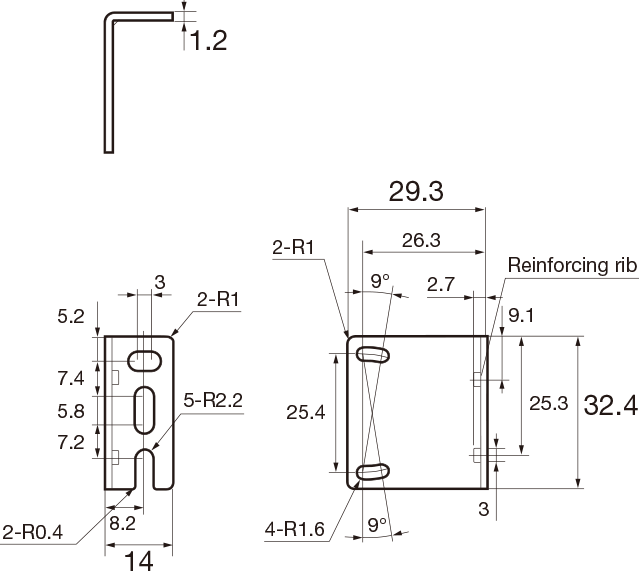

• BEF-W100-A

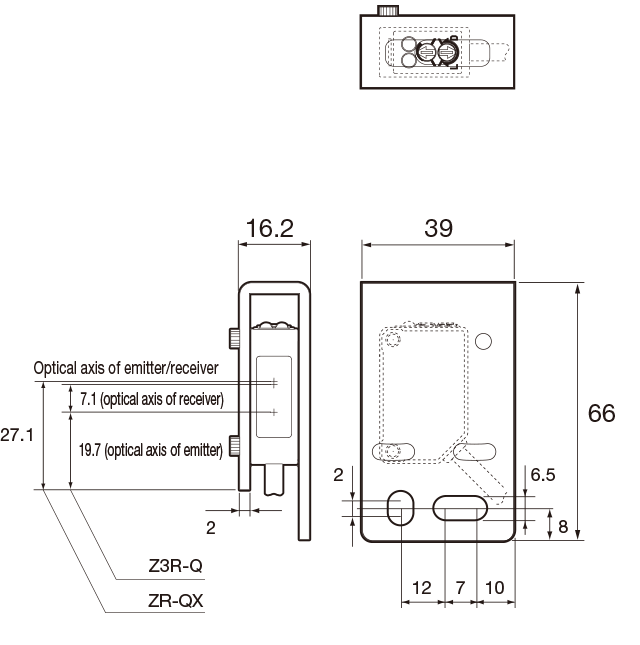

Protective mounting bracket

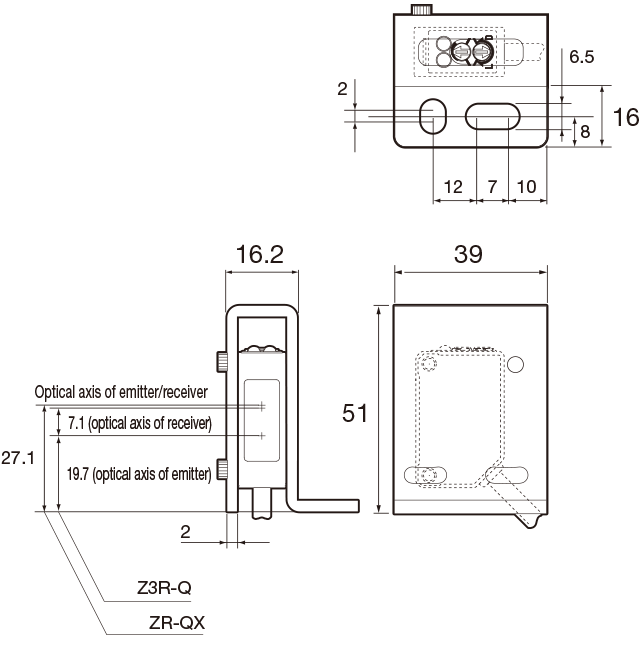

• LK-S01



• LK-S02



Reflectors for Z3R-Q

• V-61: Standard type reflector



• V-42: Small reflector

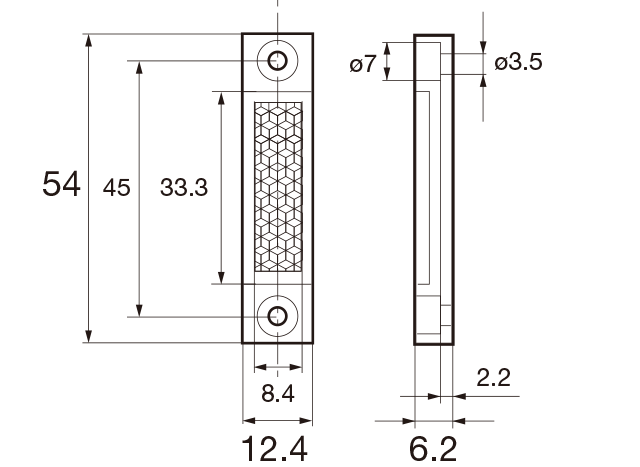

• P45A: Vertical type reflector

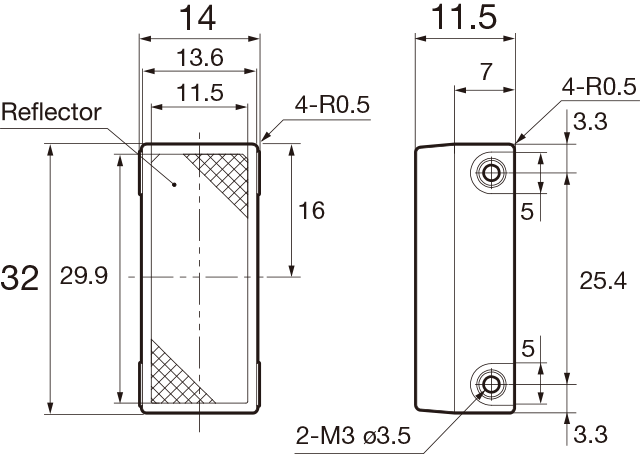

• P25: Side mount reflector



• V-30: Ultra-small reflector



Reflectors for ZR-QX

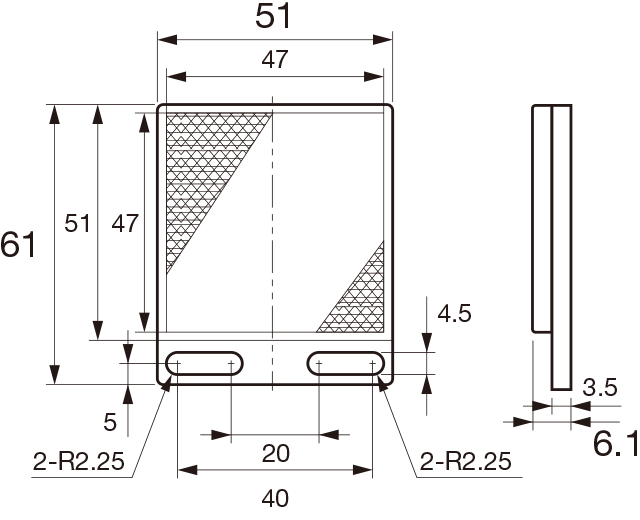

• P250F (included)

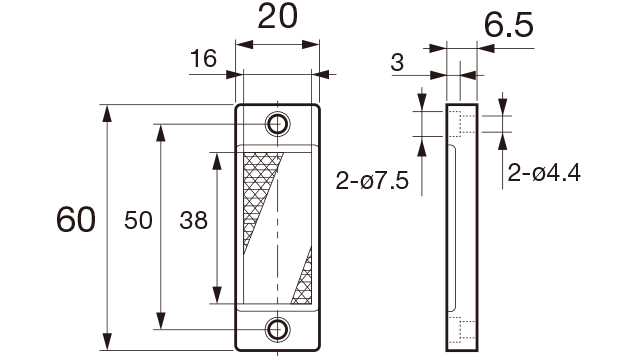

• PL20F (optional)

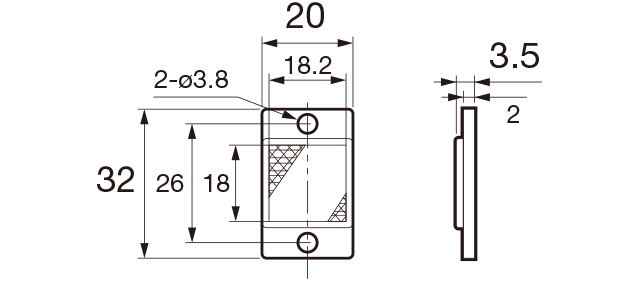

• PL10F (optional)
