Standard-sized LED SensorsZ3R-Q/ZR-QX Series

DOWNLOAD

Low cost type and coaxial type transparent object detection sensor

  • Long range detection at 2 m
  • Uses red LED for simple light axis adjustment
  • Industry standard size
Z3R-Q/ZR-QX Series

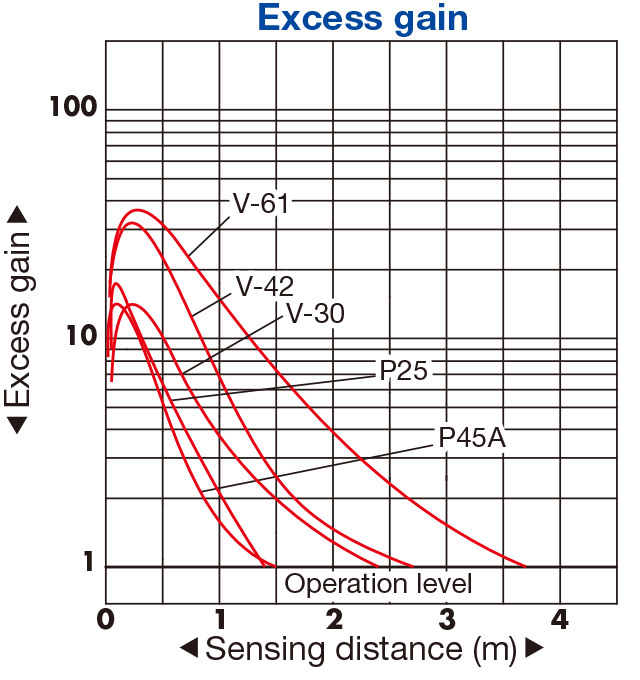

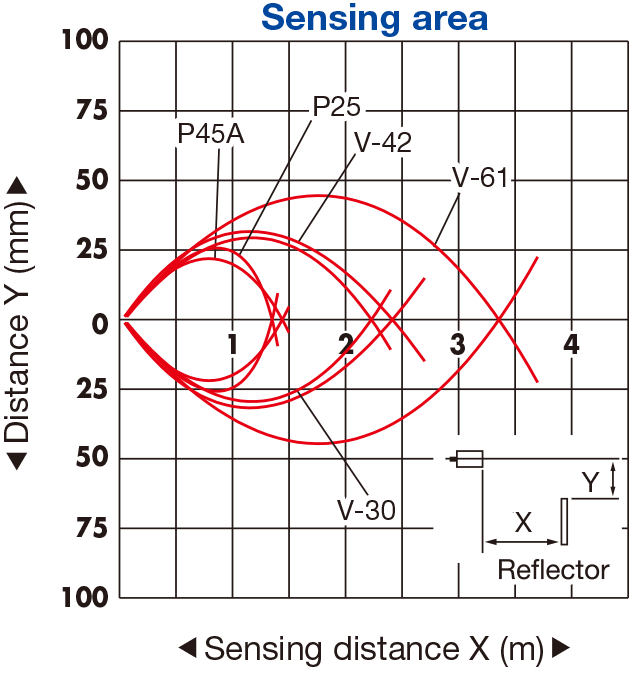

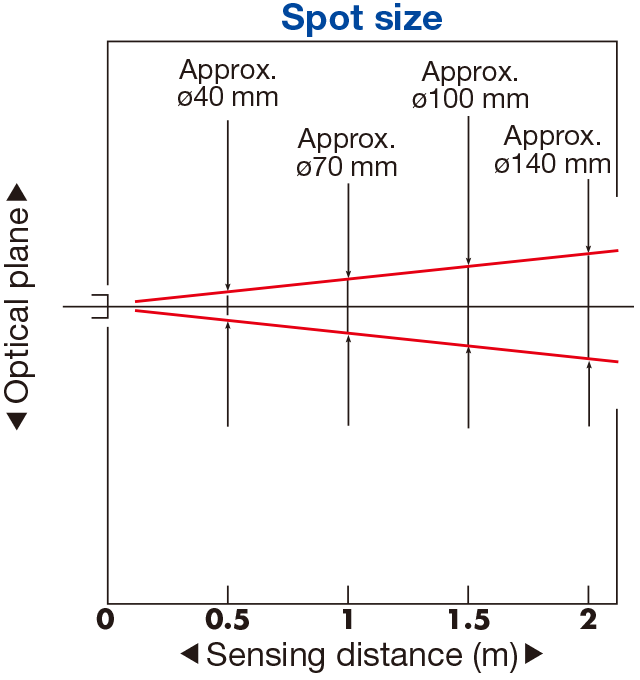

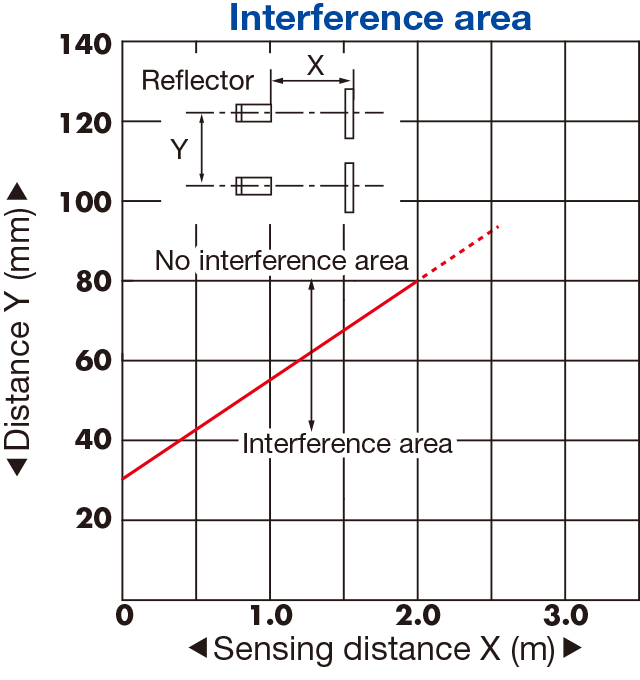

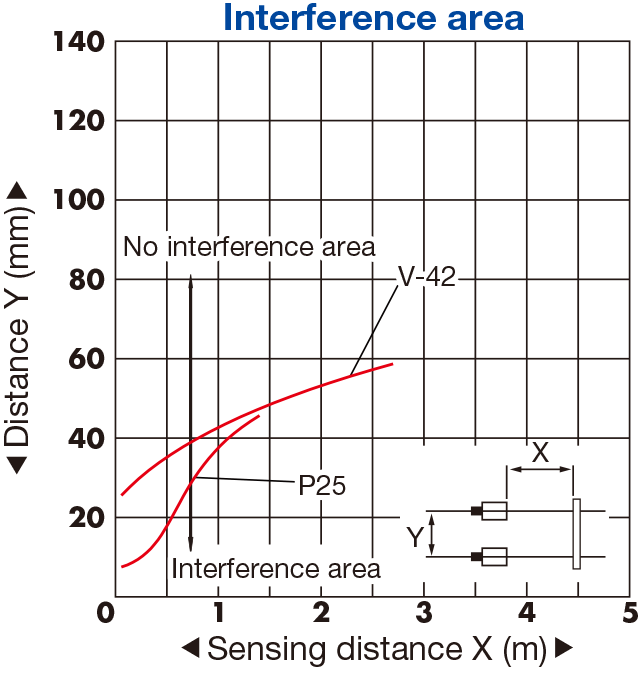

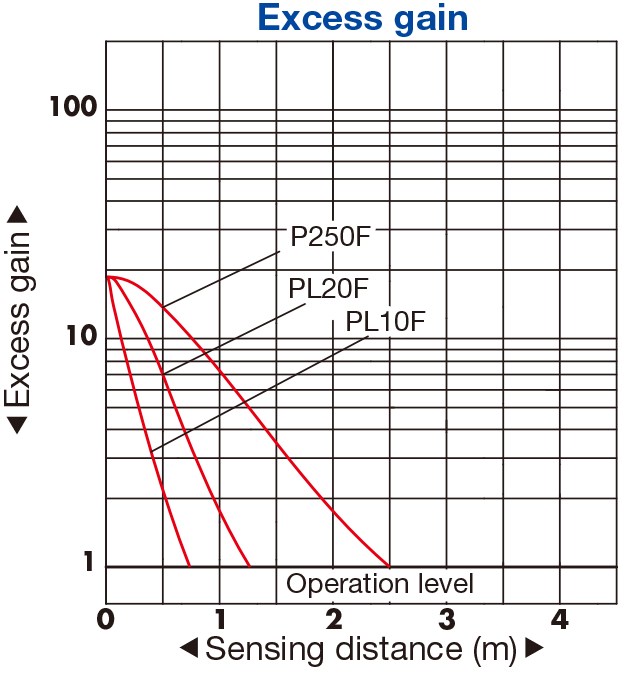

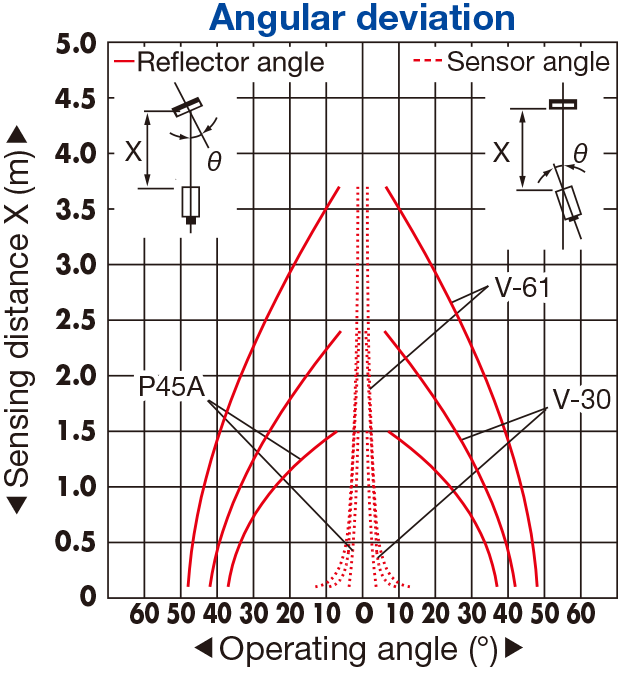

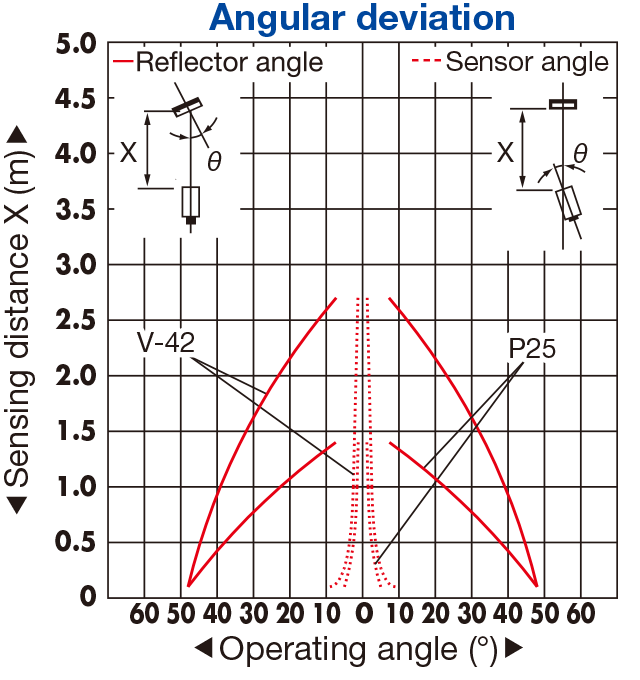

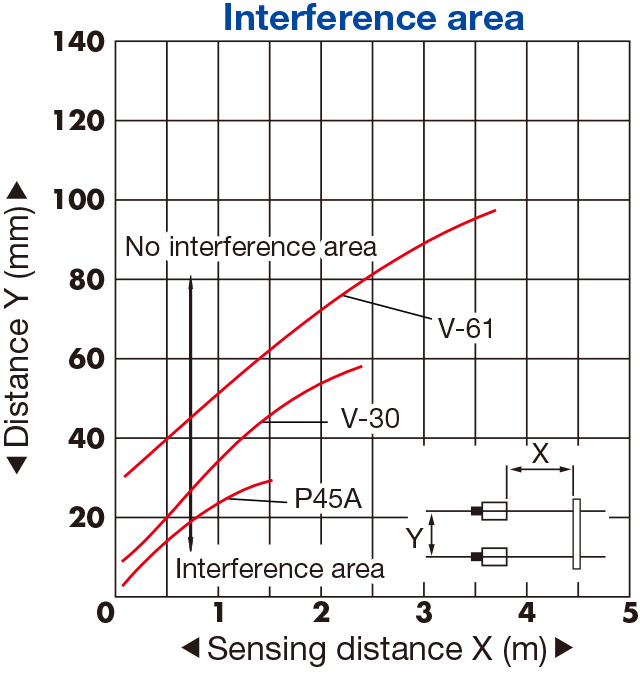

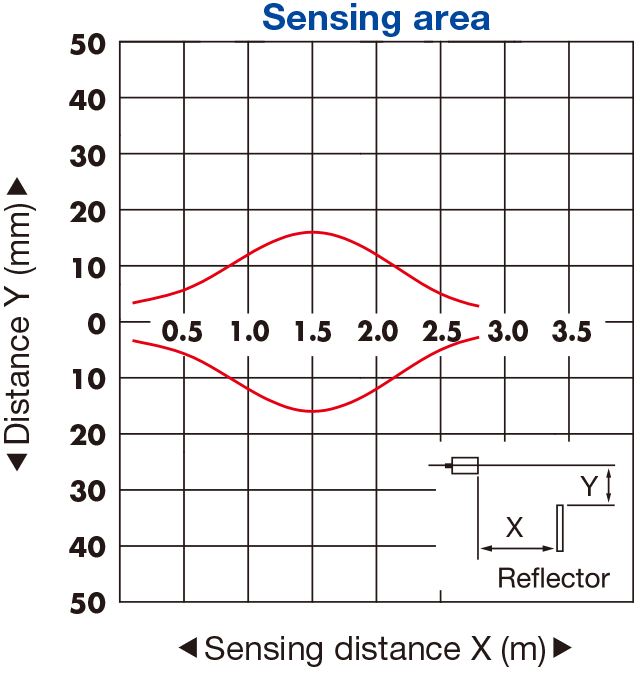

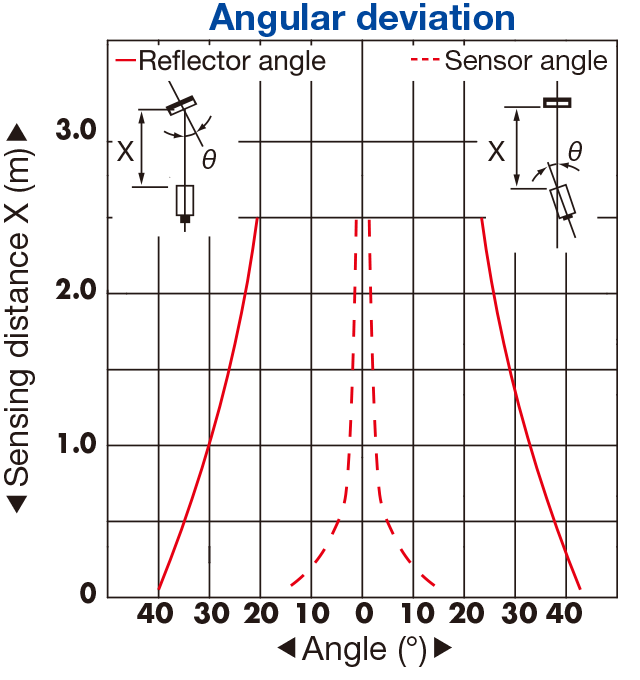

Typical characteristic data

Z3R-Q200☐

ZR-QX200☐
