Standard-sized LED SensorsZ3R-Q/ZR-QX Series

DOWNLOAD

Low cost type and coaxial type transparent object detection sensor

  • Long range detection at 2 m
  • Uses red LED for simple light axis adjustment
  • Industry standard size
Z3R-Q/ZR-QX Series

Options/accessories

Reflectors for Z3R-Q

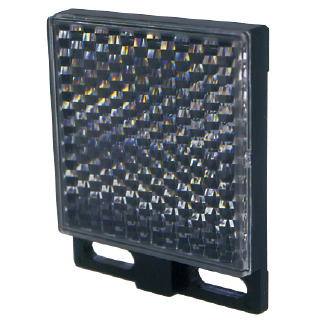

  • Standard

    V-61

    Sensing distance:
    0.01 to 2 m
    60.9 × 50.9 mm

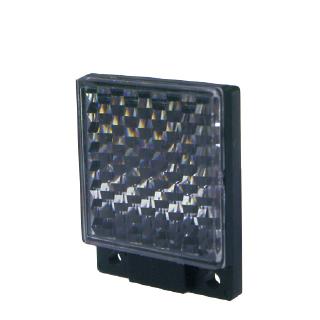

  • Small

    V-42

    Sensing distance:
    0.01 to 1.4 m
    42 × 35 mm

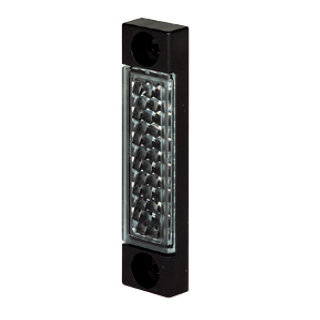

  • Vertical type

    P45A

    Sensing distance:
    0.01 to 0.7 m
    54 × 12.4 mm

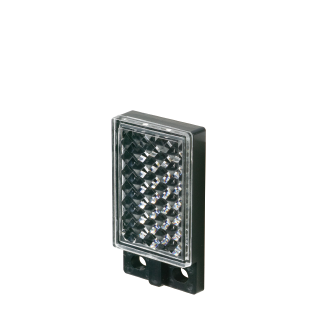

  • Ultra-small

    V-30

    Sensing distance:
    0.01 to 1.2 m
    42 × 23 mm

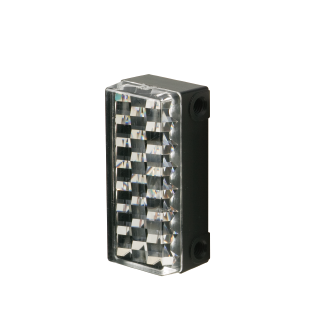

  • Side mount

    P25

    Sensing distance:
    0.01 to 0.7 m
    32 × 14 mm

  • Reflectors for ZR-QX

    • Standard
      (included in ZR-QX)

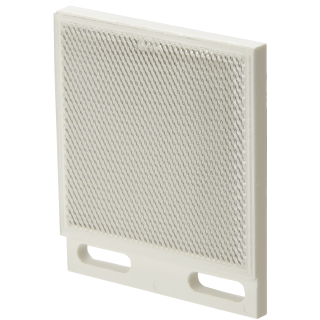

      P250F

      Sensing distance:
      2 m 61 × 51 mm

    • Small

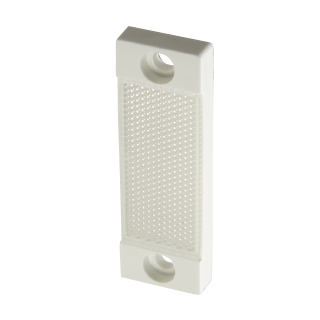

      PL20F

      Sensing distance:
      1 m 60 × 20 mm

    • Ultra-small

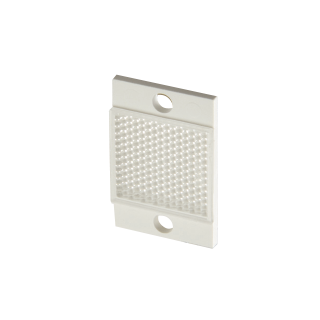

      PL10F

      Sensing distance:
      500 mm 32 × 20 mm

    Connector cablesDiscontinued and successor models of connector cables

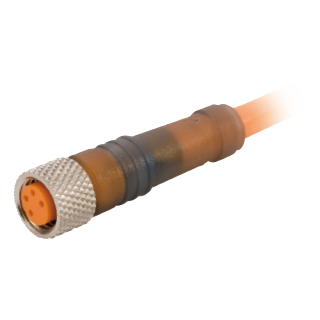

    • Straight

      JCN-S

      Cable length: 2 m

      JCN-5S

      Cable length: 5 m

      JCN-10S

      Cable length: 10 m

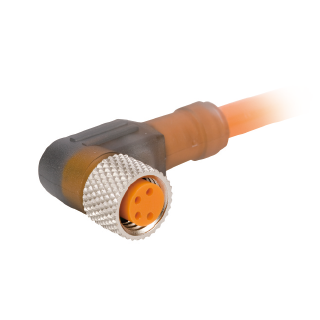

    • L-shaped

      JCN-L

      Cable length: 2 m

      JCN-5L

      Cable length: 5 m

      JCN-10L

      Cable length: 10 m

    Successor models

    • Straight

      M84CN-2S

      Cable length: 2 m

      M84CN-5S

      Cable length: 5 m

      M84CN-10S

      Cable length: 10 m

    • L-shaped

      M84CN-2L

      Cable length: 2 m

      M84CN-5L

      Cable length: 5 m

      M84CN-10L

      Cable length: 10 m

    Mounting bracket

    • For cable type
      Floor-mounted

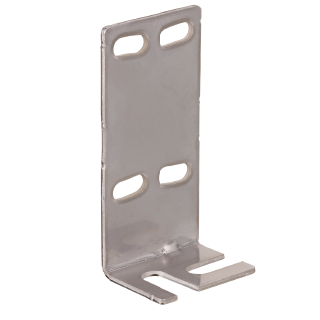

      BEF-W100-B

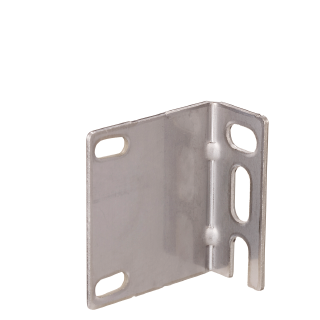

    • For connector type
      Back-mounted

      BEF-W100-A

    Protective mounting bracket LK series

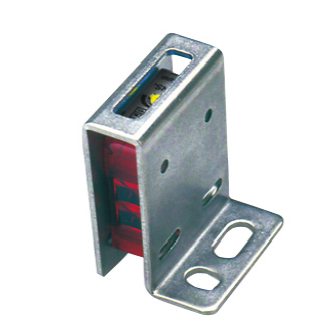

    • LK-S01

      • Ultra-durable 2 mm thick type
      • Rust-resistant stainless steel
      • Sensor is fi rmly secured using M3 Hex socket head cap screws
      • The bracket is also fi rmly secured using M6 screws

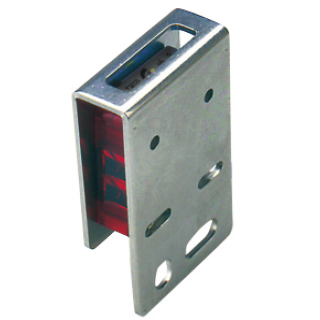

    • LK-S02

      • Ultra-durable 2 mm thick type
      • Rust-resistant stainless steel
      • Sensor is fi rmly secured using M3 Hex socket head cap screws
      • The bracket is also fi rmly secured using M6 screws
