Stainless Protector/Small TypeKR-Q/SR-Q Series

DOWNLOAD

Industry's standard of transparent object detection sensor

  • Stable detection even at close distances
  • Visible red spot light
  • Narrow view design which makes detecting through gaps possible
KR-Q/SR-Q Series

I/O circuit diagram

  • NPN output type

  • PNP output type

  • Connector type

  • Connecting

    ▪ Turns to Light ON mode when the white wire is connected to +V or not connected and to Dark ON mode when connected to 0 V (for NPN). To use without connecting, disconnect and wrap individually with insulating tape, etc. Do not connect it to any other terminal.
    ▪ 1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

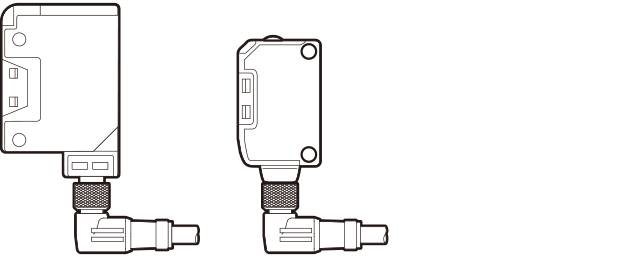

    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

(Unit : mm)

KR-Q series

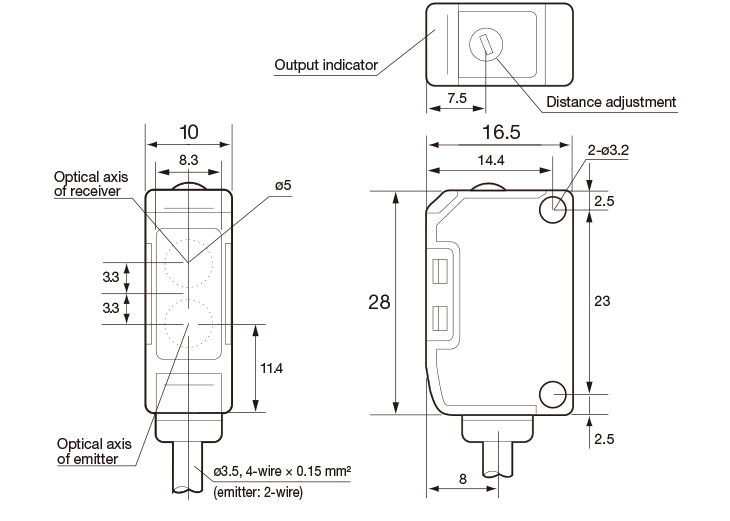

Cable type

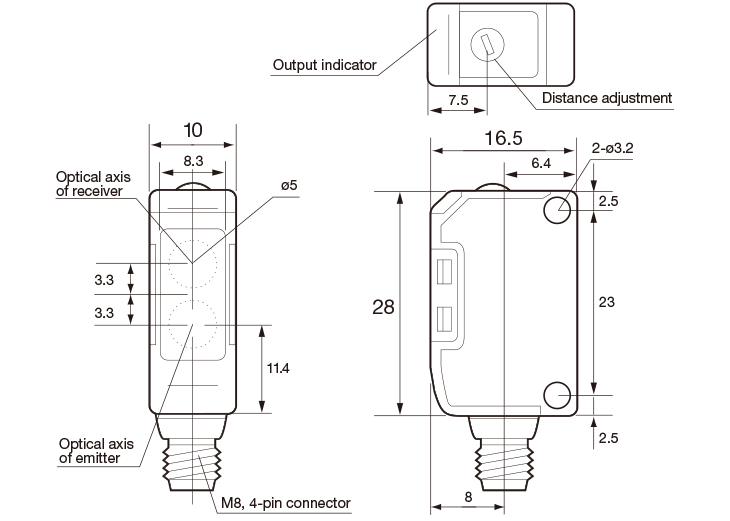

Connector type

KR-Q with mounting bracket

Cable type

Connector type

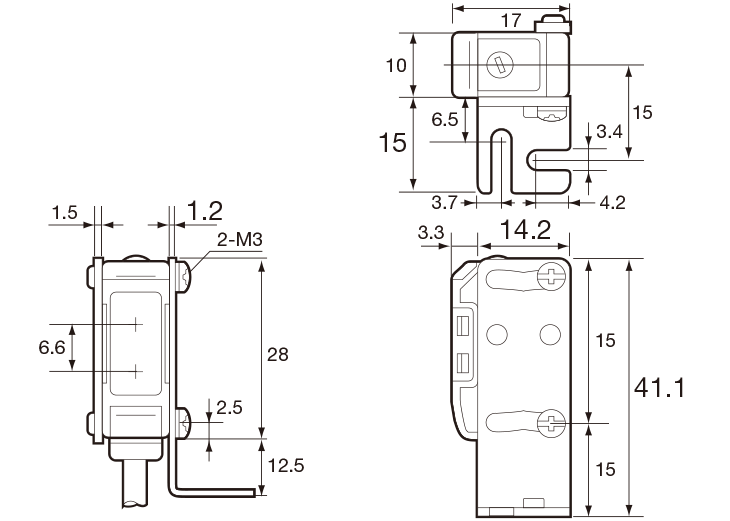

Mounting bracket (included)

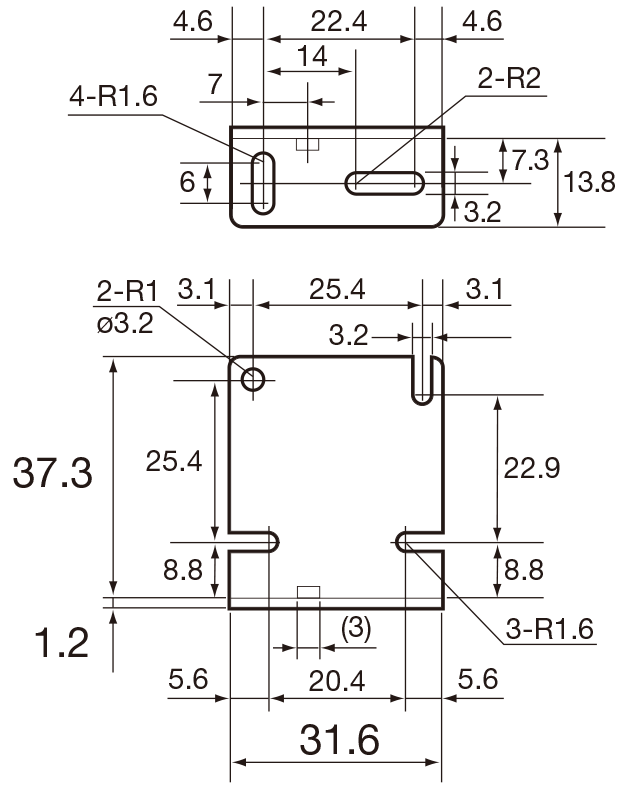

  • BEF-W170

KR-Q series with protective mounting bracket

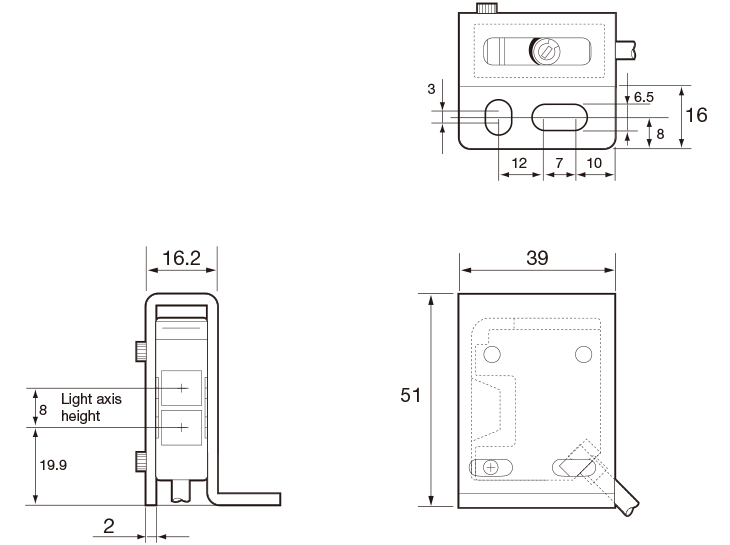

LK-S01

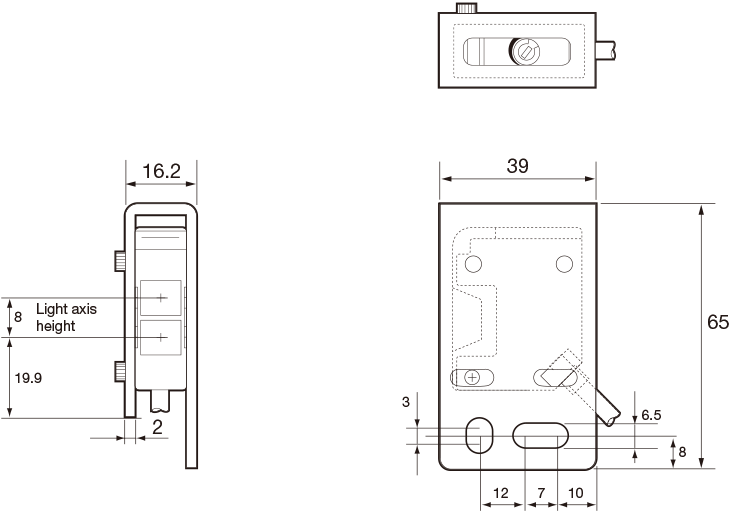

LK-S02

SR-Q series

Cable type

Connector type

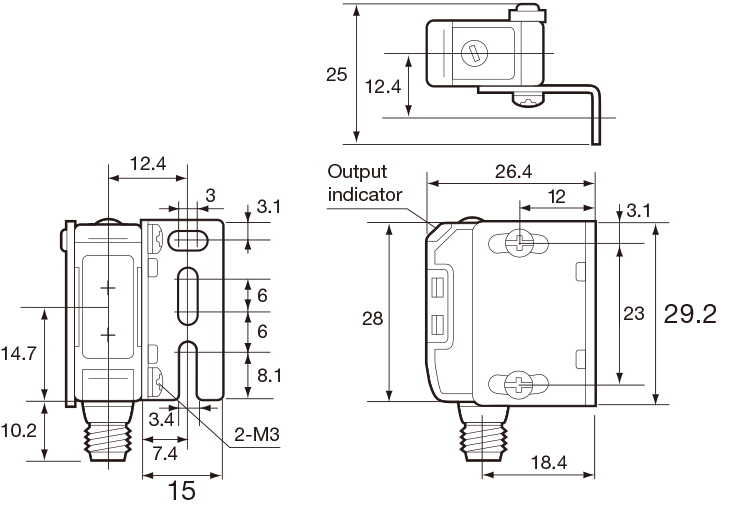

SR-Q series with mounting bracket

Cable type (when using BEF-W150-B)

Connector type (when using BEF-W150-A)

Mounting bracket (included)

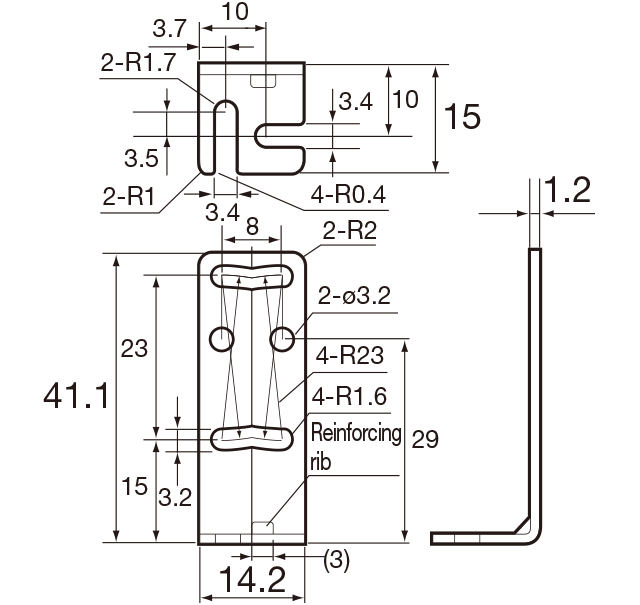

  • BEF-W150-B (included with sensor)

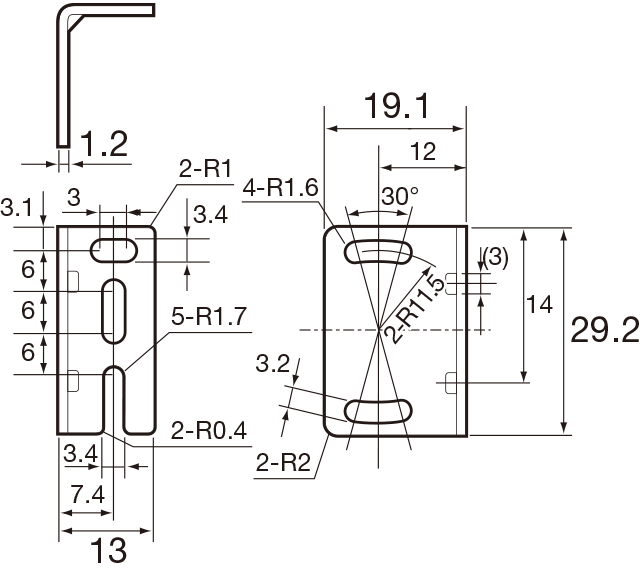

  • BEF-W150-A (optional)

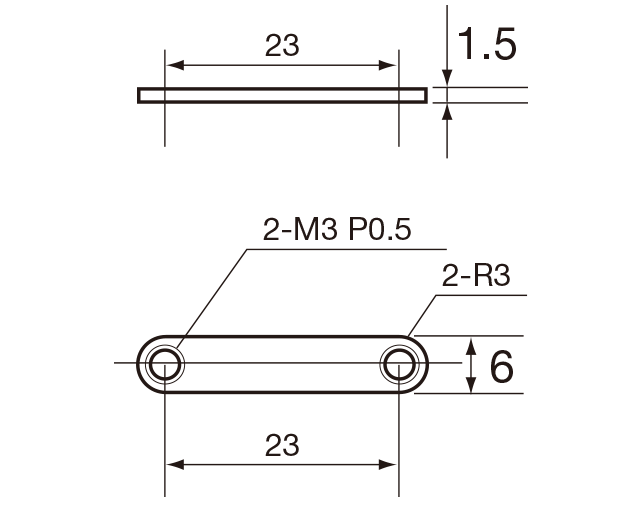

  • Nut plate (included)

SR-Q series with protective mounting bracket

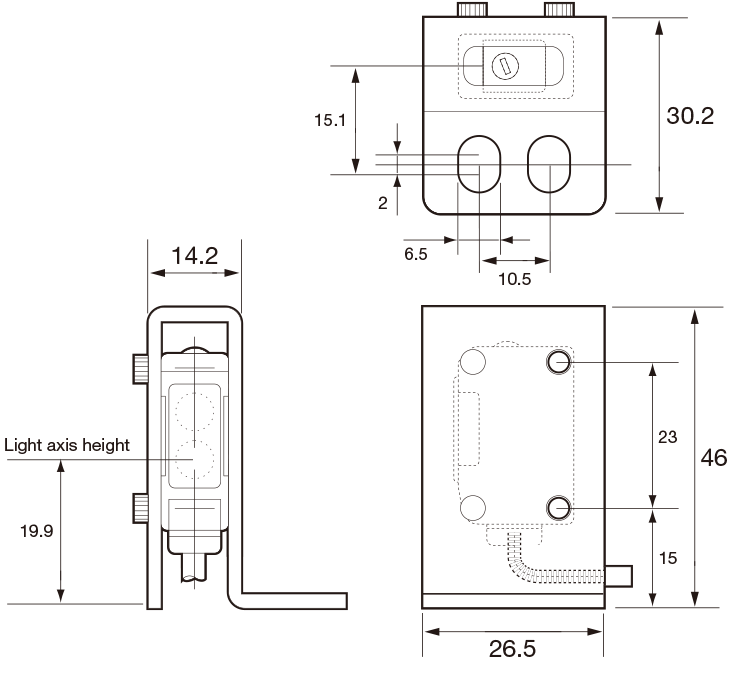

LS-S01

t = 2

LS-S02

t = 2

Connector cable (optional)

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Reflector

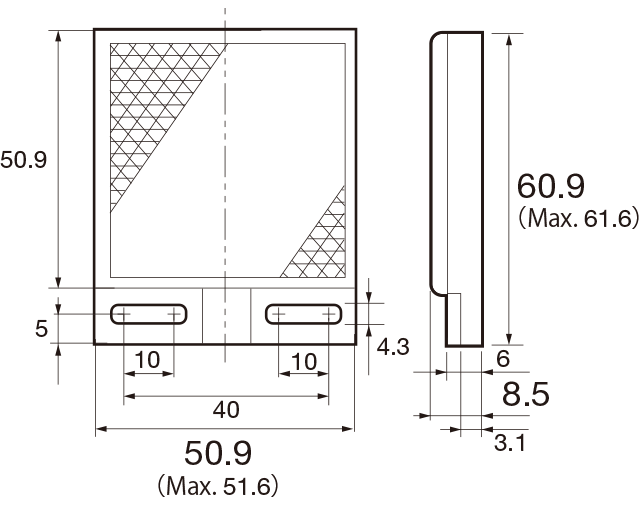

  • V-61: Standard type reflector (included)

  • V-42: Small reflector (optional)

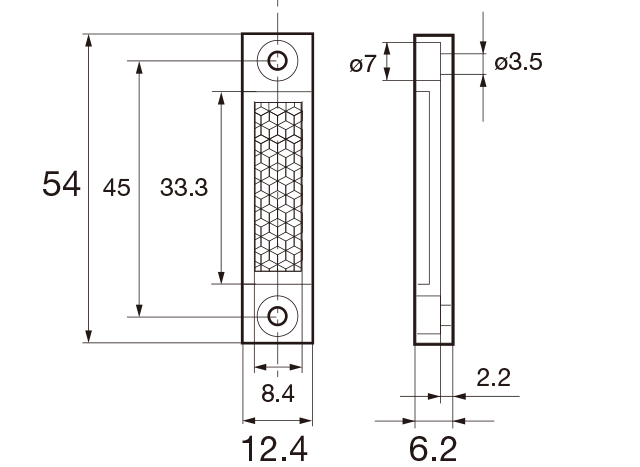

  • P45A: Vertical type reflector (optional)
