Amplifier Built-in TypeZ-L Series


IIndustry standard sized
laser sensors with built-in amplifiers

  • Same low cost as LED light source types
  • Laser class 1 for through-beam type
  • Outstanding environmental resistance
Z-L Series

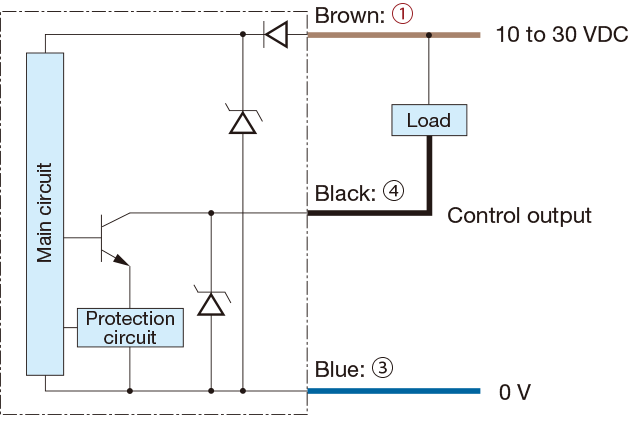

Output circuit diagram

Retro-reflective type/Diffuse-reflective type

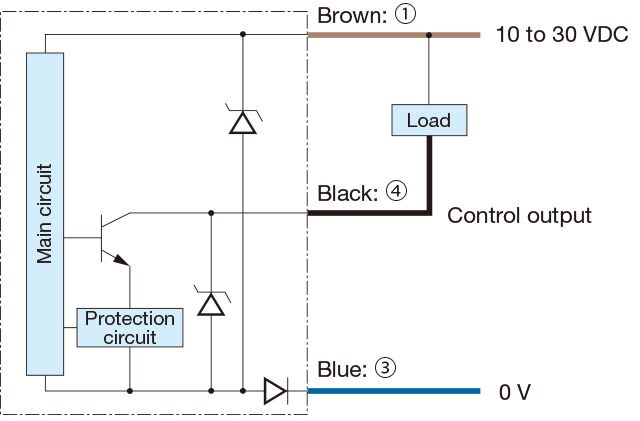

  • NPN output type

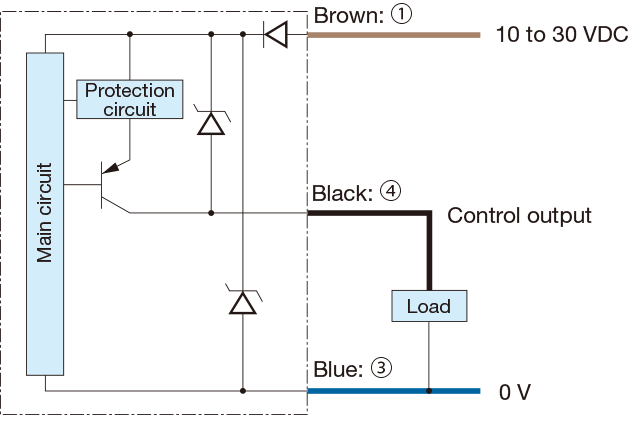

  • PNP output

Through-beam type receiver

  • NPN output type

  • PNP output type

  • Through-beam type emitter

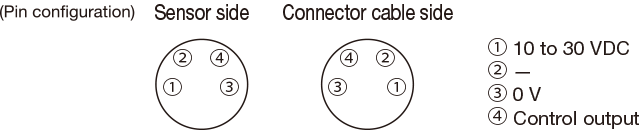

  • Connector type


    ▪ 1 to 4 are connector pin No.


    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).
    ▪ The connector direction is fixed as in the drawing to the right when you use L-shaped connector cable. Be aware that rotation is not possible.


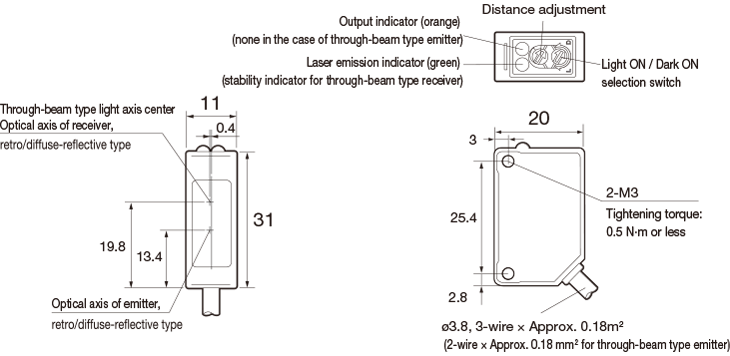

(Unit : mm)


  • Cable type

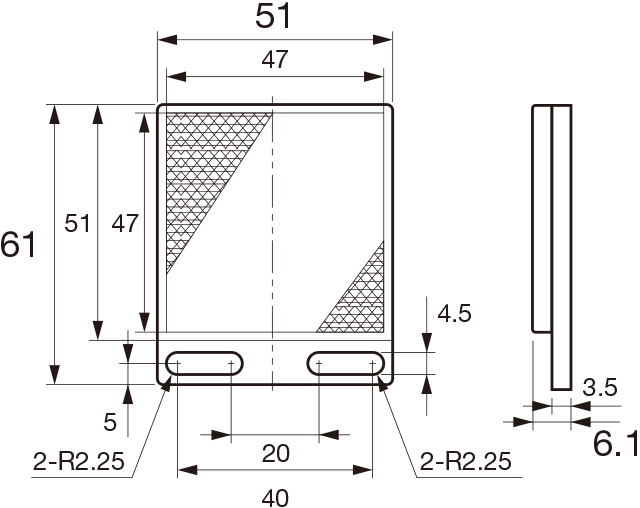

  • P250F
    (included with ZR-L1000N)

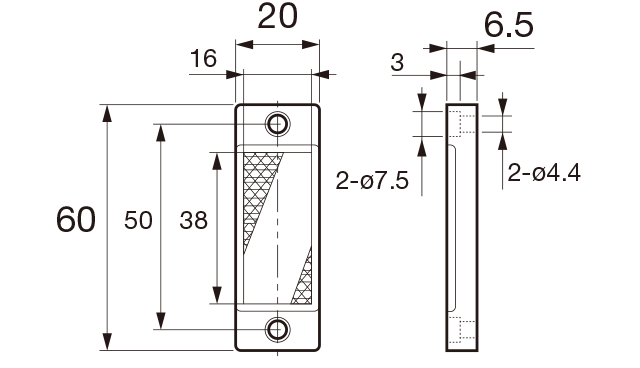

  • PL20F (optional)

  • PL10F (optional)

Connector cable (optional)

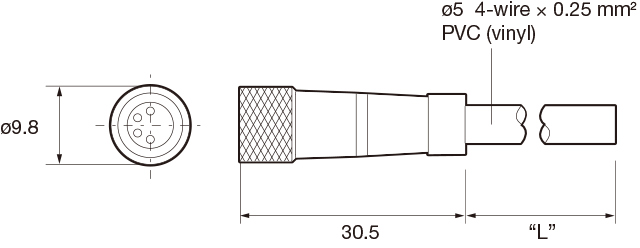

  • JCN-S, JCN-5S, JCN-10S

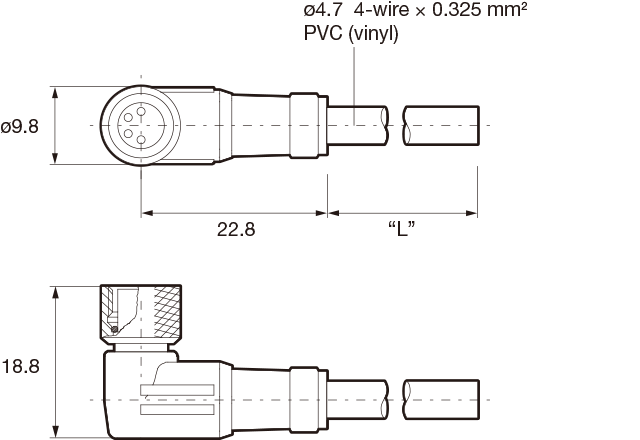

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Mounting bracket

Cable type (when using BEF-W100-B)

Connector type (when using BEF-W100-A)

Notes for sensor usage

  • ■ Regarding the laser label, this product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. A CLASS 2/CLASS II warning label and explanation label (English) is affixed to the side of the sensor head.
    *The ZT-L3000N emitter is Class II in FDA standards (when exported to the United States), but is Class 1 according to JIS/IEC standards, so change the label that it is packaged with for use.
