Amplifier Built-in TypeZ-L Series

DOWNLOAD

IIndustry standard sized
laser sensors with built-in amplifiers

  • Same low cost as LED light source types
  • Laser class 1 for through-beam type
  • Outstanding environmental resistance
Z-L Series

Options/Accessories

Reflector

  • Standard

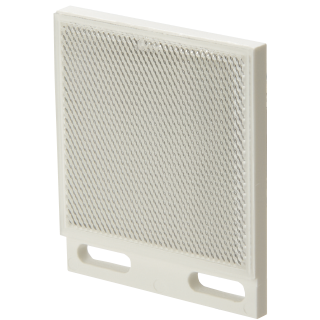

    P250F

    Sensing distance: 0.2 to 10 m
    61 × 51 mm
    Included with retro-refl ective type

  • Small
    (optional)

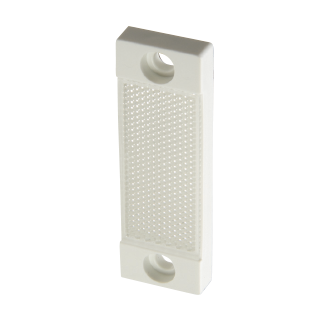

    PL20F

    Sensing distance:
    0.2 to 8 m
    60 × 20 mm

  • Ultra-small
    (optional)

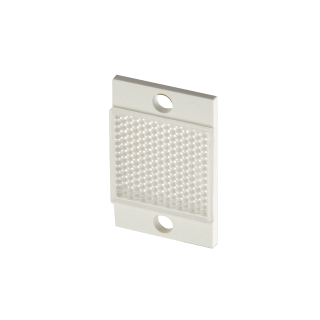

    PL10F

    Sensing distance:
    0.2 to 7 m
    32 × 20 mm

  • Connector cablesDiscontinued and successor models of connector cables

    • Straight

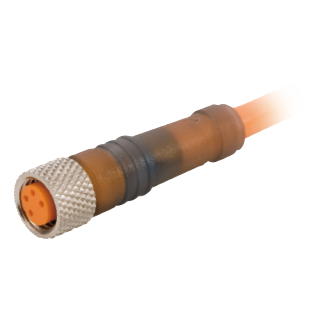

      JCN-S

      Cable length: 2 m

      JCN-5S

      Cable length: 5 m

      JCN-10S

      Cable length: 10 m

    • L-shaped

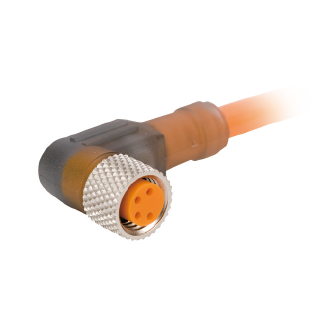

      JCN-L

      Cable length: 2 m

      JCN-5L

      Cable length: 5 m

      JCN-10L

      Cable length: 10 m

    • Successor models

      • Straight

        M84CN-2S

        Cable length: 2 m

        M84CN-5S

        Cable length: 5 m

        M84CN-10S

        Cable length: 10 m

      • L-shaped

        M84CN-2L

        Cable length: 2 m

        M84CN-5L

        Cable length: 5 m

        M84CN-10L

        Cable length: 10 m

      Protective mounting bracket LK series

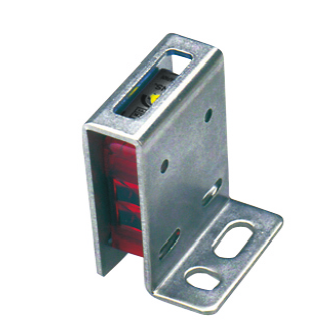

      • LK-S01

        • Ultra-durable 2 mm thick type
        • Rust-resistant stainless steel
        • Sensor is fi rmly secured using an M3 Hex socket head cap screws
        • The bracket is also firmly secured using M6 screw

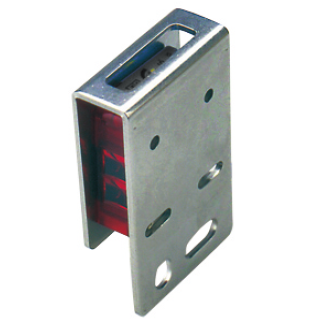

      • LK-S02

        • Ultra-durable 2 mm thick type
        • Rust-resistant stainless steel
        • Sensor is fi rmly secured using an M3 Hex socket head cap screws
        • The bracket is also firmly secured using M6 screw
