Fiber-Optic CablesNF Series Thread type

DOWNLOAD

Type that can be mounted with a threaded nut Fiber-Optic Sensors

  • Adjustable mounting type that switches between straight view and side view also available
  • A metal sheath type that protects against cable breakage,as well as lens attachable models are available
    • NF-TJ01, NF-DJ02: End of sales by August 2025
NF Series Thread type

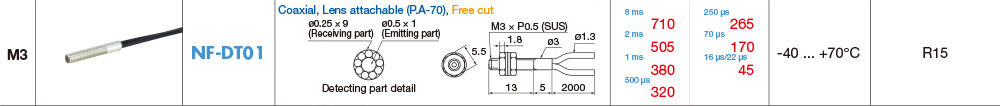

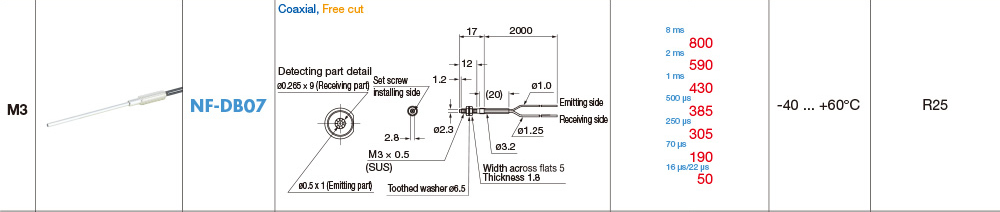

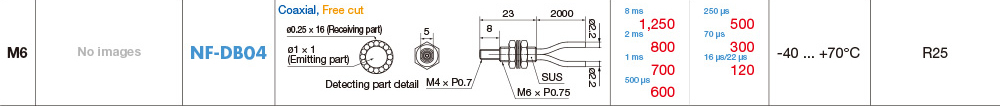

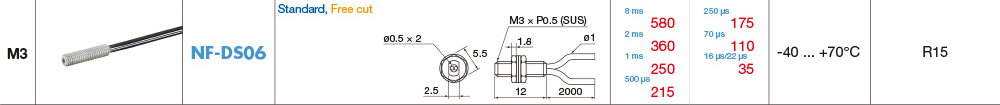

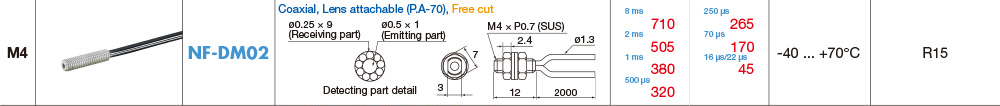

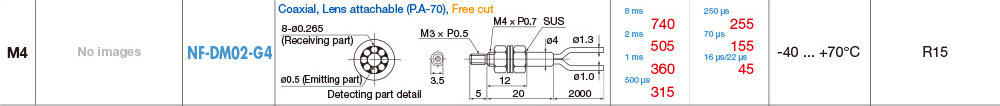

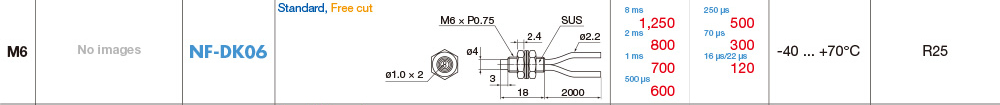

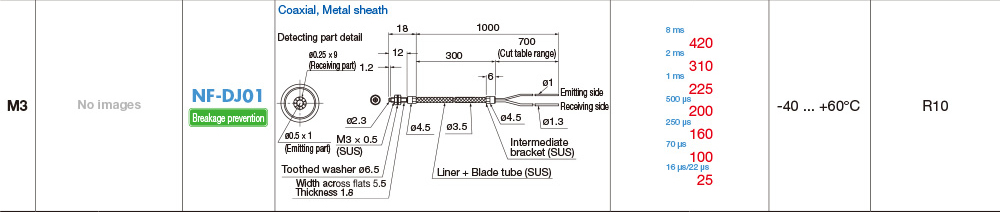

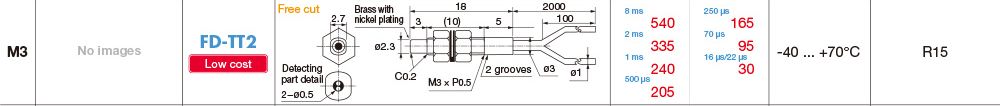

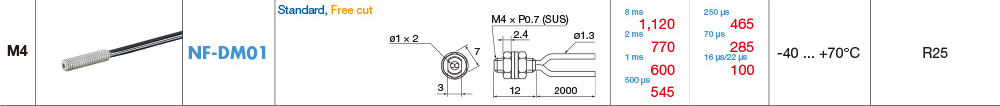

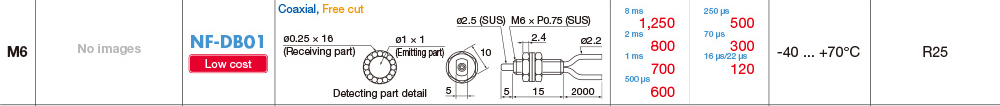

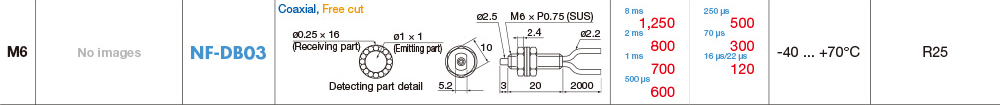

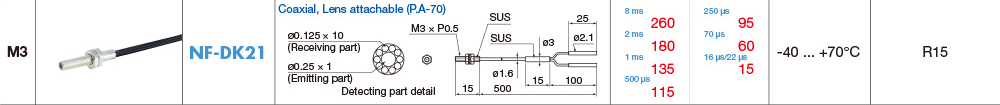

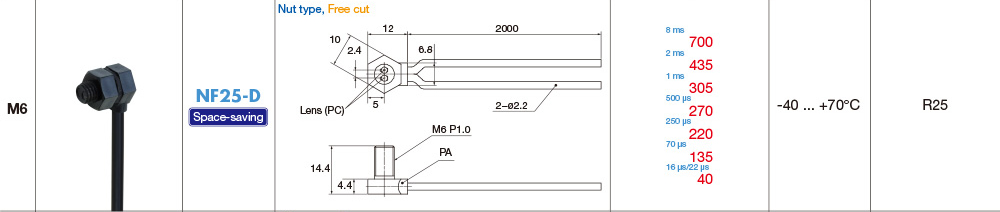

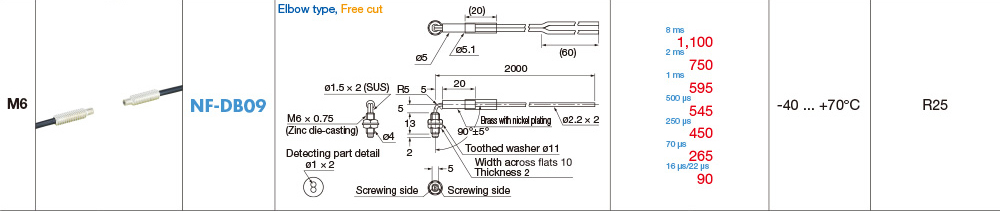

Thread type Fiber-Optic Cables (diffuse type)

*Download the drawing to check the tolerances.


Click the image to enlarge.

●The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 x 500 mm white paper.
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
