Fiber-Optic CablesHEAT RESISTANT（180 to 200℃） Series
Fiber-Optic Cables for ambient temperatures of 180 to 200℃
- New concept joint type also available
- This heat resistant series offers the most models in the industry at 30 models (according to in-house survey) NF-TH11 will be discontinued by March 2025.

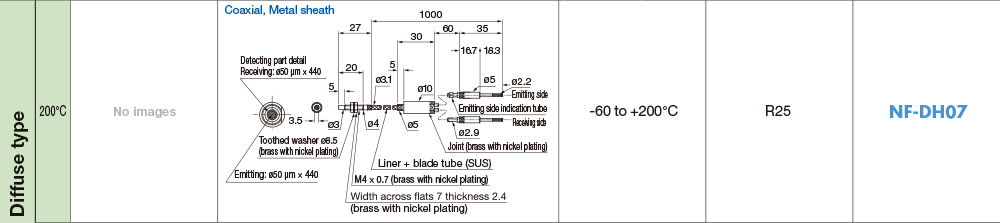

Heat resistant <180 to 200°C or below> Fiber-Optic Cables (diffuse type)
Download of Sensing Distance List.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
Note: Light intensity retention rate of 85% or above after 1000 continuous work hours.

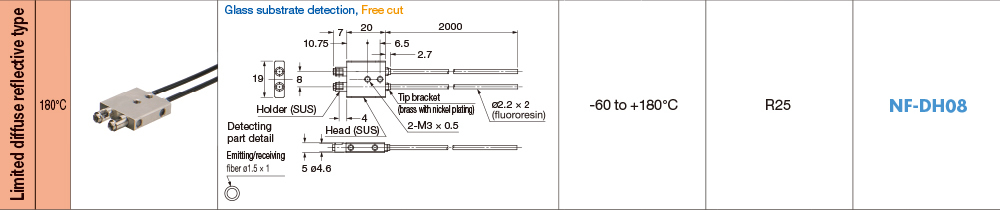

Heat resistant <180 to 200°C or below> Fiber-Optic Cables (limited diffuse reflective type)
Download of Sensing Distance List.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
Note: Light intensity retention rate of 85% or above after 1000 continuous work hours.
