Fiber-Optic CablesHEAT RESISTANT（180 to 200℃） Series

DOWNLOAD

Fiber-Optic Cables for ambient temperatures of 180 to 200℃

  • New concept joint type also available
  • This heat resistant series offers the most models in the industry at 30 models (according to in-house survey)

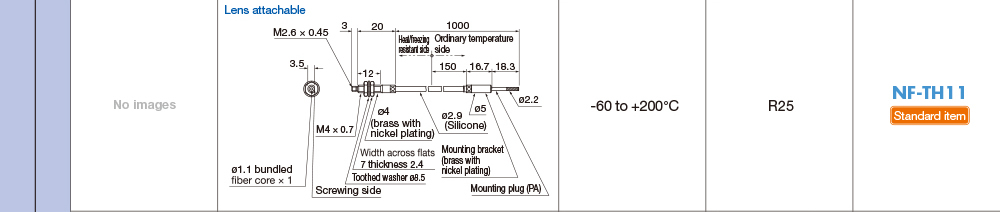

    • NF-TH11 will be discontinued by March 2025.
HEAT RESISTANT（180 to 200℃） Series

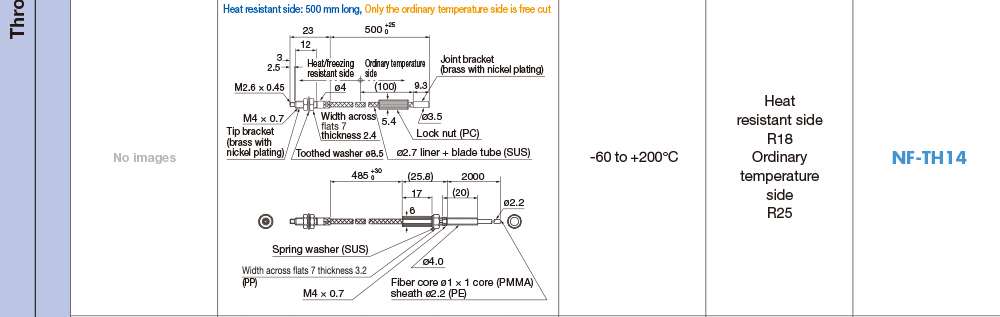

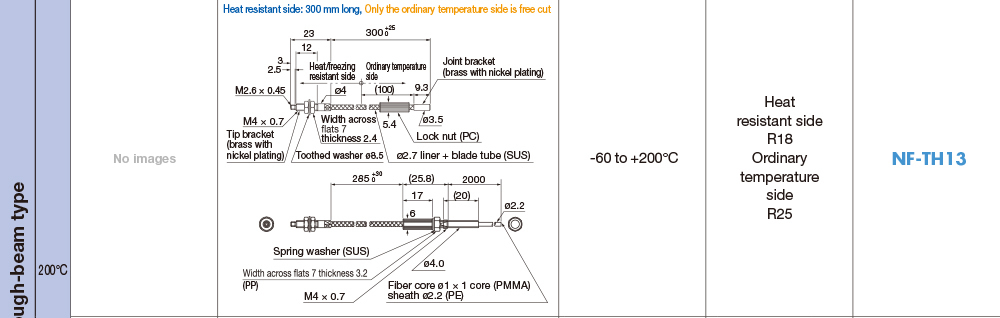

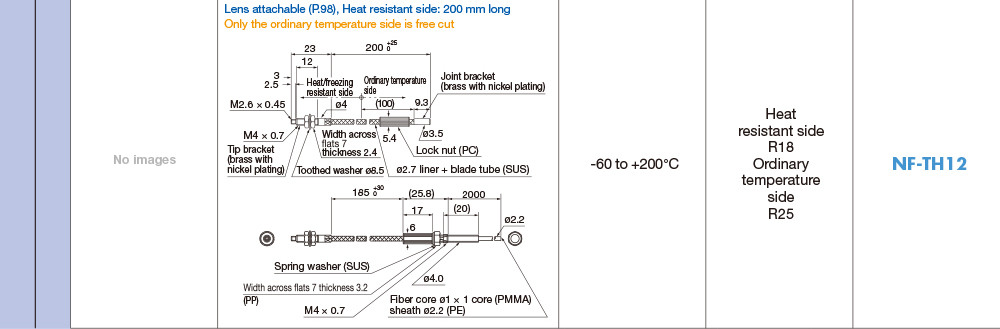

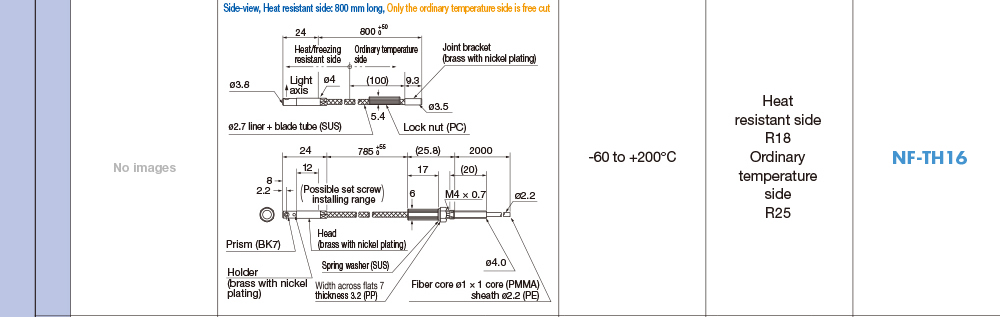

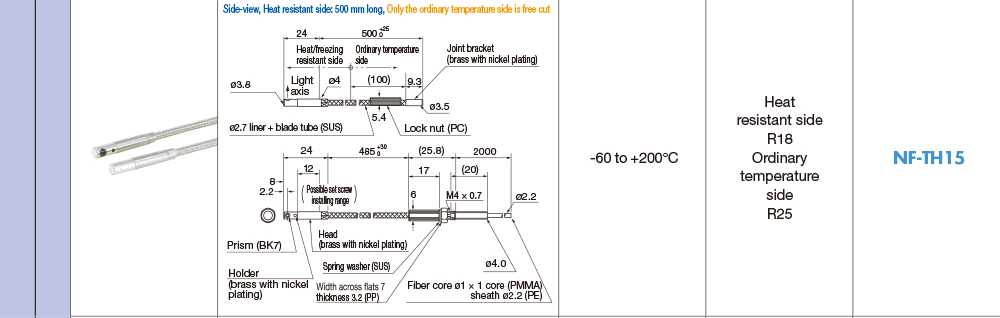

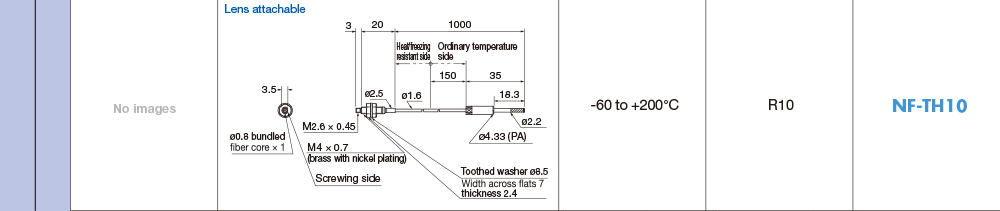

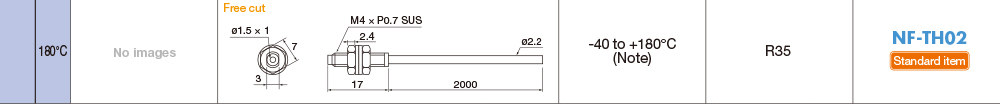

Heat resistant <180 to 200°C or below> Fiber-Optic Cables (through-beam type)

Download of Sensing Distance List.

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃. Note: Light intensity retention rate of 85% or above after 1000 continuous work hours.
