Fiber-Optic CablesHEAT RESISTANT（130℃ or below） Series

DOWNLOAD

Fiber-Optic Cables for ambient temperatures of 130°C or below

  • This heat resistant series offers most models in the industry at 30 models
    (according to in-house survey)
    • NF-TH06 will be discontinued by March 2025.
HEAT RESISTANT（130℃ or below） Series

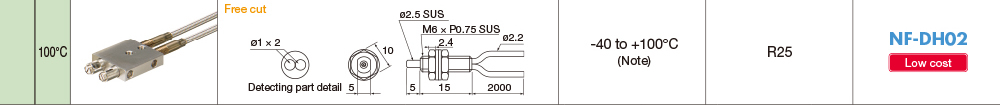

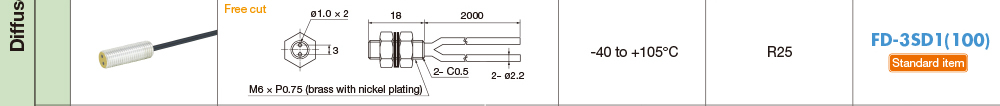

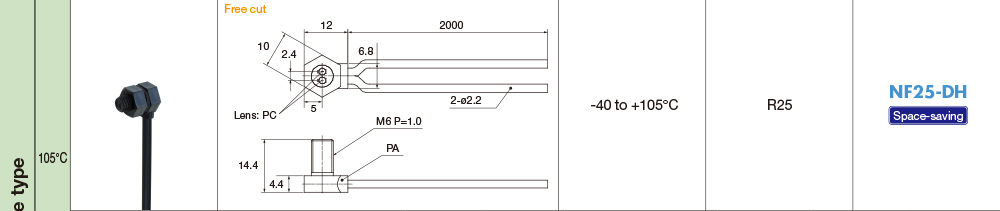

Heat resistant <130°C or below> Fiber-Optic Cables (diffuse type)

Download of Sensing Distance List.

•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40°C.
Note: Light intensity retention rate of 85% or above after 1000 continuous work hours.
