Fiber-Optic CablesNF Series Flexible type (R4 mm)
Flexible type Fiber-Optic Cables can be mounted at moving parts
- Withstands 800,000 cycle bending test

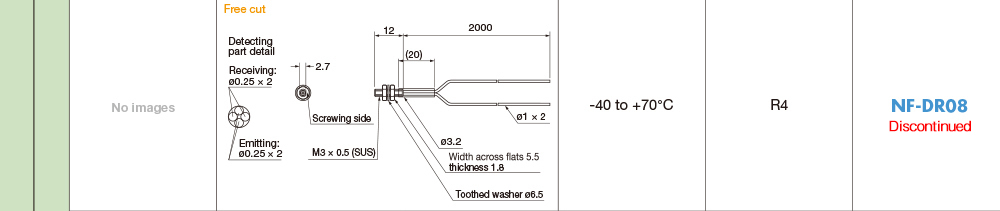

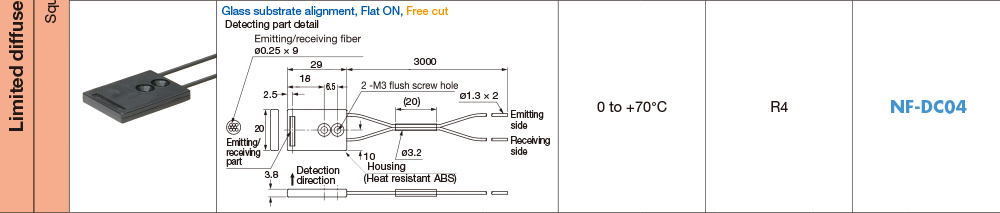

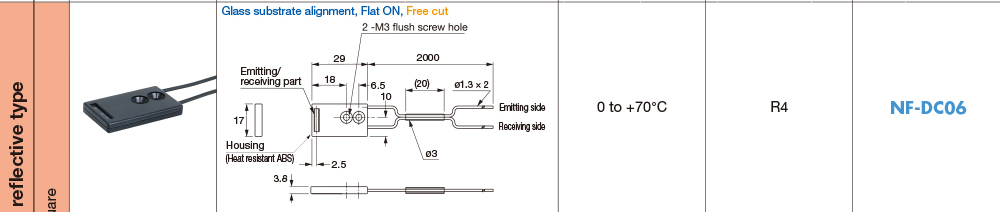

- Limited diffuse reflective types optimized for glass substrate alignment is also available NF-DR08, End of sales by June 2023

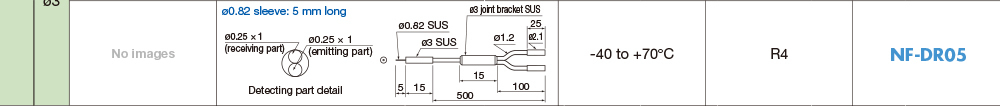

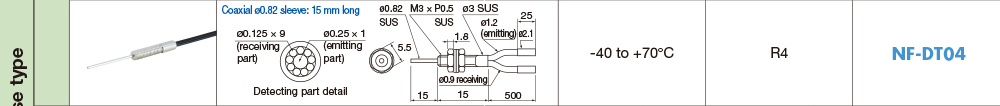

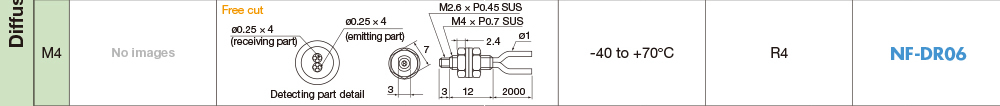

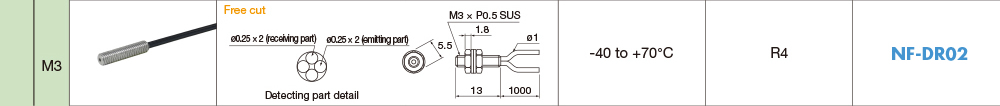

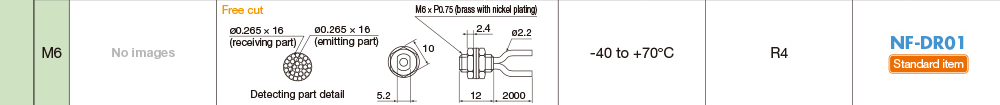

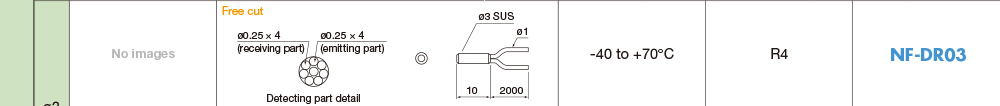

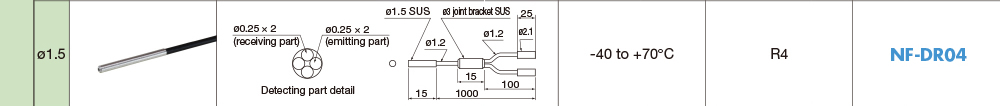

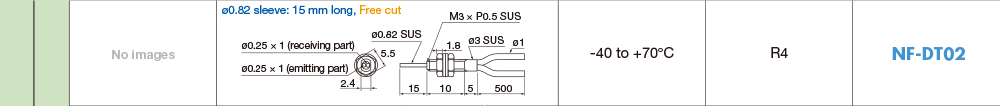

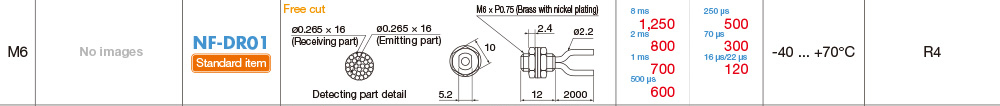

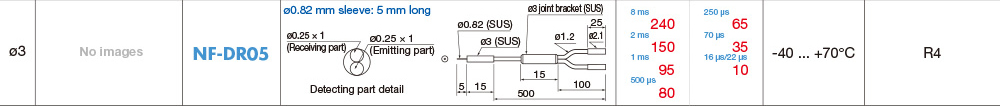

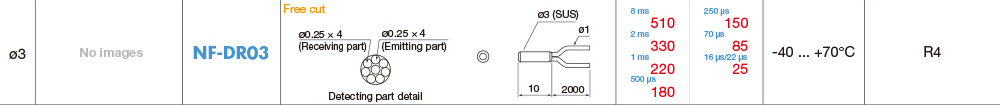

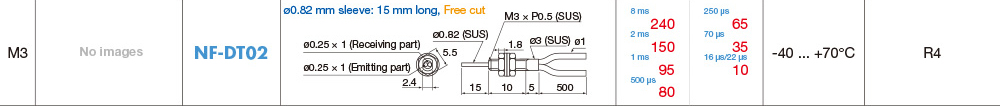

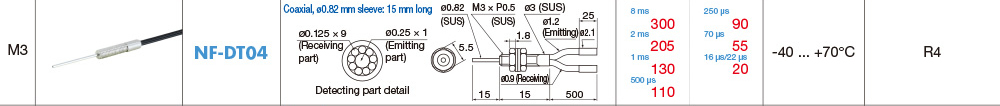

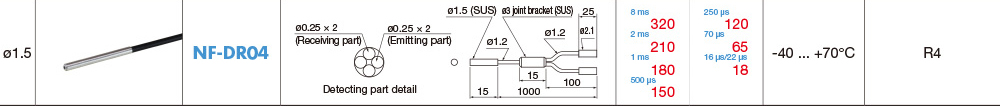

Flexible type Fiber-Optic Cables (diffuse type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
