Type	Model	Shape of fiber head [mm]	Sleeve	Optical axis direction	Optical axis diameter [mm]	Fiber length	Min. bending radius [mm]	Ambient temperature [℃]

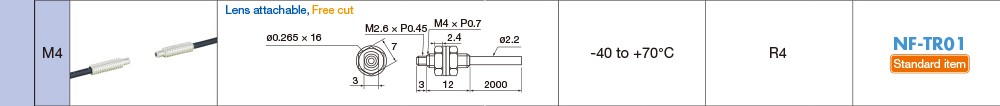

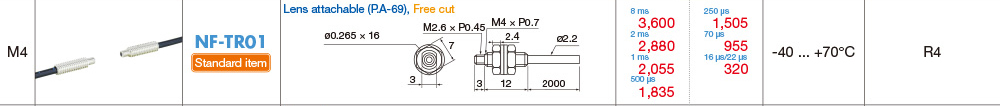

M4 Lens attachable	NF-TR01		-	Straight view	ø1.0	2 m Free-cut	R4	-40 ... +70

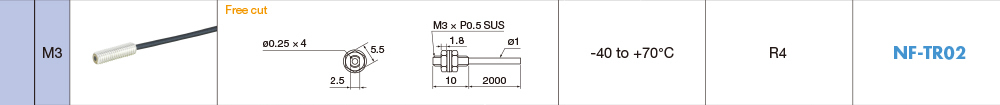

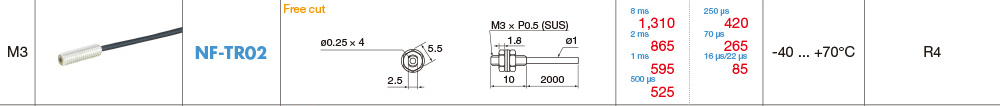

M3	NF-TR02		-	Straight view	ø0.5	2 m Free-cut	R5	-40 ... +70

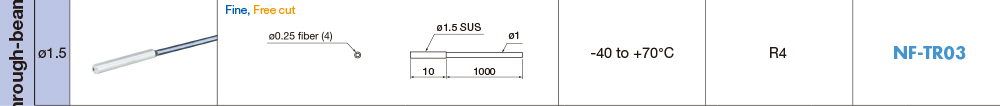

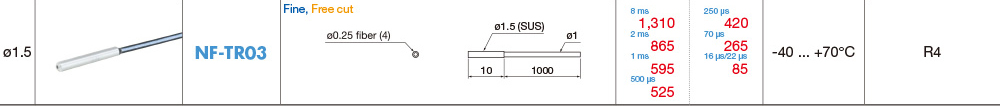

ø1.5	NF-TR03		-	Straight view	ø0.5	1 m Free-cut	R4	-40 ... +70

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
•The optical axis diameter is an approximate value.

Type	Model	Shape of fiber head [mm]	Sleeve	Optical axis direction	Fiber length	Min. bending radius [mm]	Ambient temperature [℃]
M6	NF-DR01		-	Straight view	2 m Free-cut	R4	-40 ... +70
M4	NF-DR06		-	Straight view	2 m Free-cut	R5	-40 ... +70
M3	NF-DR02		-	Straight view	1 m Free-cut	R4	-40 ... +70
M3 Fine sleeve	NF-DT02		ø0.82 mm 15 mm long	Straight view	0.5 m Free-cut	R5	-40 ... +70
M3 Coaxial Fine sleeve	NF-DT04		ø0.82 mm 15 mm long	Straight view	0.5 m	R5	-40 ... +70
ø3	NF-DR03		-	Straight view	2 m Free-cut	R4	-40 ... +70
ø3 Fine sleeve	NF-DR05		ø0.82 mm 5 mm long	Straight view	0.5 m	R5	-40 ... +70
ø1.5	NF-DR04		-	Straight view	1 m	R4	-40 ... +70

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
