Fiber UnitFLEXIBLE R2mm Series

DOWNLOAD

Easy to handle fiber with a bending radius of 2 mm

  • Adjustable mounting type that switches between straight view and side view also available
  • 40 mm wide screen fiber type is available
FLEXIBLE R2mm Series

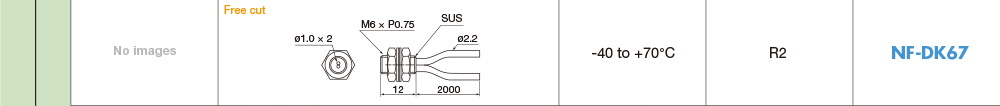

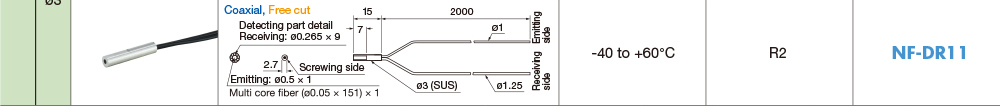

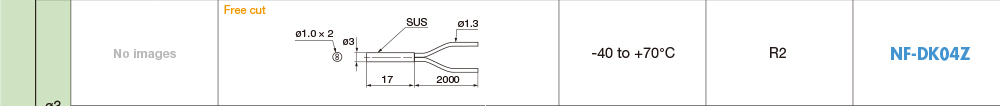

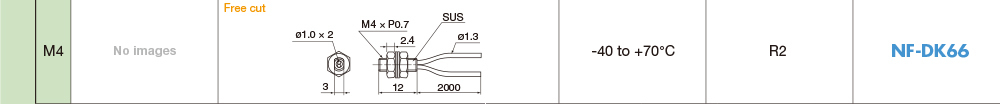

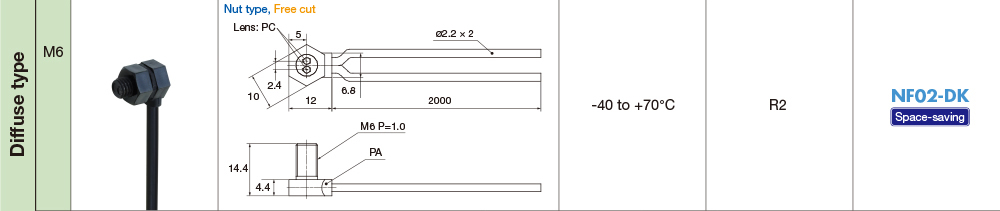

Flexible R2 mm fiber units (diffuse type)

Download of Sensing Distance List.

•The sensing distances for the diffuse type fiber units are values on 500 × 500 mm white paper (1000 × 1000 mm white paper for NF02-DK).
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
