Compact TOF Sensors with DisplayTOF-DL Series

DOWNLOAD

Enhanced operability and I/O selection

  • Models with IO-Link, Analog Output, and 3 Control Outputs Available
  • High Performance with Class 1 Laser
  • High Accuracy Operation with Low Hysteresis
TOF-DL Series

I/O circuit diagram

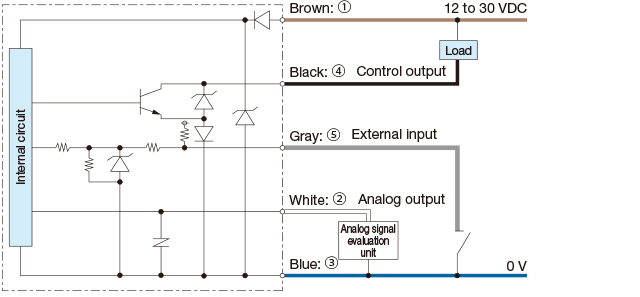

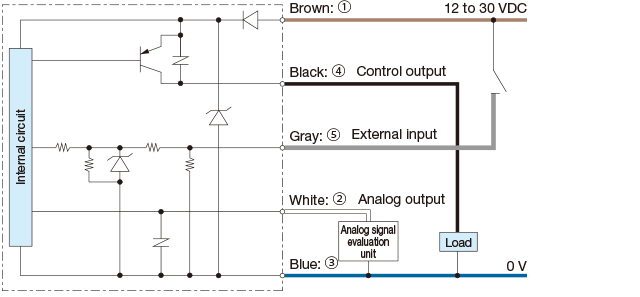

  • Analog output type: With the NPN setting

  • Analog output type: With the PNP setting

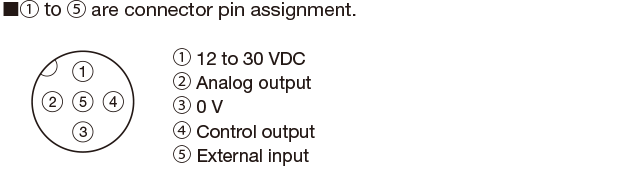

    • M12 5-pin pigtail cable type pin assignment

    • Notes

      ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
      ▪ Wring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
      ▪ Avoid using the transient state while the power is on (approx. 800 ms).

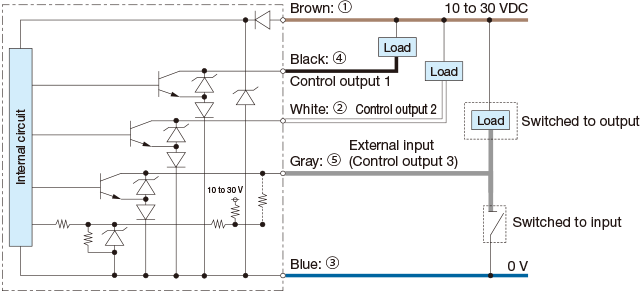

    • 3-control-output type: With the NPN setting

  • 3-control-output type: With the PNP setting

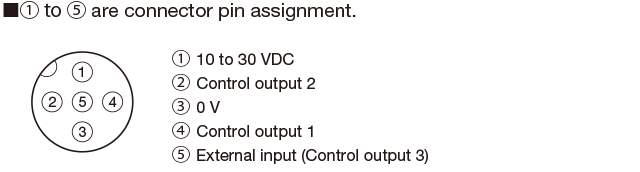

    • M12 5-pin pigtail cable type pin assignment

    • Notes

      ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
      ▪ Wring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
      ▪ Avoid using the transient state while the power is on (approx. 800 ms).

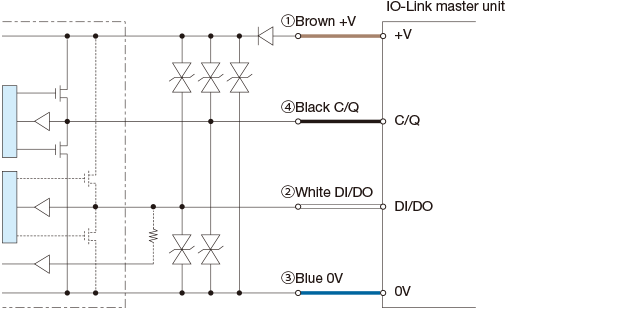

    • IO-Link model: IO-Link mode

  • IO-Link model: SIO mode (Standard I/O mode) with Push-Pull/PNP setting

  • IO-Link model: SIO mode (Standard I/O mode) with NPN setting

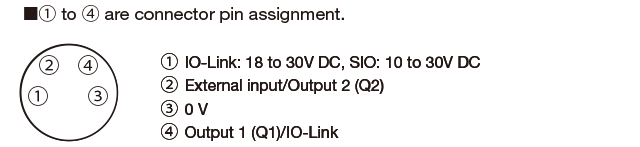

    • M8 connector type pin assignment

    • Notes

      ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
      ▪ Wring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
      ▪ Avoid using the transient state while the power is on (approx. 800 ms).

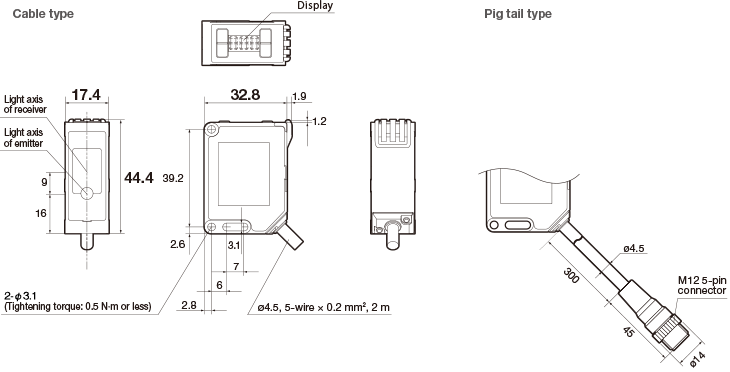

    Dimensions

    (Unit : mm)

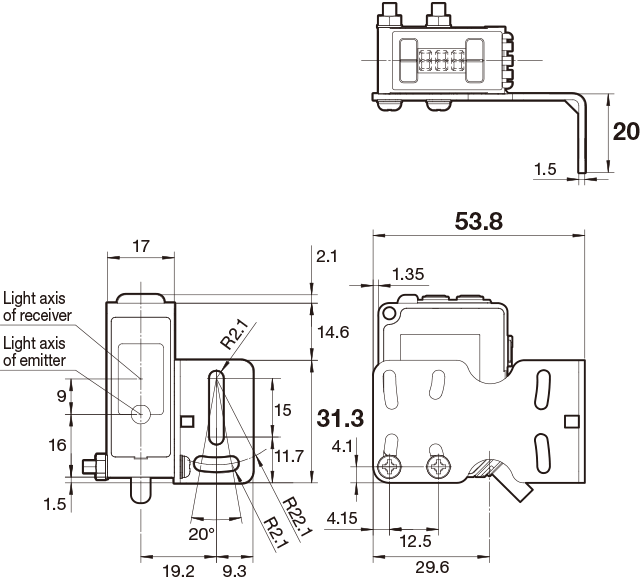

    Sensor

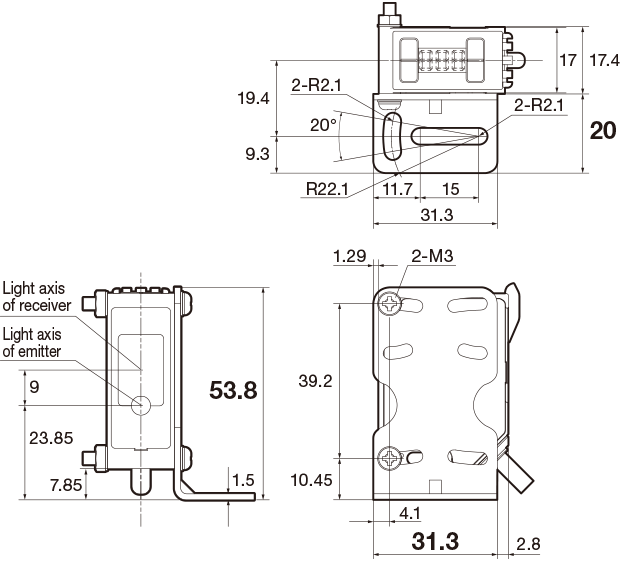

    Mounting bracket

    • BEF-WK-190: Floor-mounted

    • Wall-mounted

    M12 5-pin connector cables

    • YF2A15-020VB5XLEAX

    M8 4-pin connector cables

    • M84CN-2S, M84CN-5S, M84CN-10S

    • M84CN-2L, M84CN-5L, M84CN-10L
