I/O circuit diagram

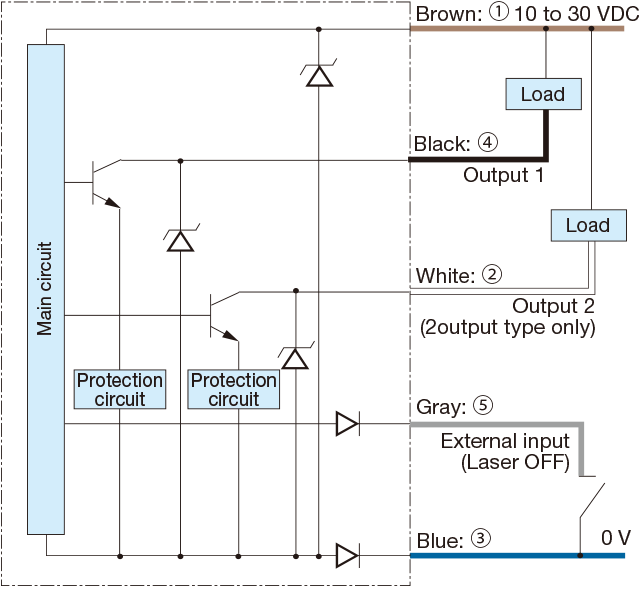

• NPN output type

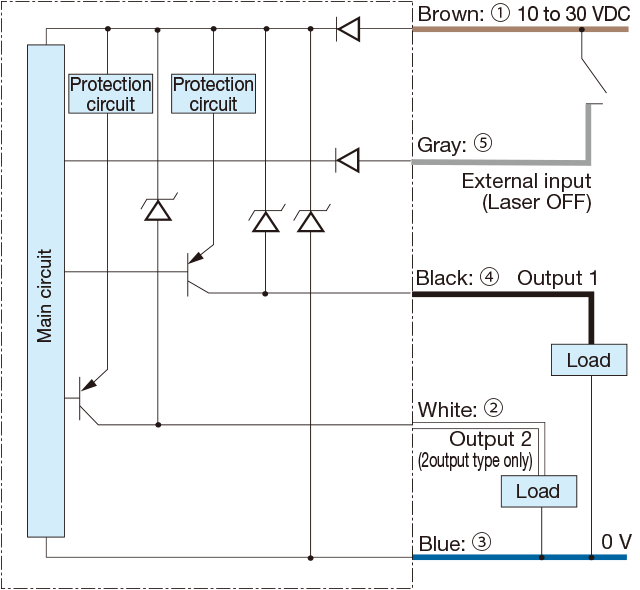

• PNP output type

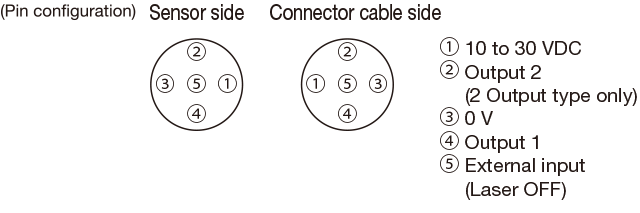

• Connector type



  Connecting

  ▪ When not used for control output 2 or external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.
  ▪ 1 to 5 correspond to connector pin No.

• Notes

  ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  ▪ Avoid using the transient state while the power is on (approx. 300 ms).

Dimensions

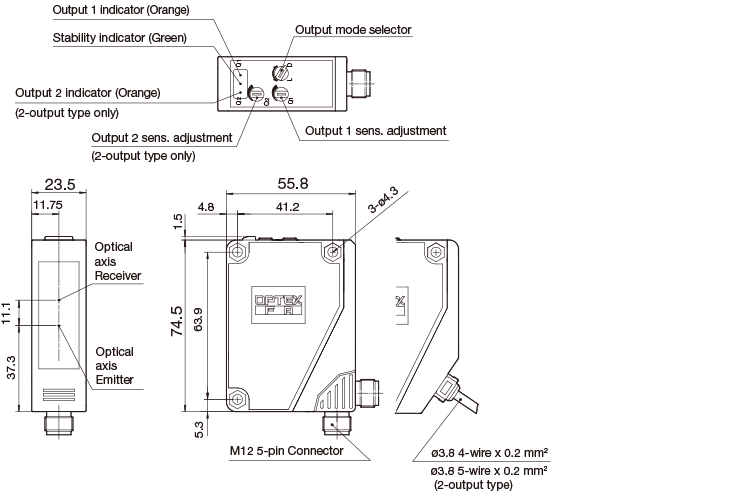

• Sensor

  Connector type/cable type



Mounting bracket

• Floor-mounted



• Wall-mounted



Reflectors for TOF-3V2000☐

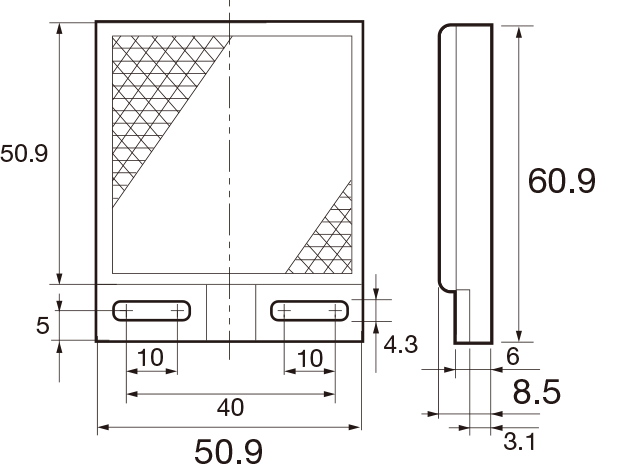

• V-61: Standard type reflector



Successor models

• Cable for M12 connector type

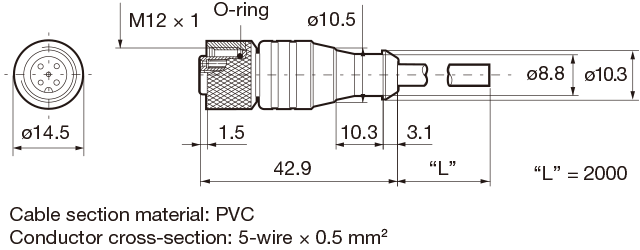

  DOL-1205-G02M



• Successor models

  YF2A15-020VB5XLEAX
