C-MOS Laser TypeBGS-DL Series

DOWNLOAD

High detection stability by using C-MOS element

  • C-MOS linear image sensor
  • “SEN” automatic sensitivity control function
  • Equipped with FGS mode
BGS-DL Series

I/O circuit diagram

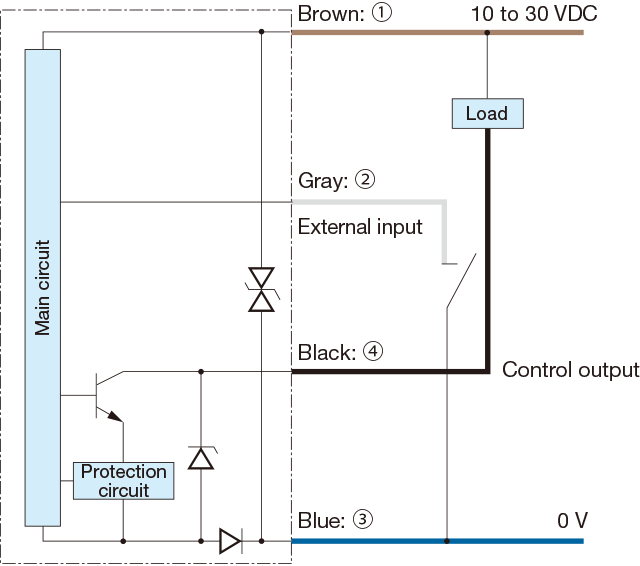

  • NPN output type

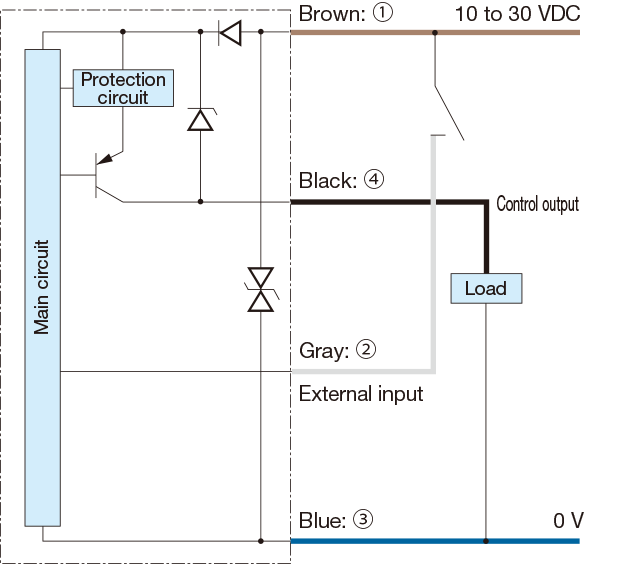

  • PNP output type

  • Connector type

  • Connecting

    ▪ When not used for external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.

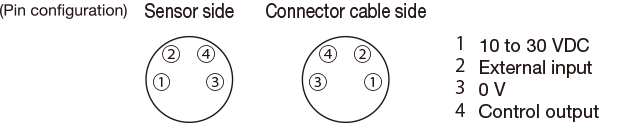

    ▪ 1 to 4 are connector pin No.

    Notes

    ▪ Connect frame ground to the earth when the switching regulator is used for power brsupply.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

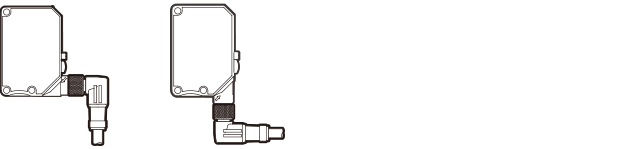

    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

(Unit : mm)

Sensor

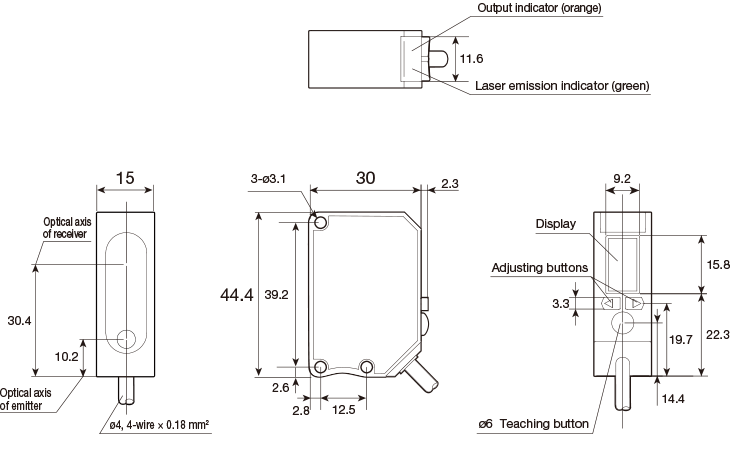

  • Cable type sensor

Connector type

Mounting bracket

Cable type

Connector type

Connector cable (optional)

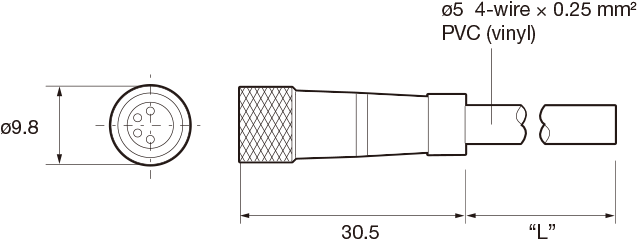

  • JCN-S, JCN-5S, JCN-10S

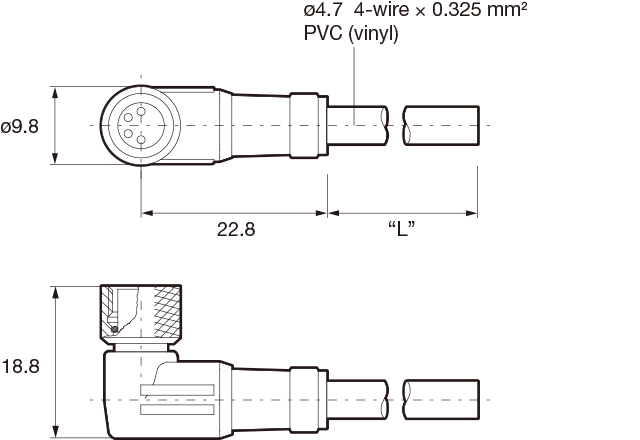

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Mounting bracket

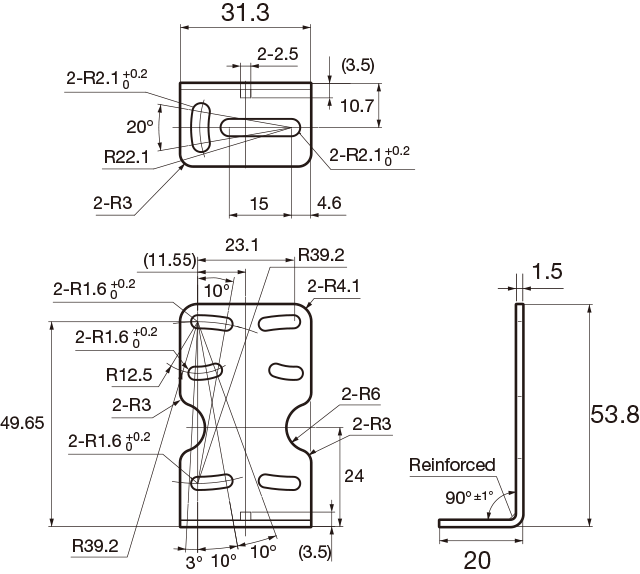

  • BEF-WK-190 (included)

Notes for sensor usage

  • This product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. Warning and explanation labels are affixed to the sides of the sensor.
