Universal Voltage SensorsV Series


2 directional terminal block system useful for installation

  • Long range detection, 40 m through-beam brtype(universal voltage type)
  • Types with built-in ON/OFF delay timer available
V Series

I/O circuit diagram

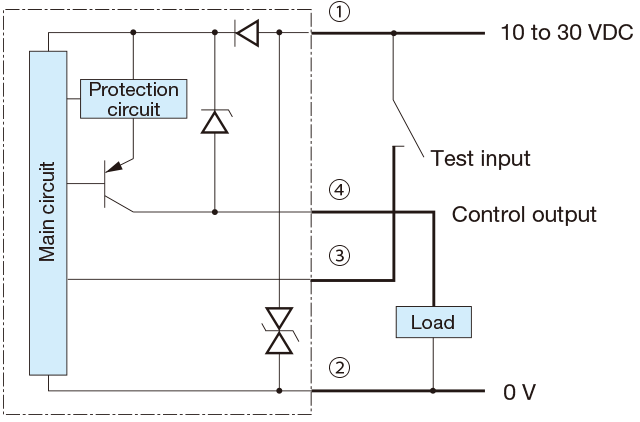

  • NPN output type (DC power type)

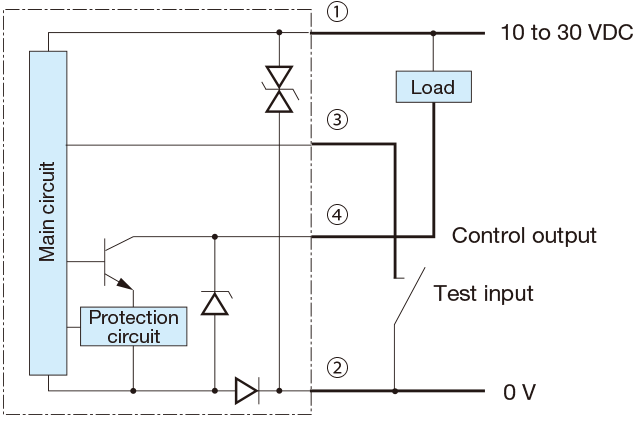

  • PNP output type (DC power type)

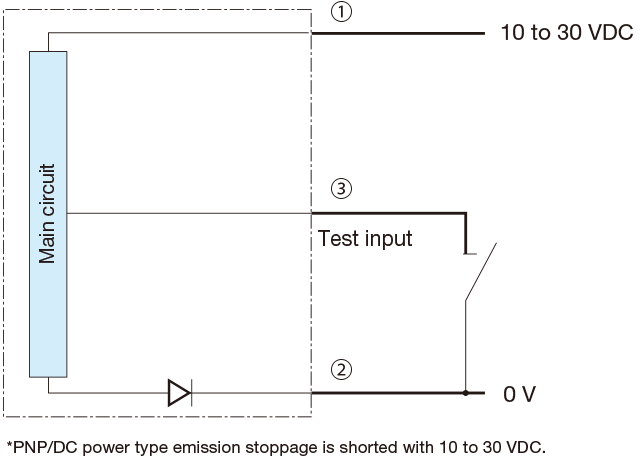

  • Through-beam type emitter
    (NPN. DC power type)

  • Connecting

    ▪1 to 4 are connector pin No


    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

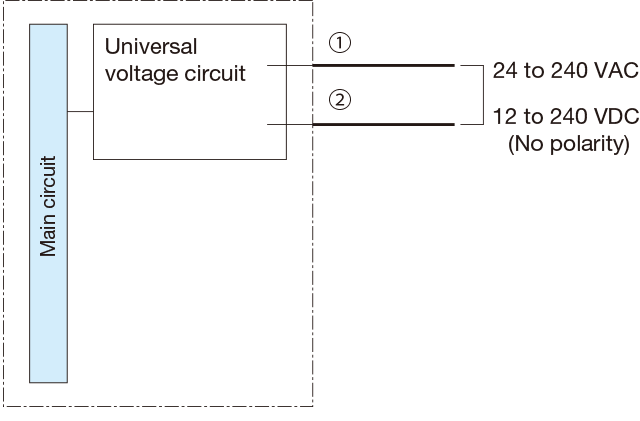

  • Universal voltage type

  • Through-beam type emitter
    (universal voltage type)


(Unit : mm)

Sensor with mounting bracket

  • Floor-mounted
