Lighting Monitoring and Illumination Check SensorMDF Series

DOWNLOAD

Automatic measurement of continuous lighting and
ON/OFF lighting control using an internal trigger

  • Clear maintenance timing of lighting
  • Reduced wiring with the possibility to link up to 8 units
    (inter-connection types)
MDF Series

I/O Circuit Diagram

  • Connecting

    When not used for external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.

    Important points

    ■ When using a switching regulator for the power supply, be sure to ground the　frame ground terminal.
    ■ Because wiring sensor wires with high-voltage wires or power supply wires　can result in malfunctions due to noise, which can cause damage, make sure　to wire separately.
    ■ Avoid using the transient state while the power is on (approx. 100 ms).

    *MDF-TSN inter-connection type expansion unit does not have power supply wires (brown/blue) because power is supplied from the main unit.

Dimensions

Unit : mm

Amplifier unit

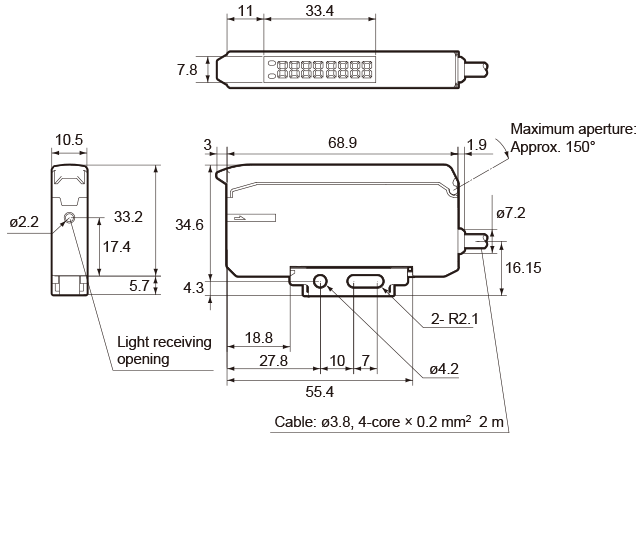

  • Stand-alone MDF-TN / MDF-HTN

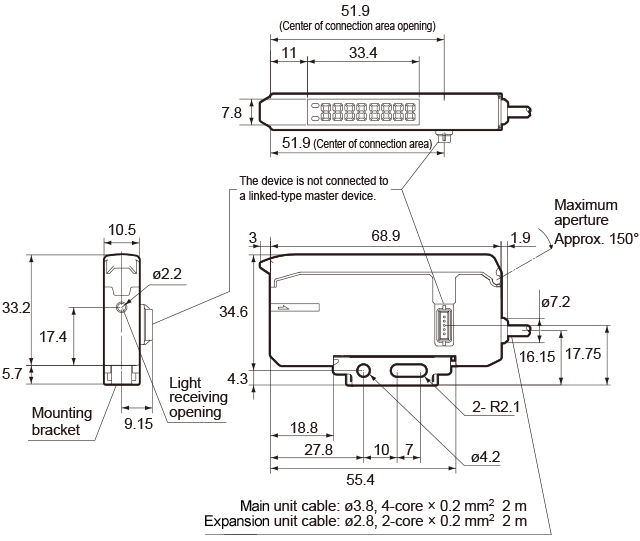

  • Inter-connection type MDF-TMN / MDF-TSN

Fiber-Optic Cables

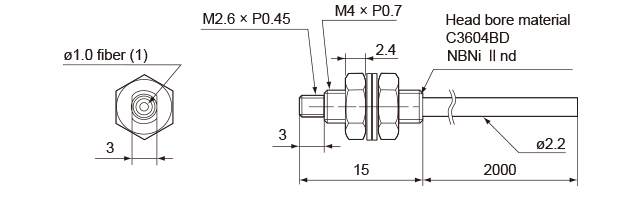

  • M4 screw NF-MT77

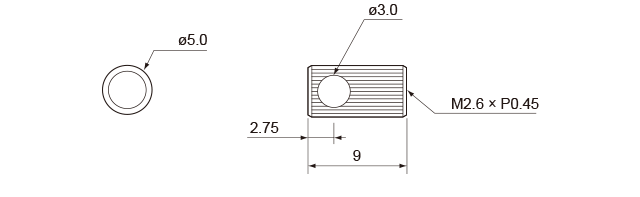

  • NF-MTA02 side-view lens Receiving angle: ±10°

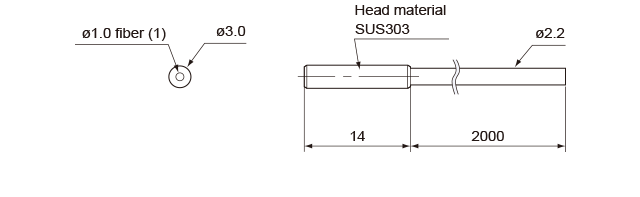

  • φ3 cylinder NF-MT05
