Potentiometer Laser BGS SensorsBGS-DL Series

DOWNLOAD

<BGS-DL Series, End of sales by December 31st, 2023>

The low cost laser BGS sensor!

  • Class 2 laser
  • 2PD (2-photo-diode) used for the receiver element
  • Low cost potentiometer type
BGS-DL Series

Output circuit diagram

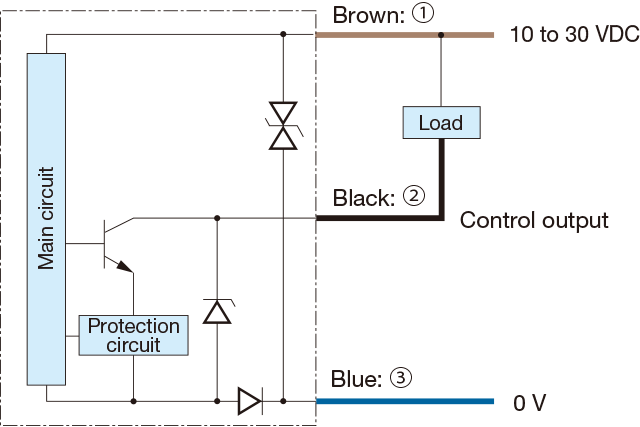

  • NPN output type

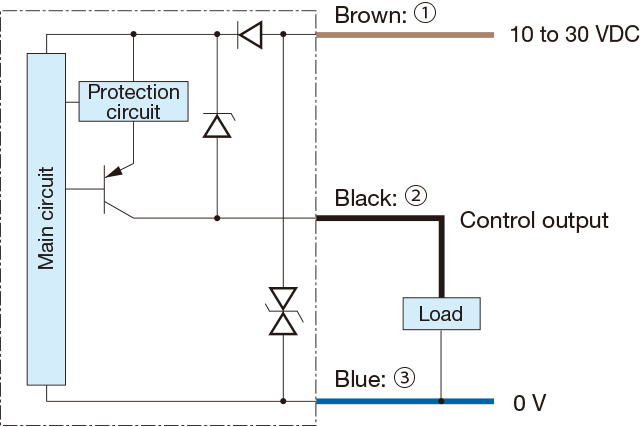

  • PNP output type

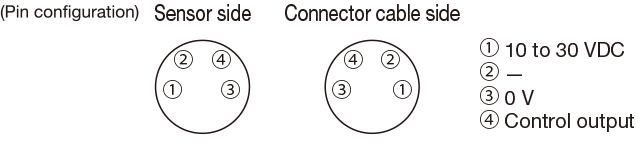

  • Connector type

  • Connecting

    ▪1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

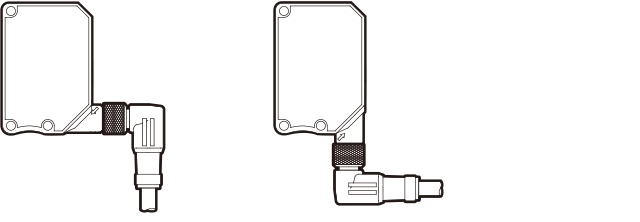

    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable.

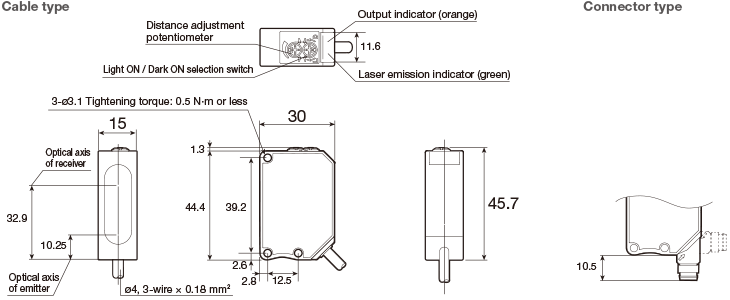

Dimensions

(Unit : mm)

Sensor

Mounting bracket

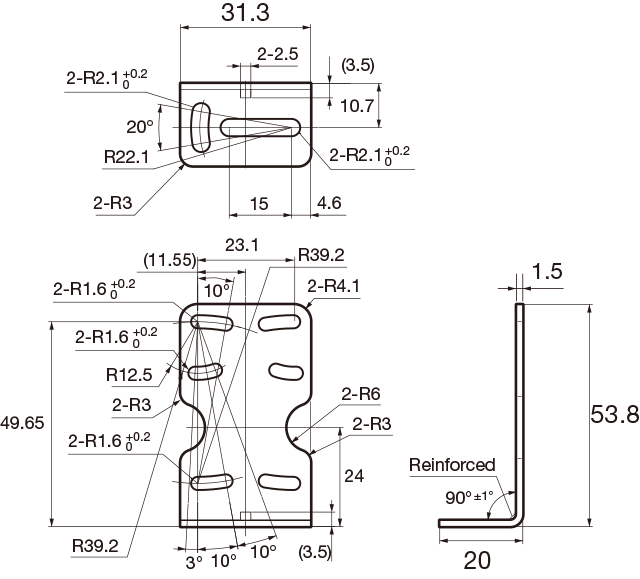

  • BEF-WK-190 (included)

Connector cable (optional)

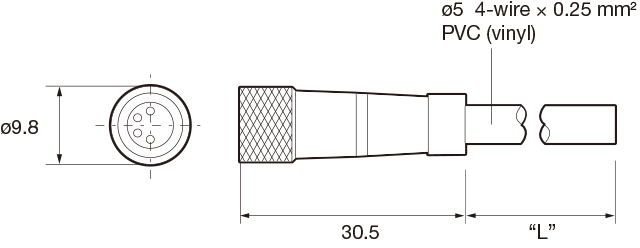

  • JCN-S, JCN-5S, JCN-10S

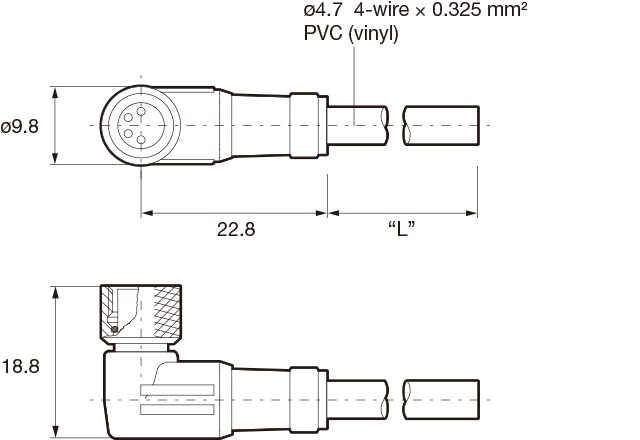

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Notes for sensor usage

  • This product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. Warning and explanation labels are affixed to the sides of the sensor.
