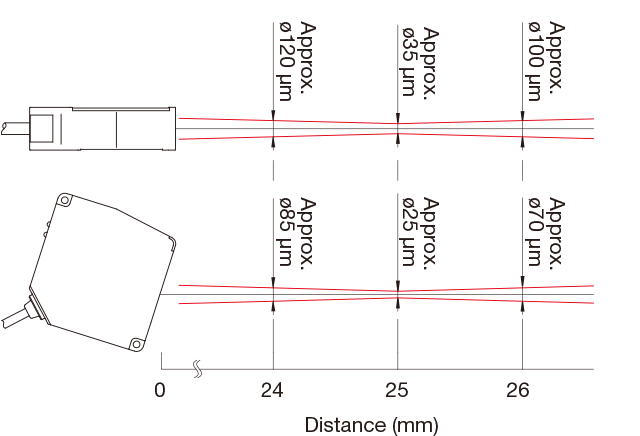

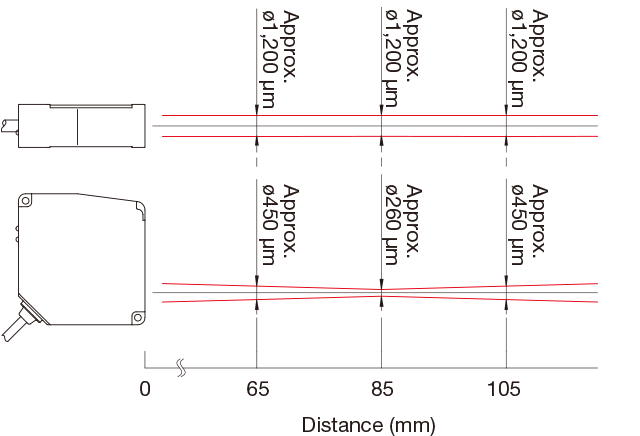

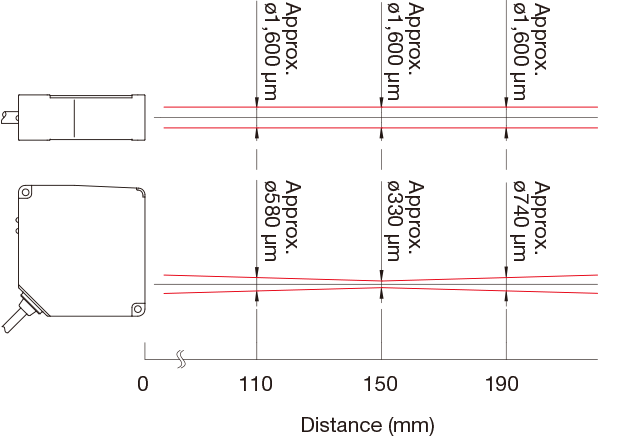

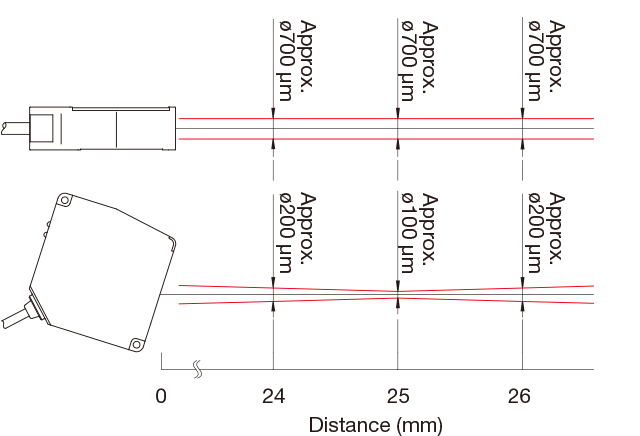

High-performance Multi-unit Laser Displacement SensorsCD5 Series

DOWNLOAD

Next level integration of accuracy, stability, and operability

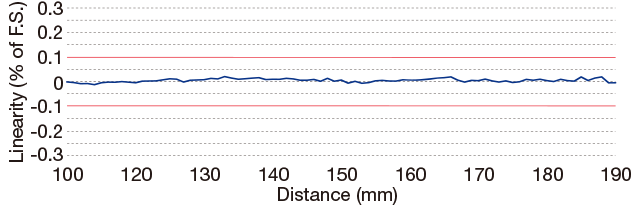

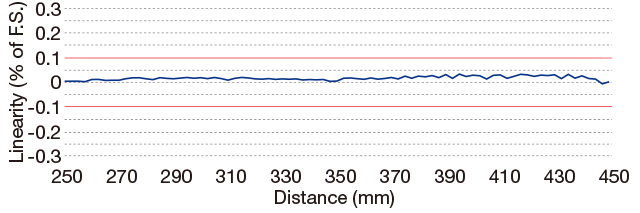

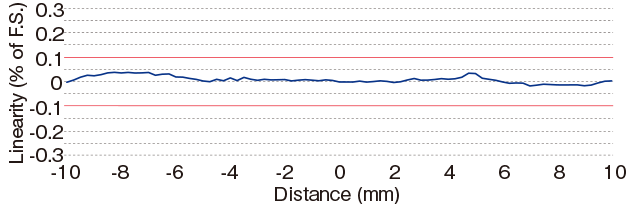

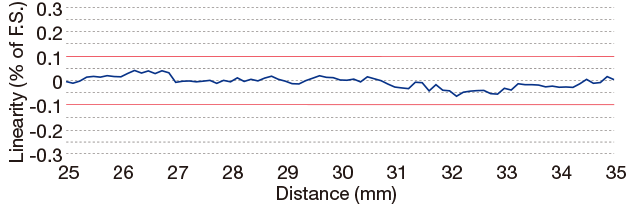

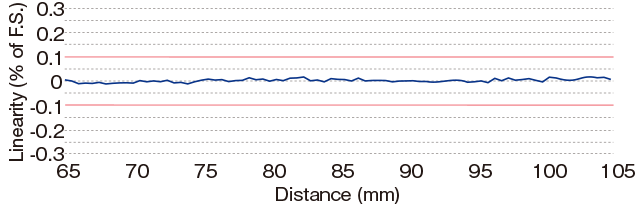

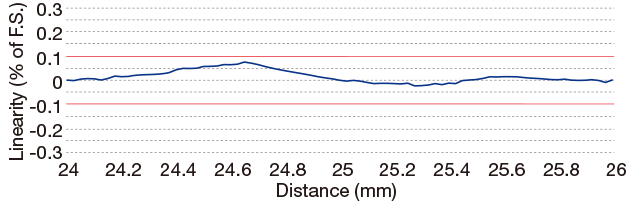

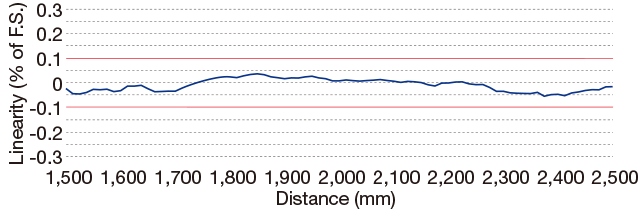

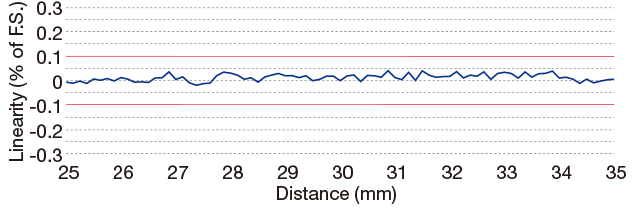

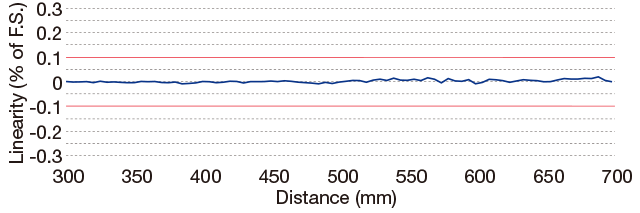

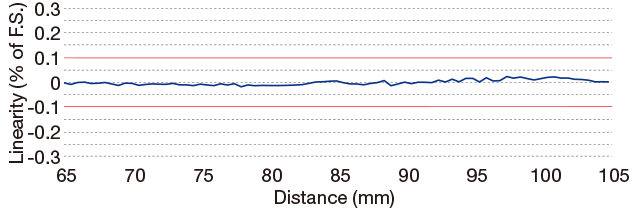

  • Highest-in-class repeat accuracy and linearity
  • Measurement is possible using only the sensor head
  • Control unit for use with Mitsubishi Electric PLC is available

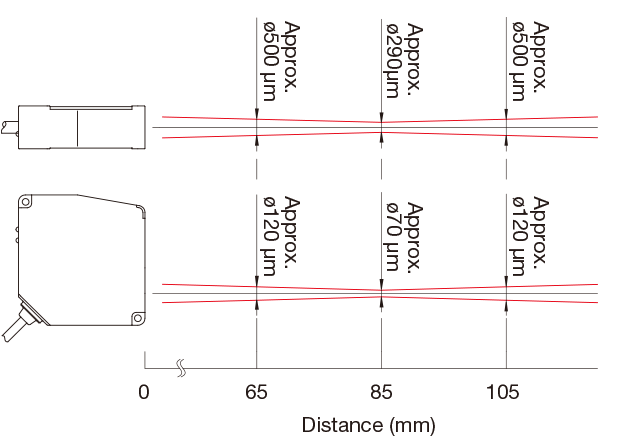

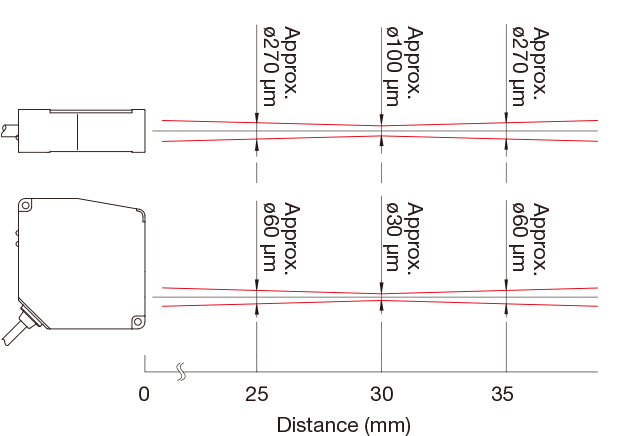

CD5 Series

Options

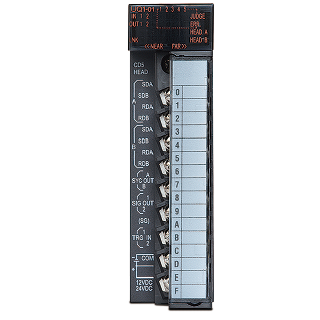

Displacement sensor control unit

  • Displacement sensor control unit

    Control unit for connecting CD5 directly to MELSEC-Q series
    *Please use DOL-1212-G☐☐M for connecting to sensor heads.

    UQ1-01
    No. of connectable sensor heads
    Max. 2 units

Connectors/Connector Cables

  • Extension cable

    Specialized extension cable for connecting sensor heads and amplifier units
    Can be extended up to 50 m by connecting multiple cables
    Robot cable specification

    DSL-1212-G02M
    2 m long
    DSL-1212-G05M
    5 m long
    DSL-1212-G10M
    10 m long
    DSL-1212-G20M
    20 m long

  • Sensor head cable

    Specialized cable for when using only sensor heads or UQ1-01
    Robot cable specification

    DOL-1212-G05M
    5 m long
    DOL-1212-G10M
    10 m long
    DOL-1212-G20M
    20 m long

  • I/O connection cable

    IEEE1284 Half-pitch 50P

    IO-EXP-AOD5
    3 m long
